F2CE0681B*B200

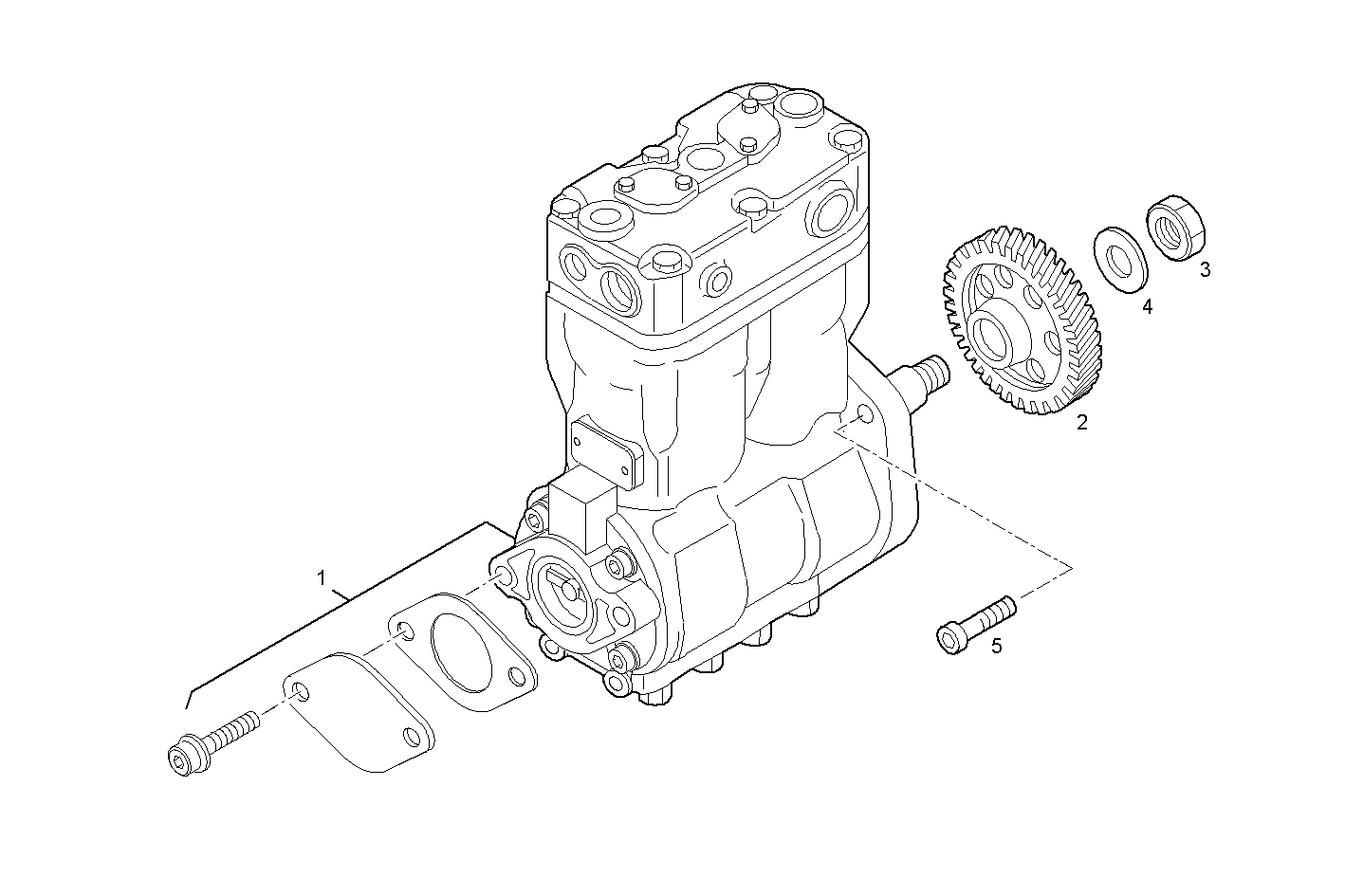

3801.017 AIR COMPRESSOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504330145 | AIR COMPRESSOR |
| 2 | 504124646 | COMP. DRIVE GEAR |
| 3 | 99471892 | HEXAGON NUT |
| 4 | 17095914 | WASHER |
| 5 | 16693924 | CYLIND-HEAD SCREW M12X35MM |
