F2CE0681B*B201

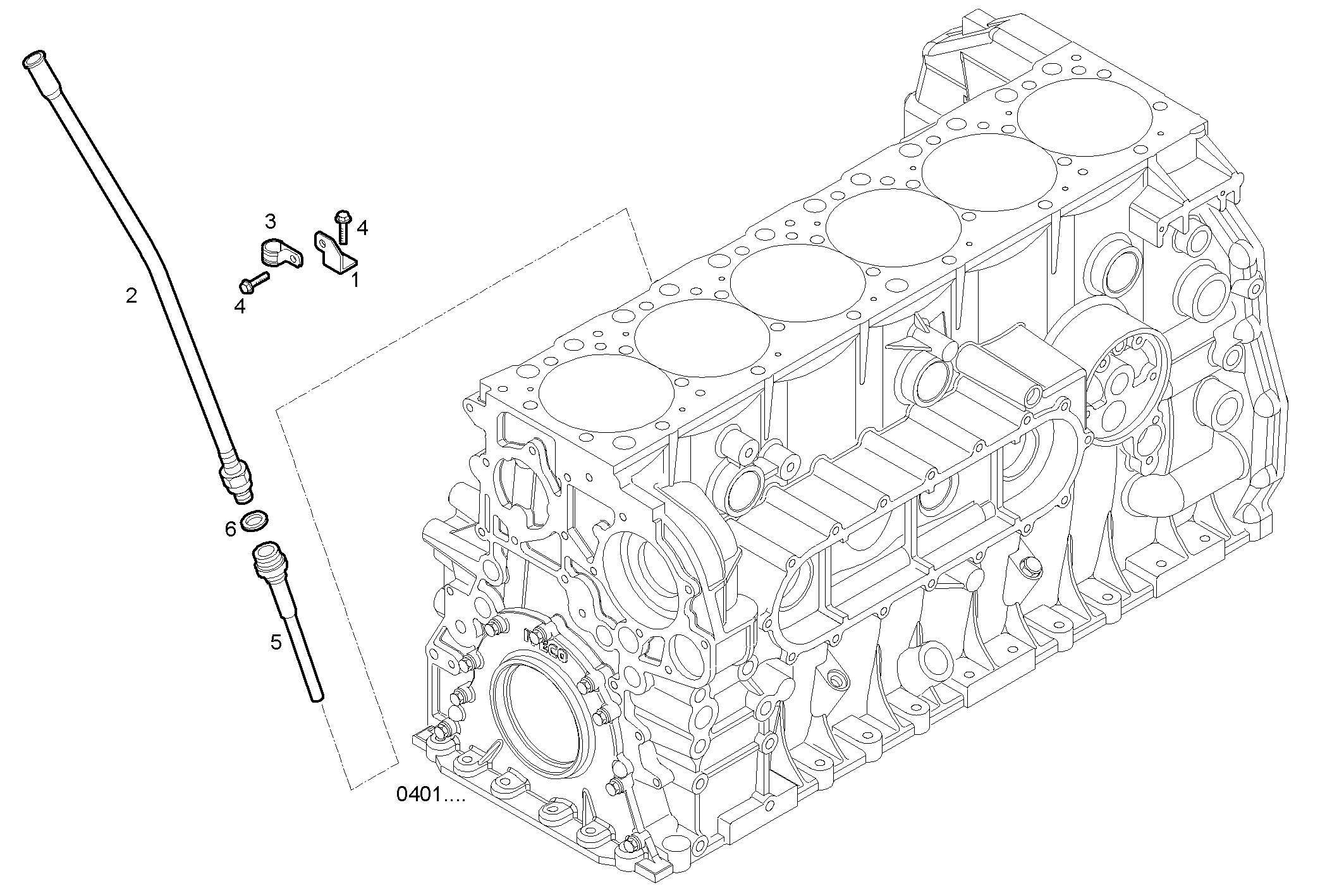

2712.012 OIL DIPSTICK PIPE
Item | Part number | Description |
---|---|---|
1 | 4791406 | RETAINER |
2 | 504219234 | OIL LEVEL TUBE |
3 | 17316899 | CLIP |
4 | 16597925 | HEXAGON BOLT M8X14 MM |
5 | 504323958 | THREADED UNION |
6 | 99489020 | SEAL GASKET Ø18X26 MM SP=1,5 MM |
