F2CE0681B*B201

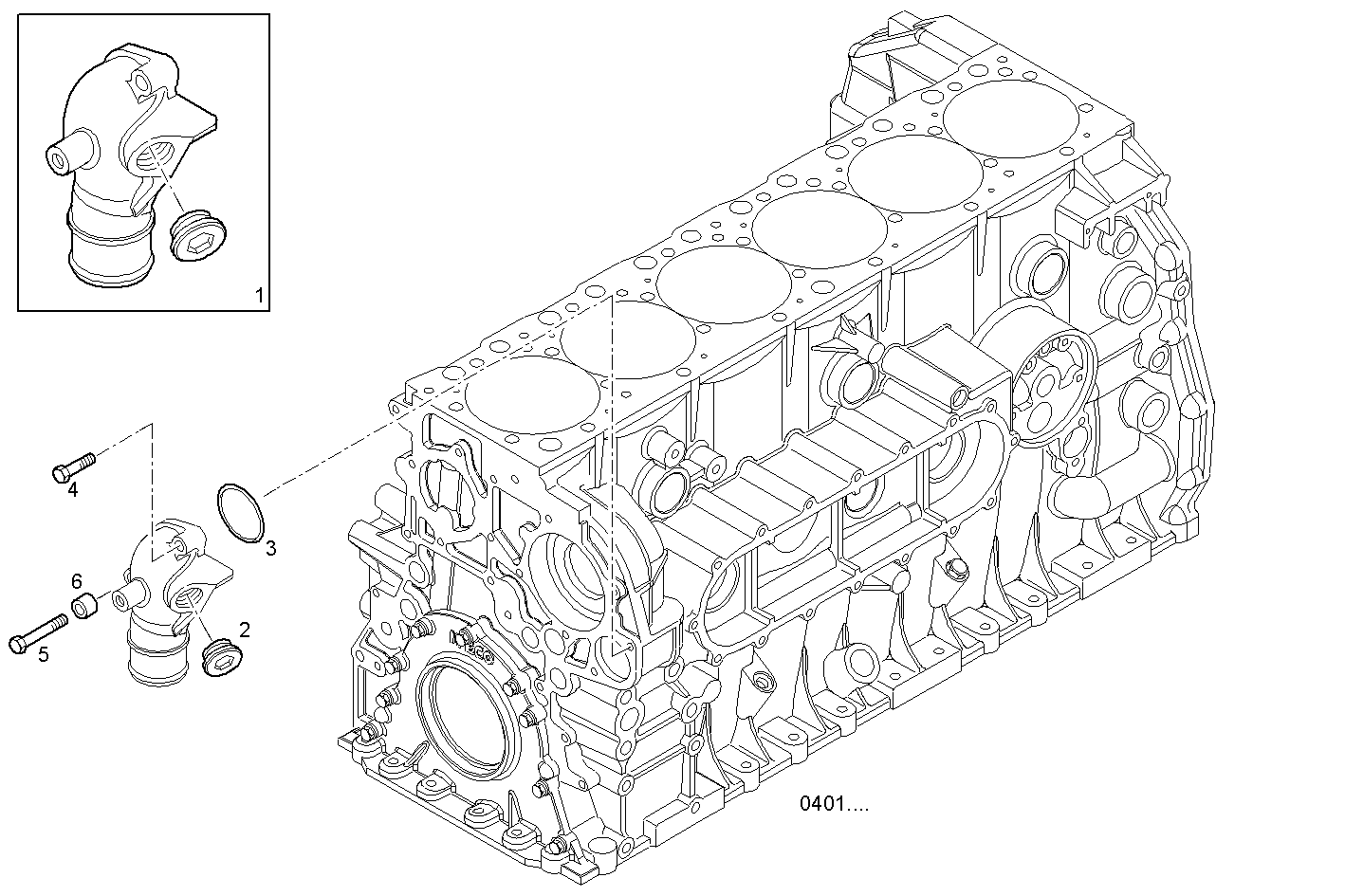

3230.075 WATER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504332006 | WATER PIPE |
| 2 | 41221517 | THREADED PLUG M30X1,5 |
| 3 | 17290081 | O-RING Ø56,74 MM SP=3,53 MM |
| 4 | 16586925 | HEXAGON BOLT M8X50 MM |
| 5 | 16592525 | HEXAGON BOLT M8X70 MM |
| 6 | 504253853 | SPACING BAR |
