F2CE9684C*E013

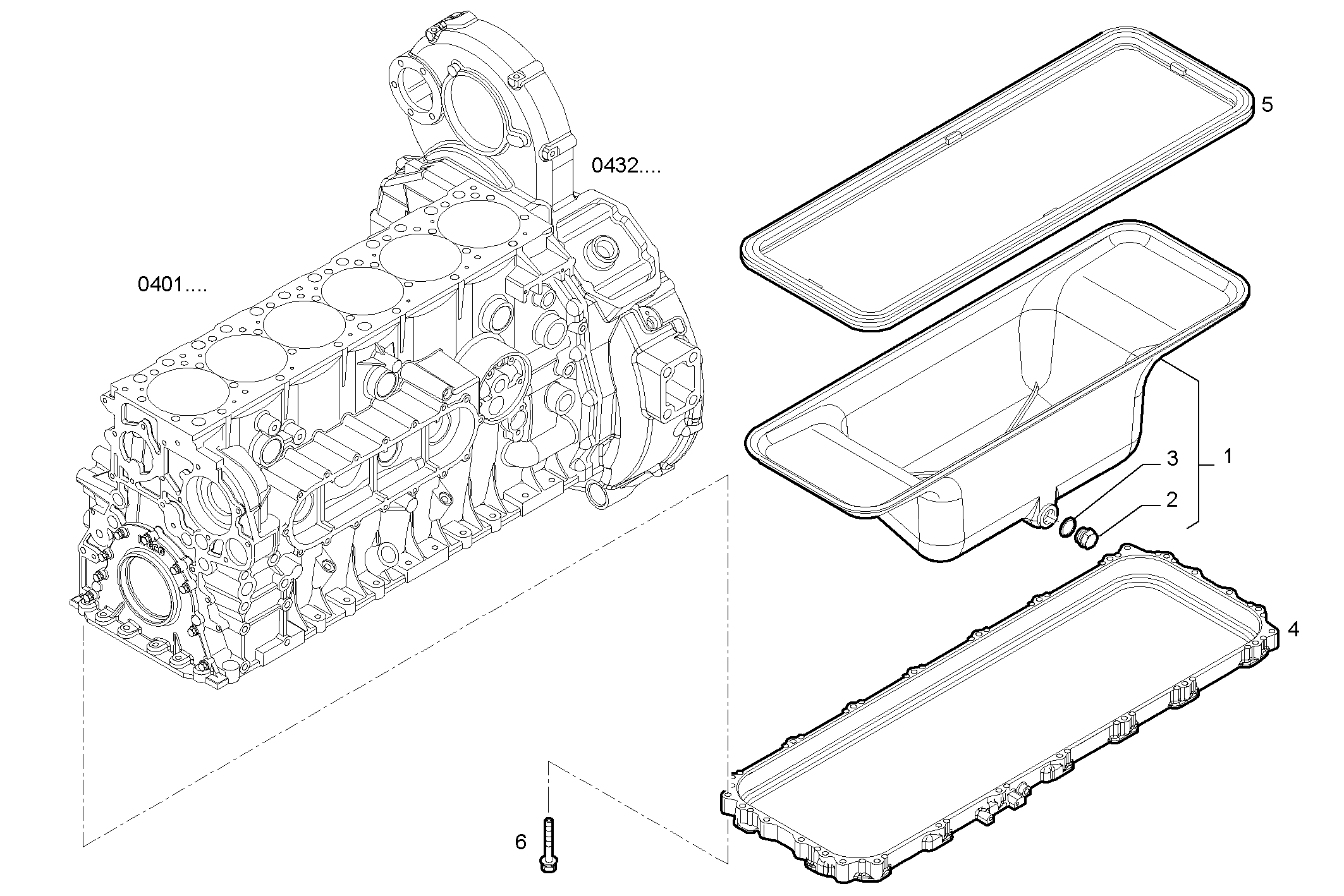

0420.235 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504143834 | OIL SUMP |
| 2 | 16992611 | THREADED PLUG M22X1,5 |
| 3 | 16508460 | WASHER 22x27x1,5 |
| 4 | 504143828 | SPACING BAR |
| 5 | 504125618 | OIL SUMP GASKET |
| 6 | 16587525 | HEXAGON BOLT M10X45 MM |
