F2CE9684C*E013

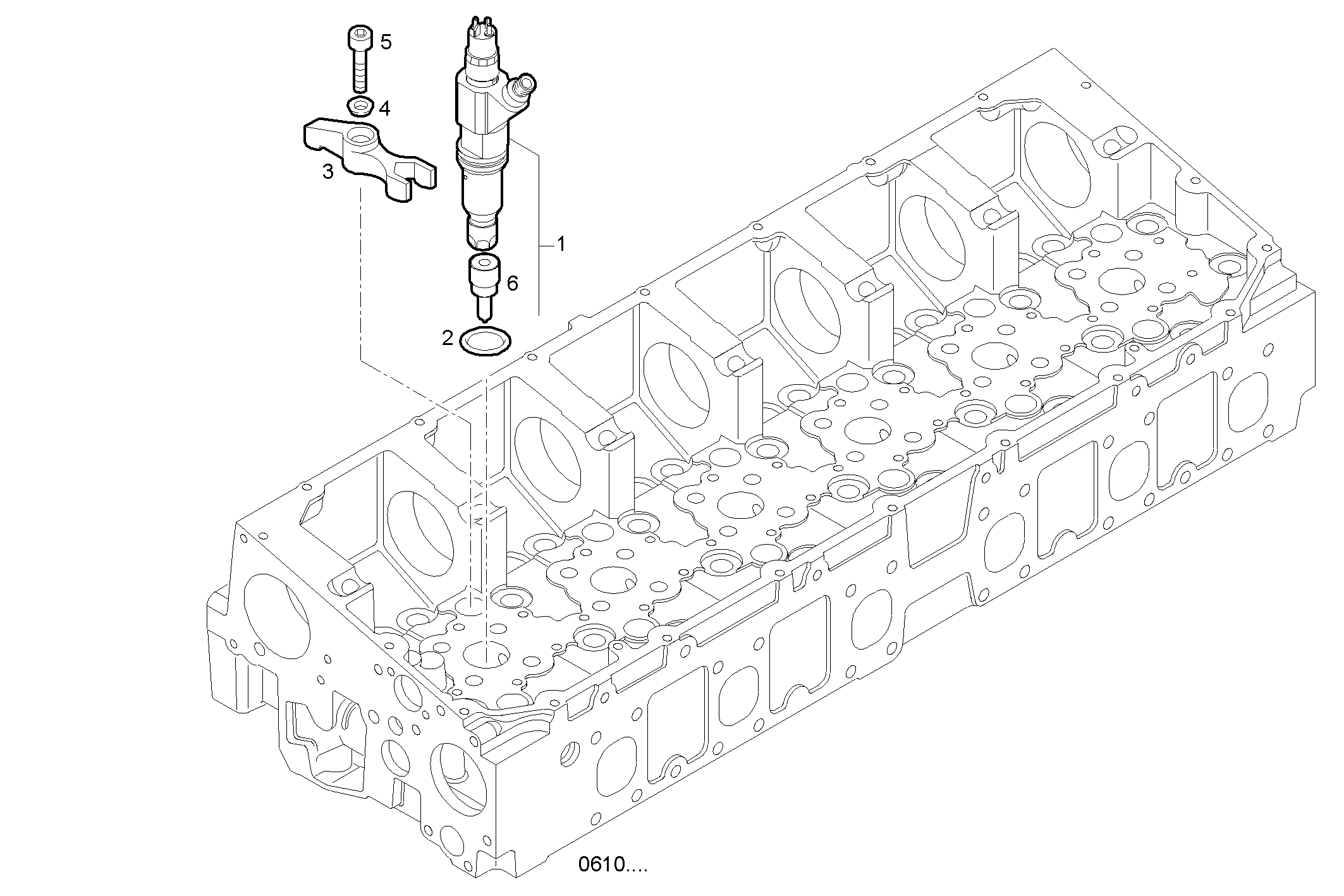

1480.015 INJECTORS

Iveco/FPT INJECTORS

Item Part number Description
1 504194432 ELECTRO INJECTOR
2 17288881 O-RING Ø28,1 MM SP=3,5 MM
3 504127841 FASTENING BRACKET
4 4700162 WASHER Ø11,5 MM
5 500356756 CYLIND-HEAD SCREW M10X1,5X40 MM
6 504215322 FUEL NOZZLE
