F2CE9684E*E002

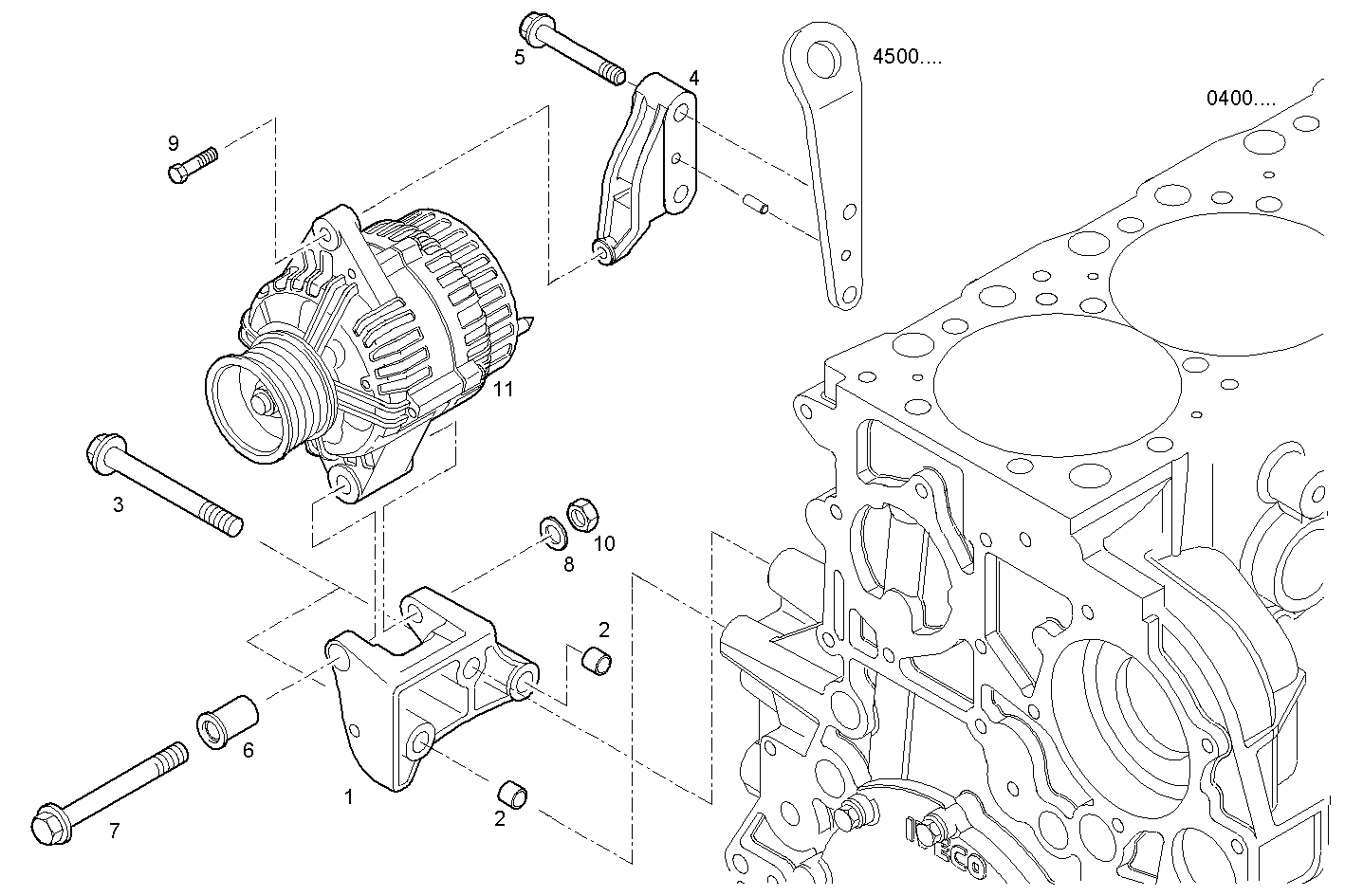

4000.188 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504201385 | GENERATOR SUPPORT LOWER |
| 2 | 98405462 | DOWEL PIN Ø10,2 MM |
| 3 | 16676834 | HEXAGON BOLT M10X70 MM |
| 4 | 504198990 | GENERATOR SUPPORT UPPER |
| 5 | 16588624 | HEXAGON BOLT M12x60 MM (8.8) |
| 6 | 99484032 | SPACER BUSH |
| 7 | 16599125 | HEXAGON BOLT M10X130 MM |
| 8 | 17097124 | WASHER 10x21 |
| 9 | 16586625 | HEXAGON BOLT M8X35 MM |
| 10 | 17038125 | NUT M10 |
| 11 | 504196607 | ALTERNATOR |
