F2CE9684L*E005

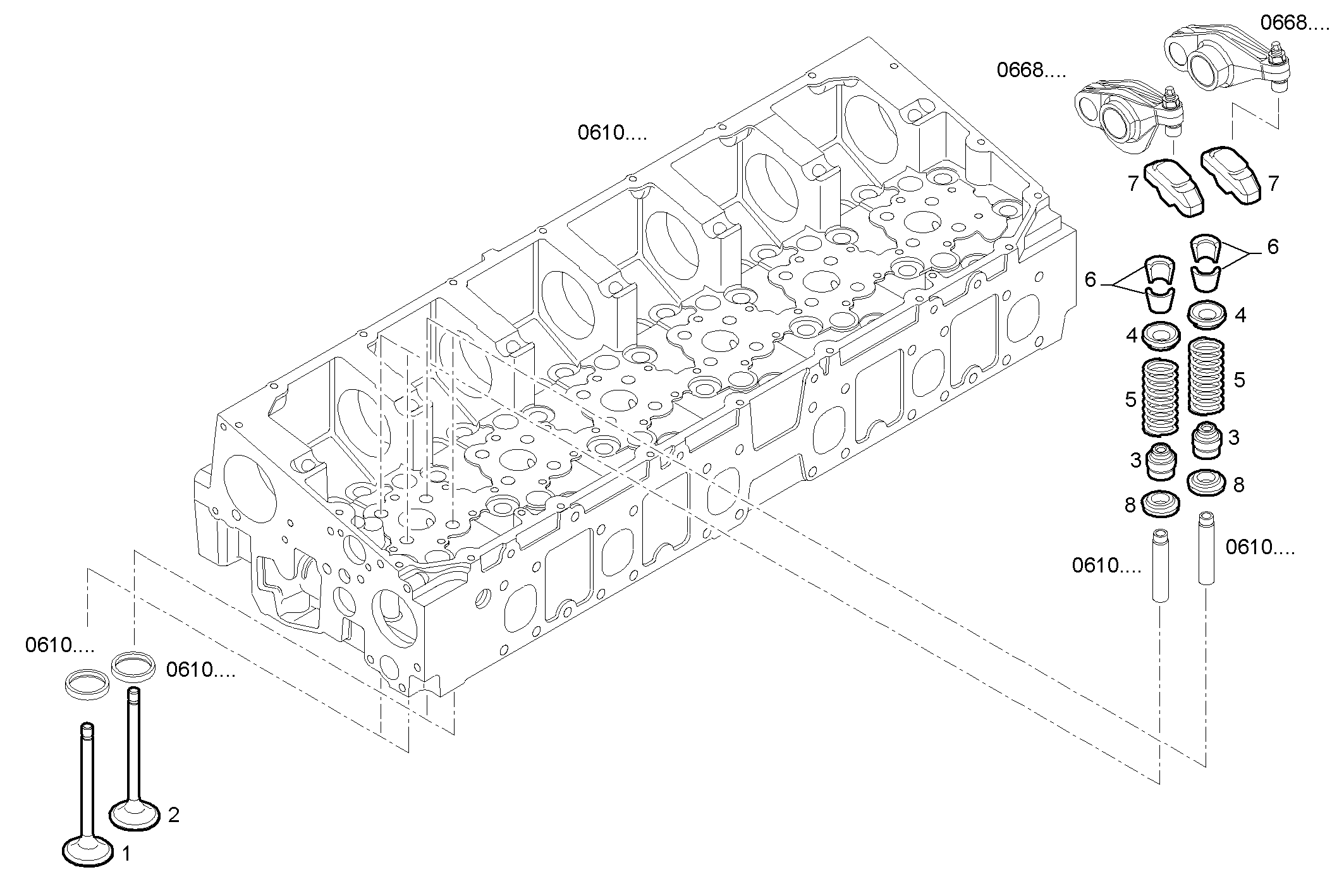

0613.004 ASSEMBLY VALVE

Iveco/FPT ASSEMBLY VALVE

Item Part number Description
1 504127798 INLET VALVE
2 504127799 EXHAUST VALVE
3 504129182 SPRING CAP BOTTOM
4 504127797 SPRING CAP TOP
5 504125776 ENGINE VALV.SPRING
6 98499819 VALVE CONE
7 504131444 VALVE BRIDGE
8 40101573 CAP
