F2CE9684M*E006

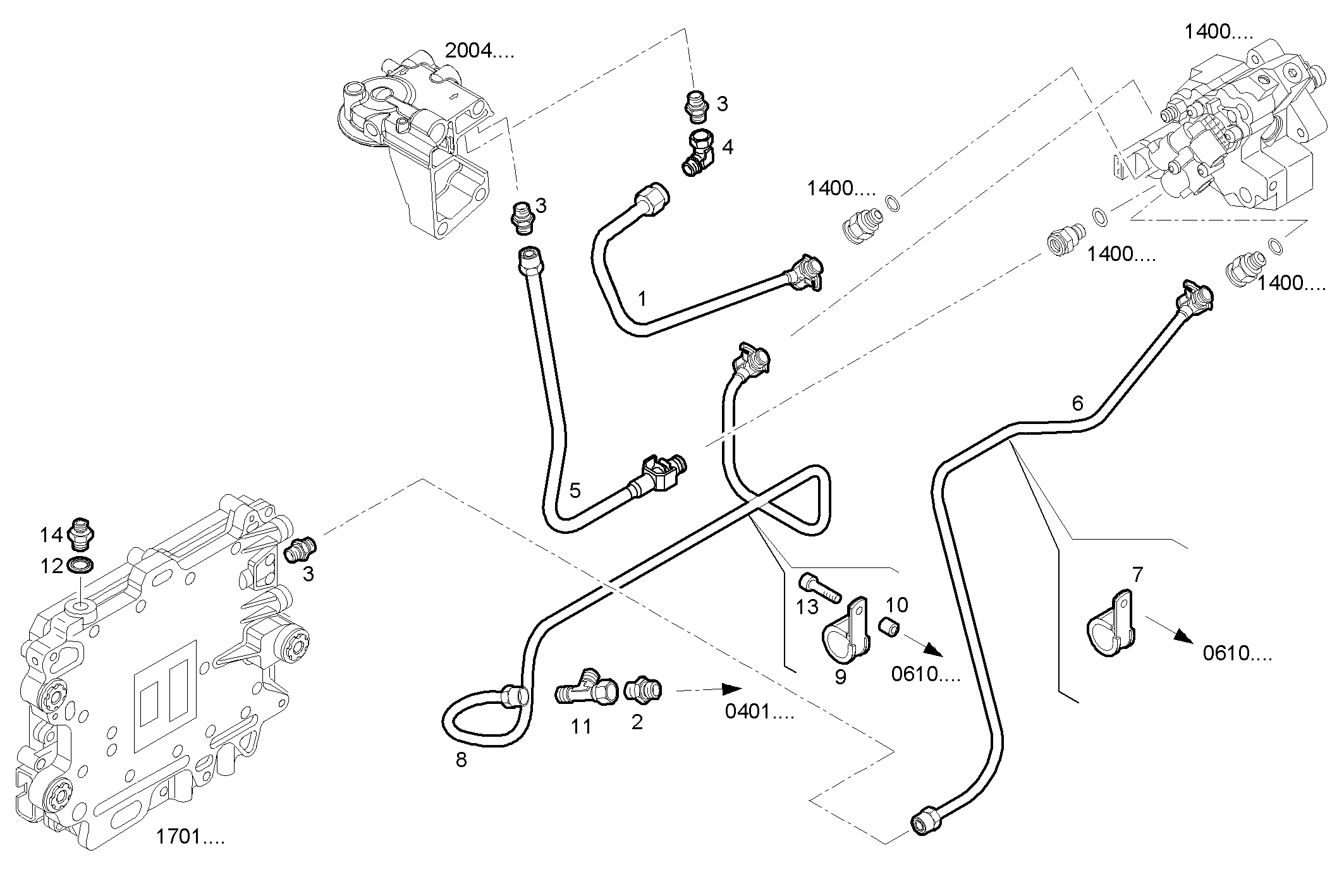

2030.313 FUEL LINES
Item | Part number | Description |
---|---|---|
1 | 504127214 | FUEL LINE ASSY |
2 | 41034988 | THREADED UNION M12X1,5/M14X1,5 |
3 | 504081275 | THREADED UNION |
4 | 16503914 | ELBOW COUPLING M14X1,5 |
5 | 504160371 | FUEL LINE ASSY |
6 | 504220976 | FUEL LINE |
7 | 17316399 | FASTENING BRACKET |
8 | 504181184 | FUEL LINE ASSY |
9 | 500391414 | FASTENING BRACKET |
10 | 8580153 | SPACING BAR |
11 | 16504614 | T-COUPLING M14X1,5 |
12 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
13 | 16692124 | CYLIND-HEAD SCREW M10X25 MM (8.8) |
14 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
