F2CE9684N*E005

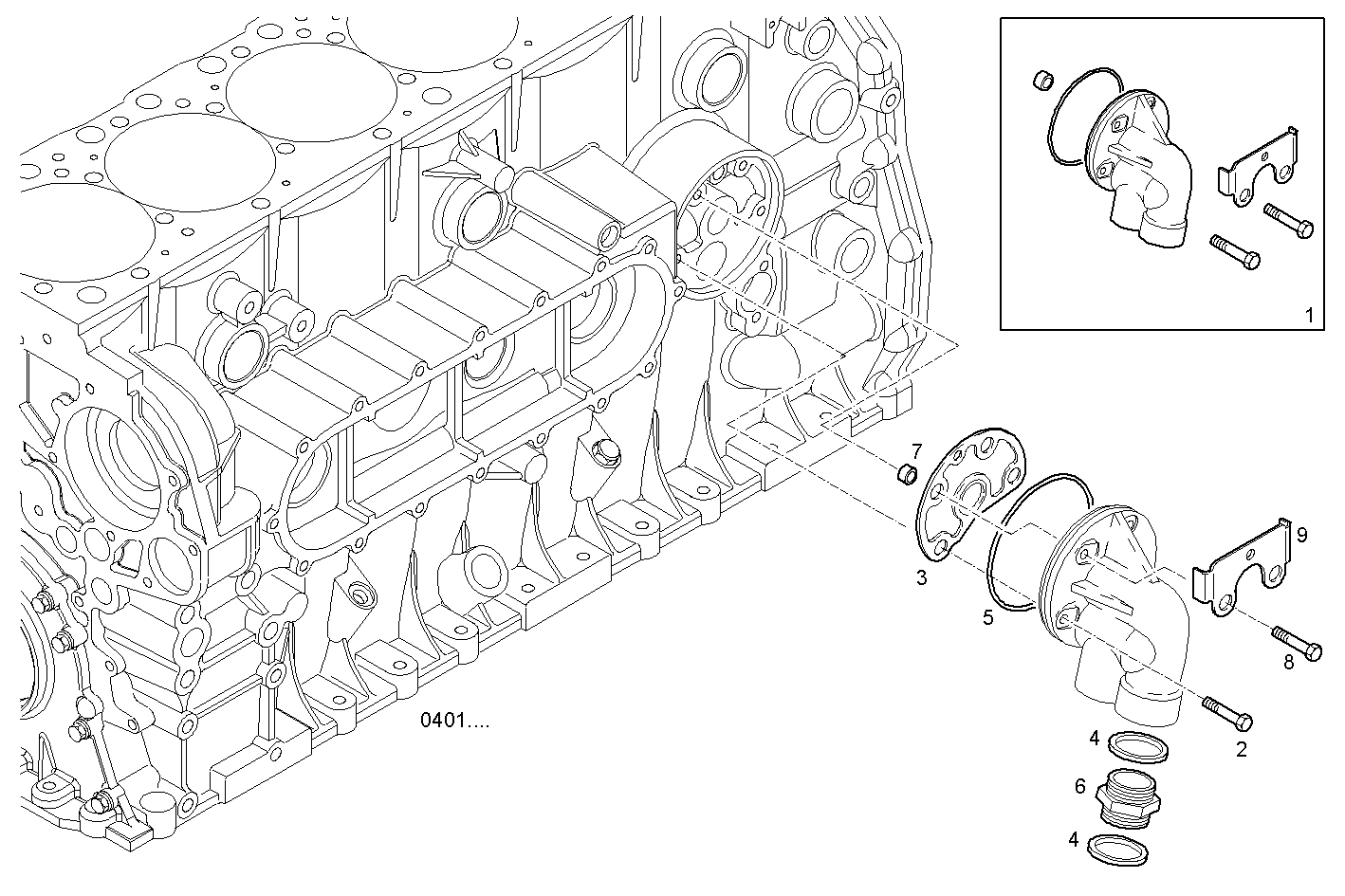

3022.005 HOUSING OIL
| Item | Part number | Description |
|---|---|---|
| 1 | 504190449 | FILTER SUPPORT |
| 2 | 16673835 | HEXAGON BOLT M8X30 MM |
| 3 | 504147366 | FLAT ENGINE GASKET |
| 4 | 99434480 | SEAL GASKET Ø30X40 MM |
| 5 | 17291881 | O-RING Ø113,89 MM SP=3,53 |
| 6 | 504037176 | THREADED UNION M30X2 |
| 7 | 17816414 | SPACING BAR Ø8,5X18 MM SP=20 MM |
| 8 | 16592224 | HEXAGON BOLT M8X55 MM |
| 9 | 504213767 | RETAINER |
