F32AM1A.S500

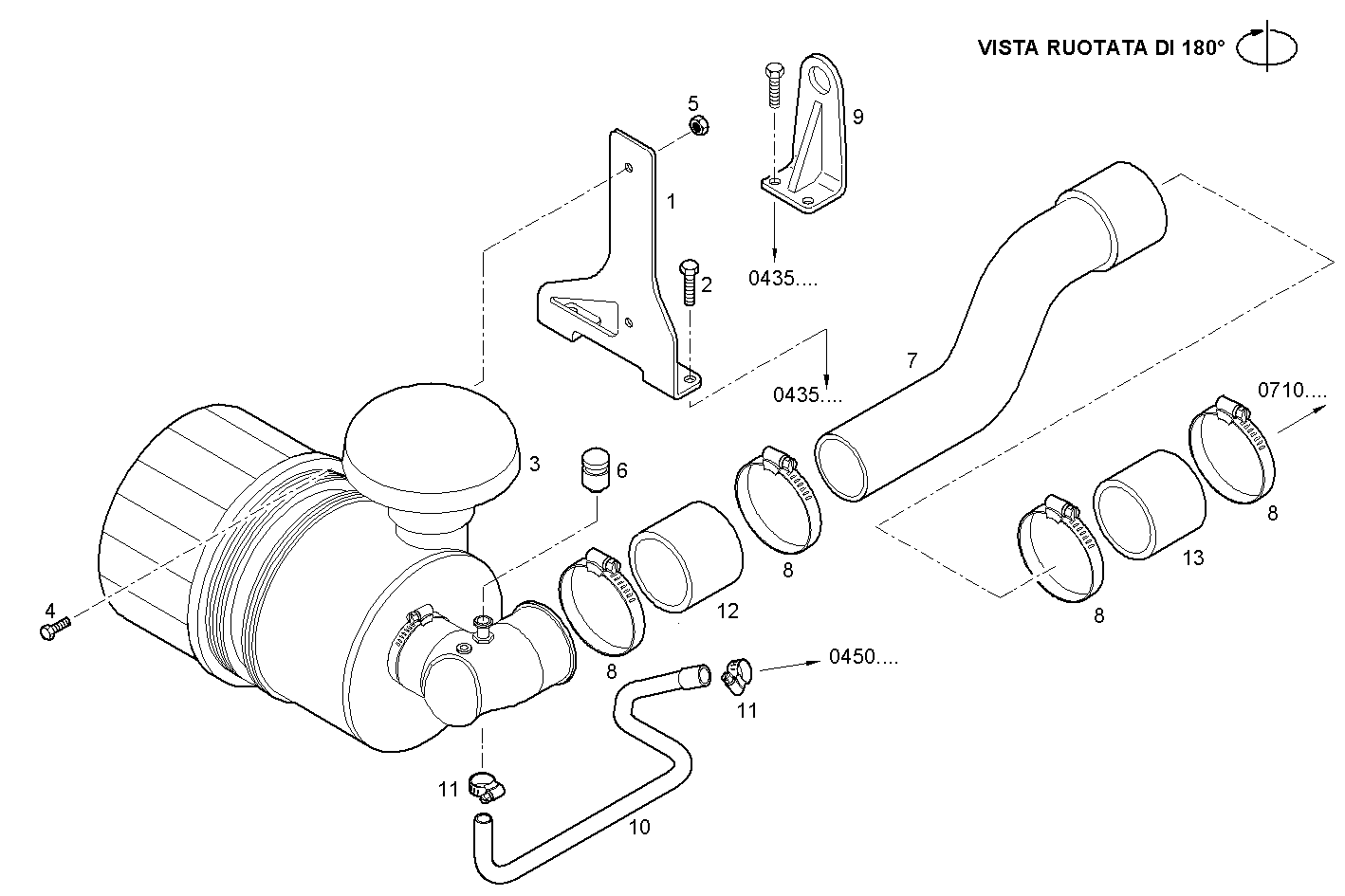

A21210550 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8050866 | FILTER SUPPORT |
| 2 | 16588025 | HEXAGON BOLT M12X30 MM |
| 3 | 8050850 | AIR CLEANER |
| 4 | 16673835 | HEXAGON BOLT M8X30 MM |
| 5 | 17044725 | HEXAGON NUT M8 |
| 6 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
| 7 | 8050992 | AIR PIPE/DUCT |
| 8 | 17765192 | HOSE CLIP Ø70-90 MM |
| 9 | 8049260 | HOOK |
| 10 | 8050867 | RUBBER SLEEVE |
| 11 | 17764594 | HOSE CLIP |
| 12 | 8110411 | RUBBER SLEEVE |
| 13 | 8108782 | RUBBER SLEEVE |
