F32MNAA85.00

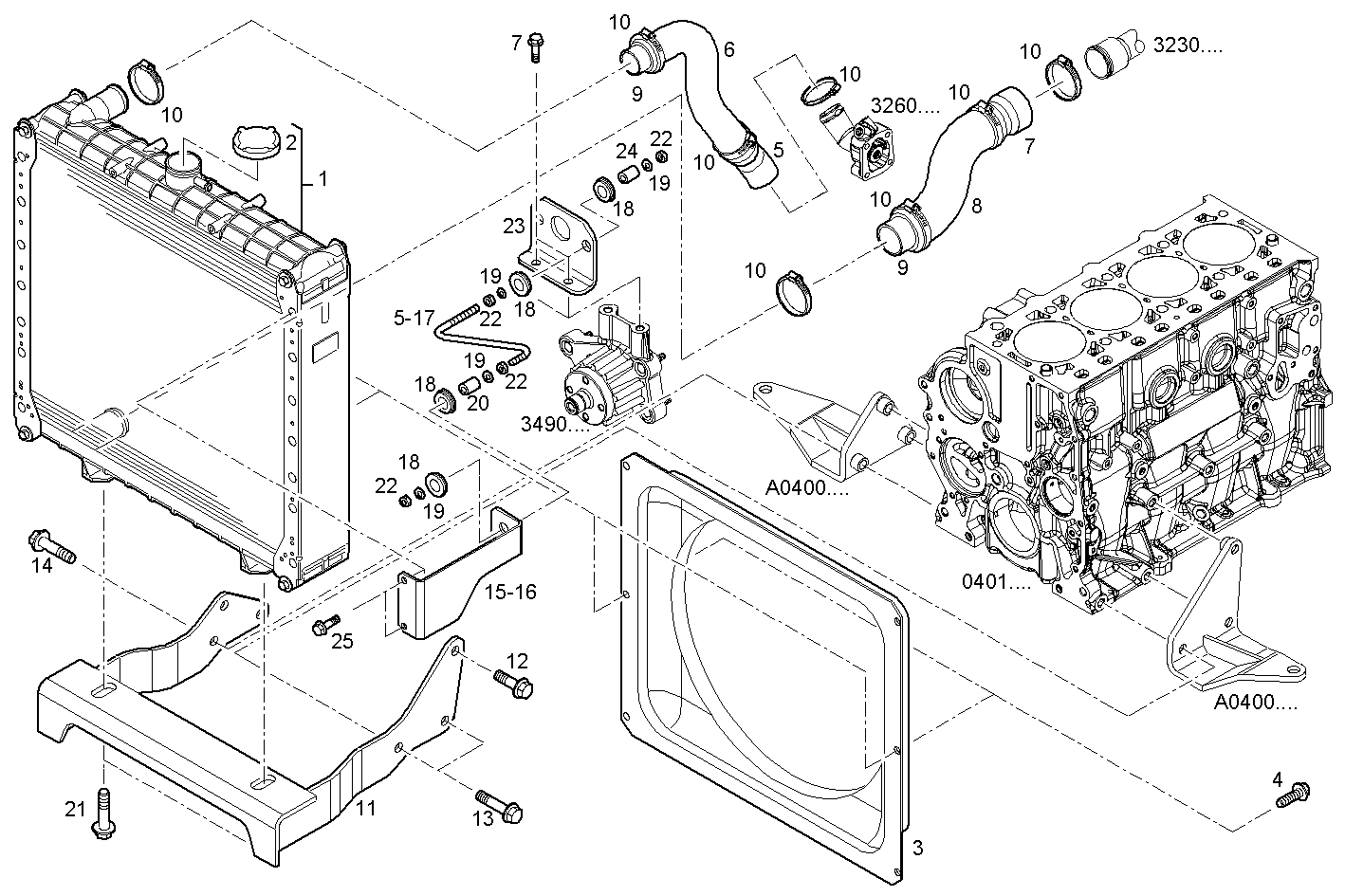

A22010535 RADIATOR

Iveco/FPT RADIATOR

Item Part number Description
1 8049316 WATER RADIATOR ASSY
2 87558952 RADIATOR PLUG
3 8037087 AIR HOOD
4 16597925 HEXAGON BOLT M8X14 MM
5 8050960 TIE ROD RIGHT
6 8051802 WATER HOSE
7 16600224 HEXAGON BOLT M8X1,25X18 MM
8 8050957 WATER PIPE
9 8110724 RUBBER SLEEVE
10 17764892 PIPE CLIP Ø40-60 MM
11 8050954 SUPPORT
12 16678135 HEXAGON BOLT M12X45 MM
13 16588125 HEXAGON BOLT M12X35 MM
14 16678235 HEXAGON BOLT M12X50 MM
15 8049381 FASTENING BRACKET
16 8049382 FASTENING BRACKET
17 8050959 TIE ROD LEFT
18 741569 RUBBER LUG
19 741570 WASHER Ø10X17 MM SP=2,3
20 741571 SPACING BAR Ø10X17 MM SP=2,3
21 11343721 HEXAGON BOLT M10X65 MM
22 17044921 HEXAGON NUT M12
23 8048115 HOOK
24 8108634 SPACING BAR
