F32MNSA85.00A001

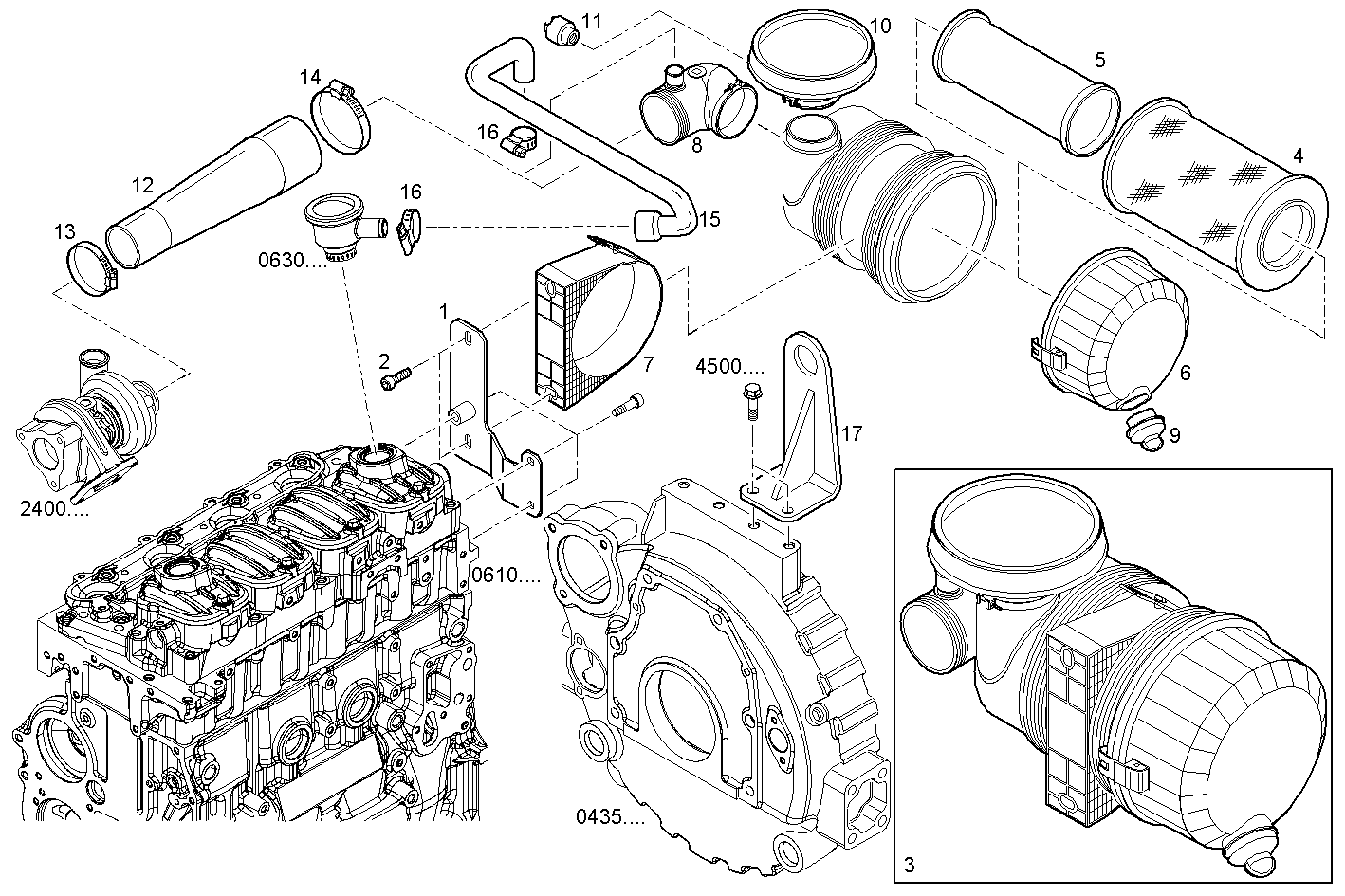

2210.021 AIR CLEANER
Item | Part number | Description |
---|---|---|
1 | 8047568 | RETAINER |
2 | 16690724 | CYLIND-HEAD SCREW M8X30 MM |
3 | 8047552 | AIR CLEANER |
4 | 8050800 | AIR FILTER ELEMENT PRIMARY |
5 | 8050801 | AIR FILTER ELEMENT SECONDARY |
6 | 8097648 | FILTER COVER |
7 | 8097646 | CLIP |
8 | 8097647 | AIR PIPE/DUCT |
9 | 8092459 | VALVE |
10 | 8014418 | COVER |
11 | 8027423 | CHOCKED FILTER INDIC. |
12 | 8047712 | FILTER HOSE |
13 | 17764892 | PIPE CLIP Ø40-60 MM |
14 | 17764991 | CLIP Ø50/70 MM |
15 | 8050167 | RUBBER HOSE |
16 | 18088493 | CLIP |
17 | 8048662 | HOOK |
