F32MNSA85.00A001

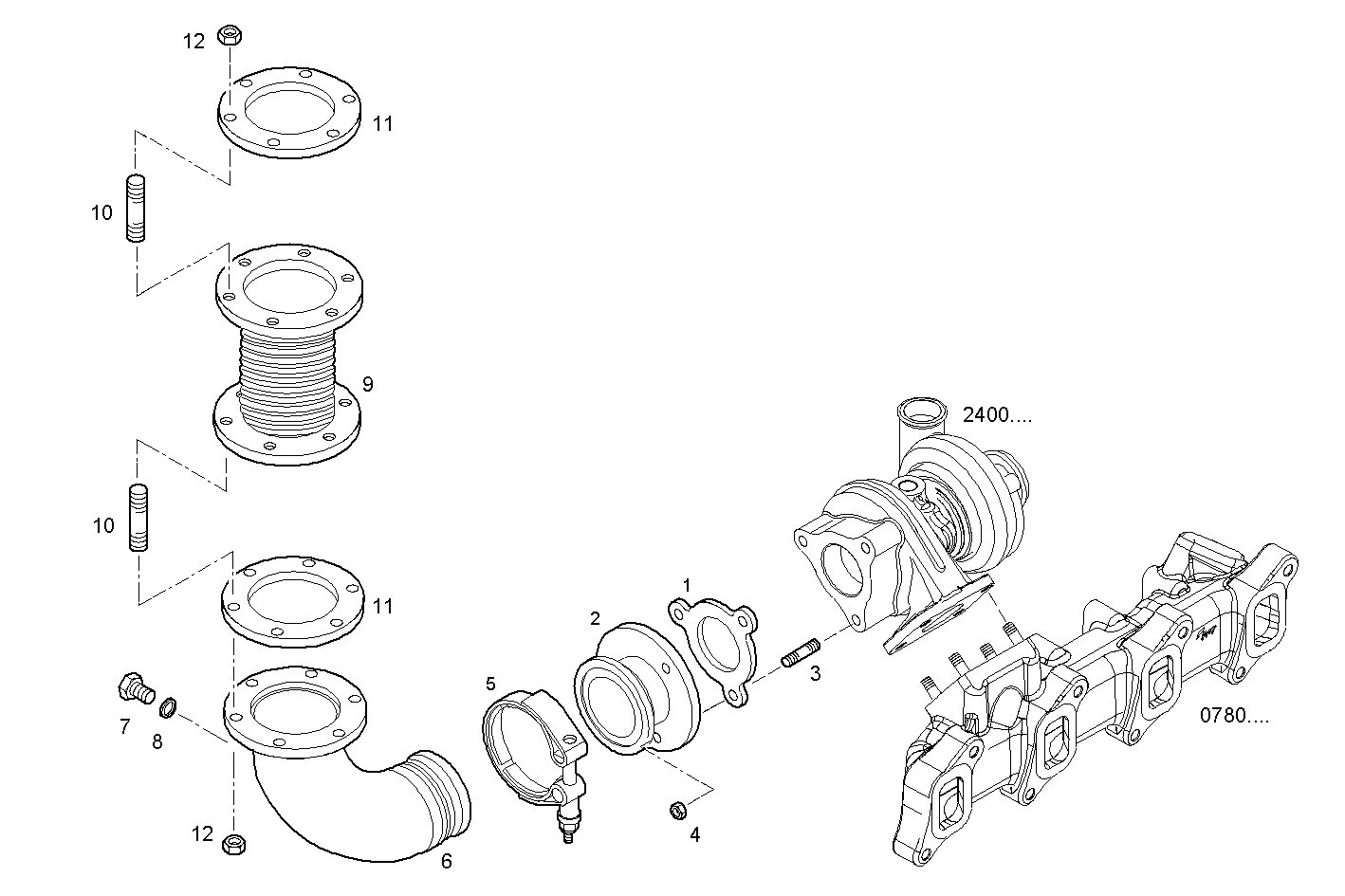

2423.039 AIR LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 504050114 | FLAT ENGINE GASKET |
| 2 | 8048064 | EXHAUST ELBOW |
| 3 | 98492637 | STUD M8X12X27 MM |
| 4 | 17044721 | HEXAGON NUT M8X1,25 |
| 5 | 504031827 | CLIP |
| 6 | 8033835 | EXHAUST ELBOW |
| 7 | 16992211 | THREADED PLUG M12X1,5 |
| 8 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 9 | 4935378 | EXHAUST BELLOWS |
| 10 | 13516921 | STUD M8X12X22 MM |
| 11 | 8009606 | GASKET |
| 12 | 17037921 | HEXAGON NUT M8X1,25 |
