F32MNSA85.00A001

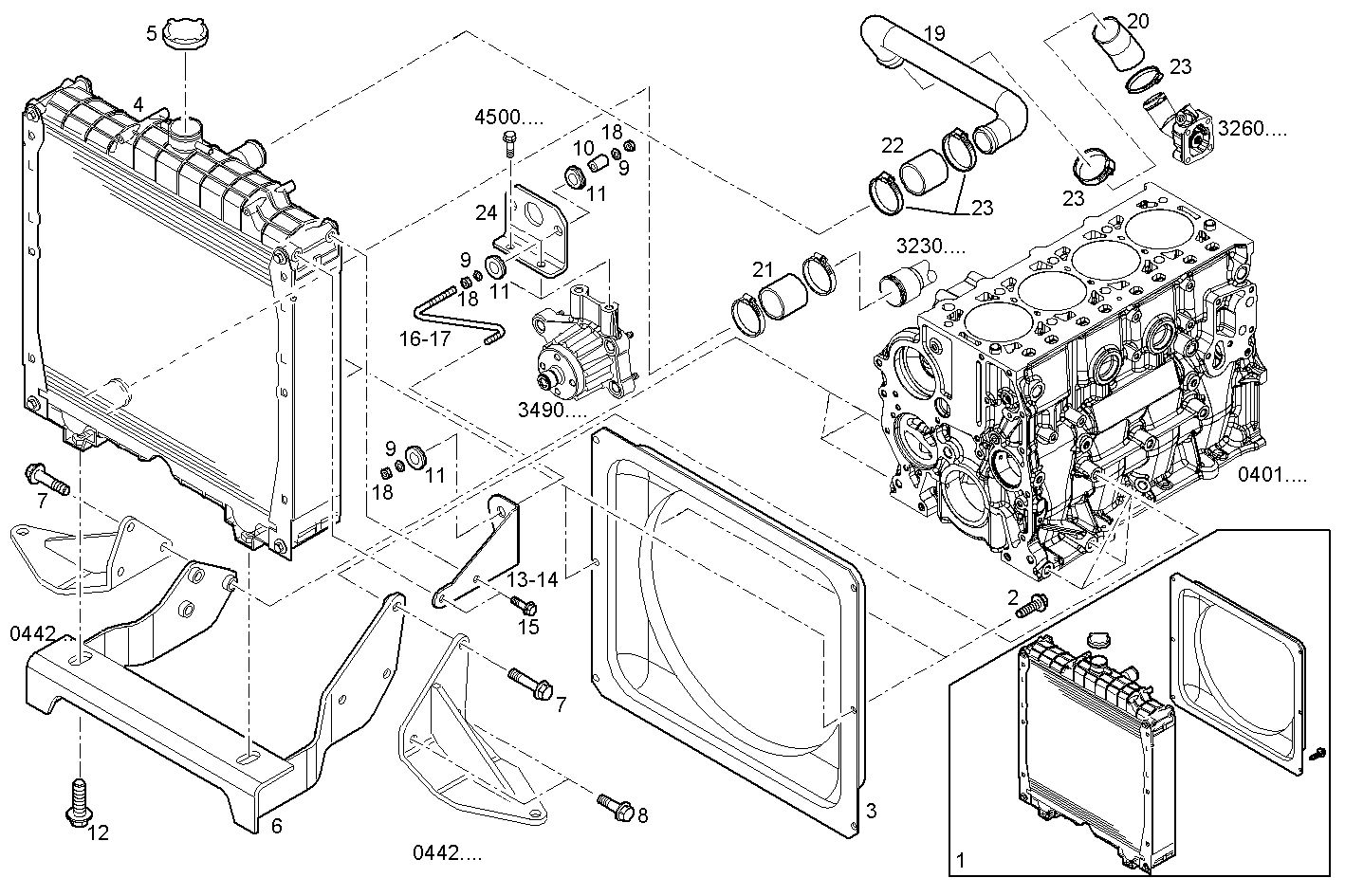

3300.015 RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8037596 | WATER RADIATOR |
| 2 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
| 3 | 8037087 | AIR HOOD |
| 4 | 8036838 | WATER RADIATOR |
| 5 | 4999682 | RADIATOR PLUG |
| 6 | 8050101 | SUPPORT |
| 7 | 16678135 | HEXAGON BOLT M12X45 MM |
| 8 | 16588125 | HEXAGON BOLT M12X35 MM |
| 9 | 741570 | WASHER Ø10X17 MM SP=2,3 |
| 10 | 741571 | SPACING BAR Ø10X17 MM SP=2,3 |
| 11 | 741569 | RUBBER LUG |
| 12 | 16676834 | HEXAGON BOLT M10X70 MM |
| 13 | 8037602 | FASTENING BRACKET RIGHT |
| 14 | 8037605 | FASTENING BRACKET LEFT |
| 15 | 16673735 | HEXAGON BOLT M8X25 MM |
| 16 | 8037609 | TIE ROD LEFT |
| 17 | 8037608 | TIE ROD RIGHT |
| 18 | 17044921 | HEXAGON NUT M12 |
| 19 | 8050157 | WATER PIPE |
| 20 | 98434881 | WATER HOSE |
| 21 | 8110724 | RUBBER SLEEVE |
| 22 | 8050155 | WATER HOSE |
| 23 | 17764892 | PIPE CLIP Ø40-60 MM |
| 24 | 8048115 | HOOK |
