F32MNSA85.00A001

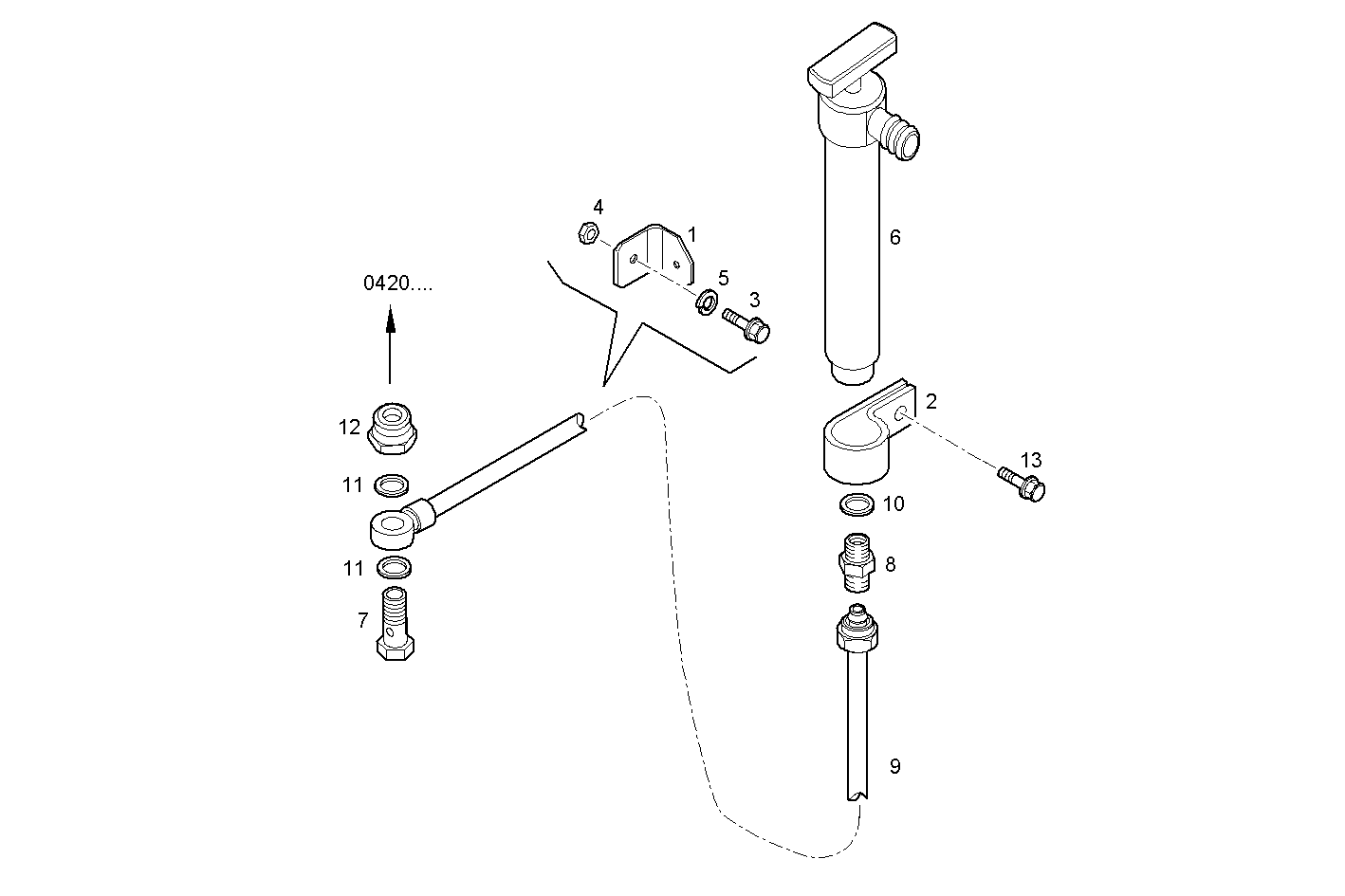

5510.005 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8035298 | RETAINER [UP TO 17/04/09] |
| 2 | 8035543 | FASTENING BRACKET |
| 3 | 16605625 | HEXAGON BOLT M8X25 |
| 4 | 17037921 | HEXAGON NUT M8X1,25 |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 8019921 | HAND PUMP |
| 7 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 8 | 16501611 | PIPE SOCKET M14X1,5 |
| 9 | 8019054 | HOSE L=300 MM |
| 10 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 11 | 98474308 | SEAL GASKET Ø14X22 MM |
| 12 | 4927760 | PIPE SOCKET M22X1,5 |
| 13 | 16677735 | HEXAGON BOLT M12X25 MM |
