F32MNSX00.00A800

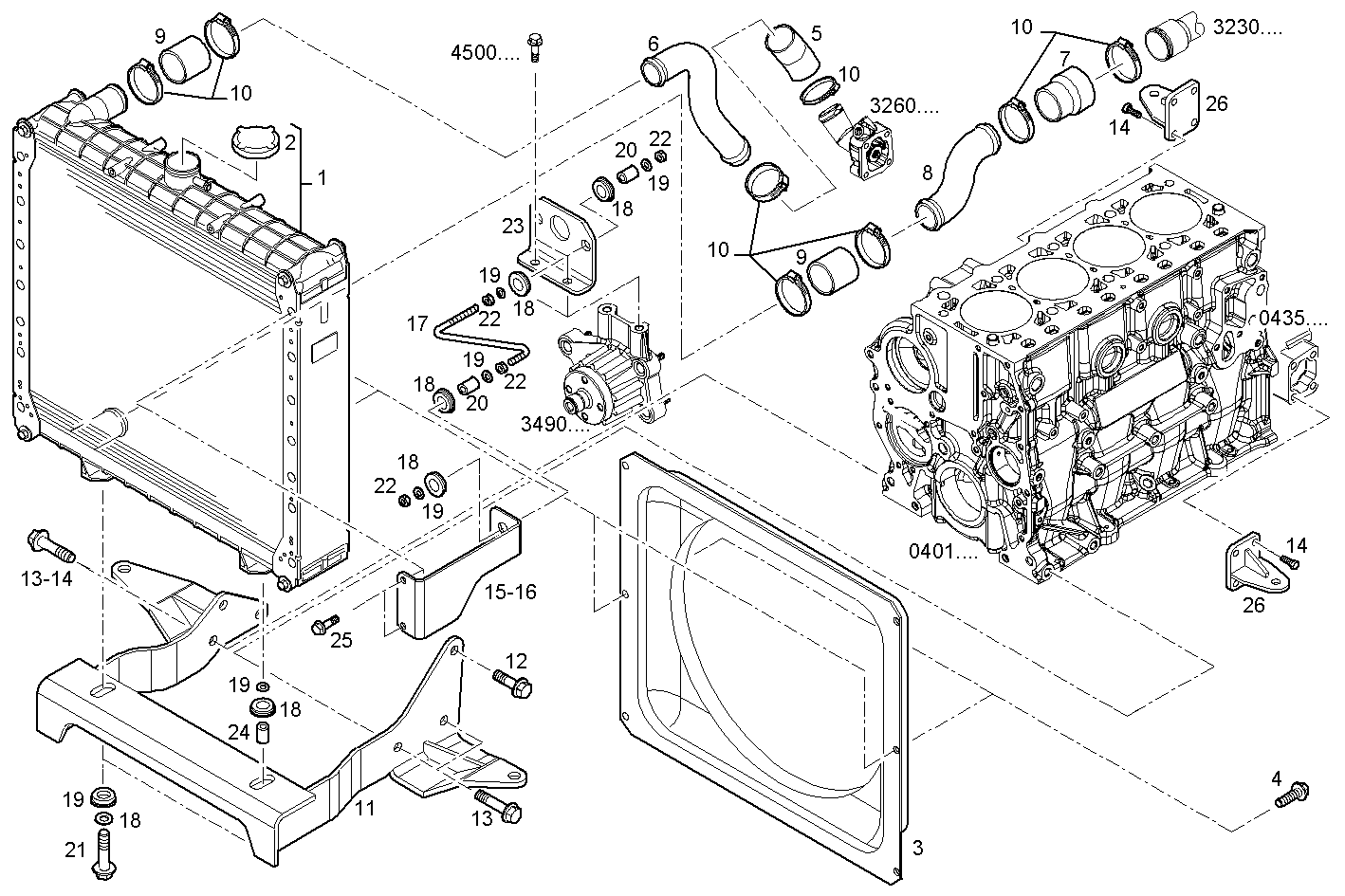

A22040501 RADIATOR [FROM 06/04/09] [FROM 06/04/09]

Iveco/FPT RADIATOR

Item Part number Description
1 8049316 WATER RADIATOR ASSY
2 87558952 RADIATOR PLUG
3 8037087 AIR HOOD
4 16597925 HEXAGON BOLT M8X14 MM
5 8049516 WATER HOSE
6 8049719 WATER PIPE
7 98447313 WATER HOSE Ø45 MM/Ø38 MM
8 8049733 WATER PIPE
9 8110724 RUBBER SLEEVE
10 17764892 PIPE CLIP Ø40-60 MM
11 8051377 SUPPORT
12 16588225 HEXAGON BOLT M12X40 MM
13 16678135 HEXAGON BOLT M12X45 MM
14 16588025 HEXAGON BOLT M12X30 MM
15 8049381 FASTENING BRACKET
16 8049382 FASTENING BRACKET
17 8049742 TIE ROD
18 741569 RUBBER LUG
19 741570 WASHER Ø10X17 MM SP=2,3
20 741571 SPACING BAR Ø10X17 MM SP=2,3
21 11343721 HEXAGON BOLT M10X65 MM
22 17044921 HEXAGON NUT M12
23 8048115 HOOK
24 8108634 SPACING BAR
25 16600224 HEXAGON BOLT M8X1,25X18 MM
26 8050757 REAR ENG. MOUNT
