F32MNSX01.00A800

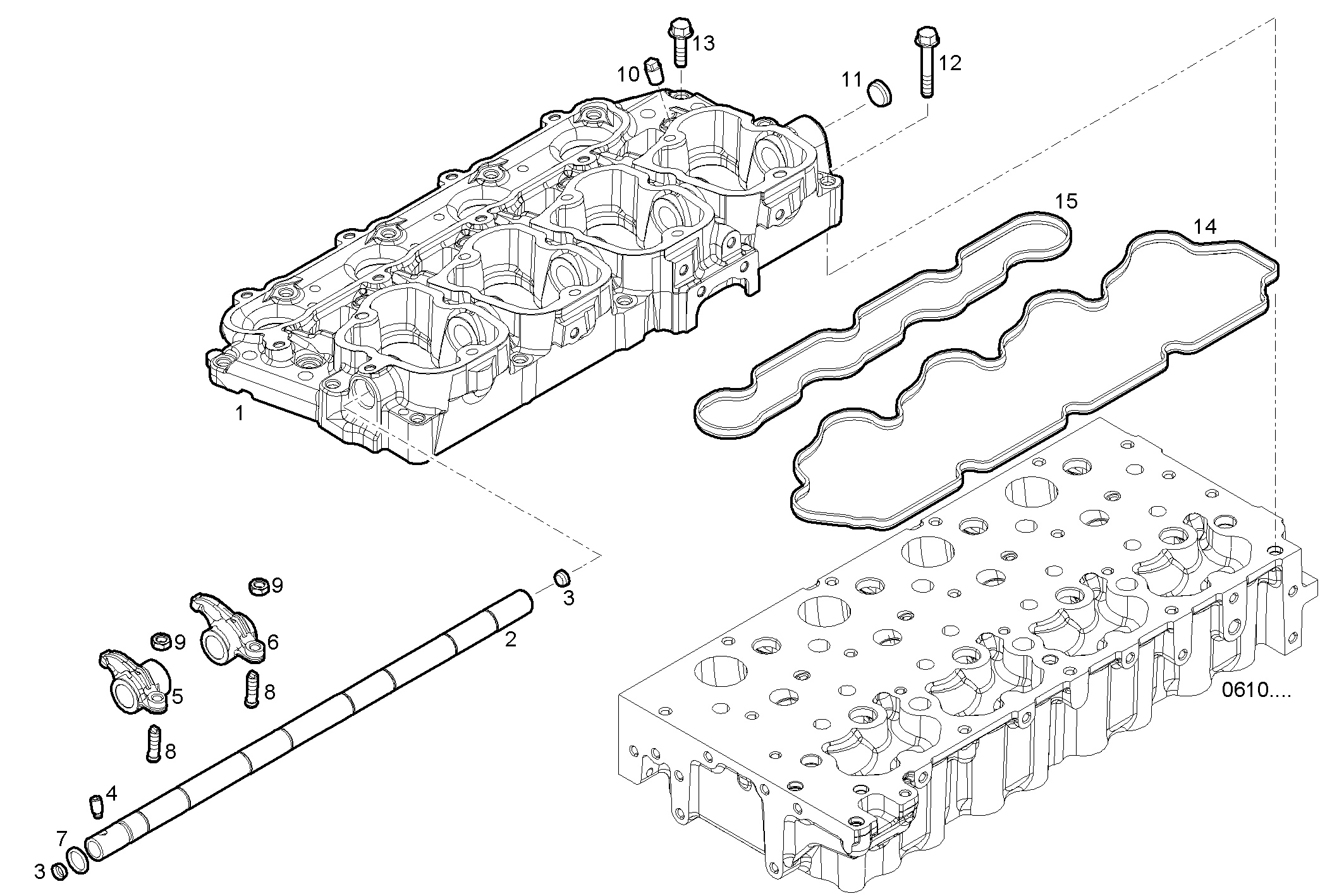

0627.034 CYL. HEAD COVERS
Item | Part number | Description |
---|---|---|
1 | 504276085 | SPACING BAR |
2 | 504250345 | ROCKER SHAFT |
3 | 16987801 | LOCK PLUG Ø12 MM |
4 | 99454296 | CYLIND-HEAD SCREW |
5 | 504221915 | ROCKER ARM INTAKE |
6 | 504221914 | ROCKER ARM EXHAUST |
7 | 17281681 | O-RING Ø13,9 MM SP=2,6 MM |
8 | 4699783 | ROCKER ARM SCREW |
9 | 4338920 | ADJUSTING NUT |
10 | 504273002 | THREADED PLUG M12X1,5 MM |
11 | 16988401 | LOCK PLUG Ø22 MM |
12 | 16586925 | HEXAGON BOLT M8X50 MM |
13 | 16673835 | HEXAGON BOLT M8X30 MM |
14 | 504163121 | FLAT ENGINE GASKET |
15 | 504177226 | FLAT ENGINE GASKET |
