F32MNSX01.00A800

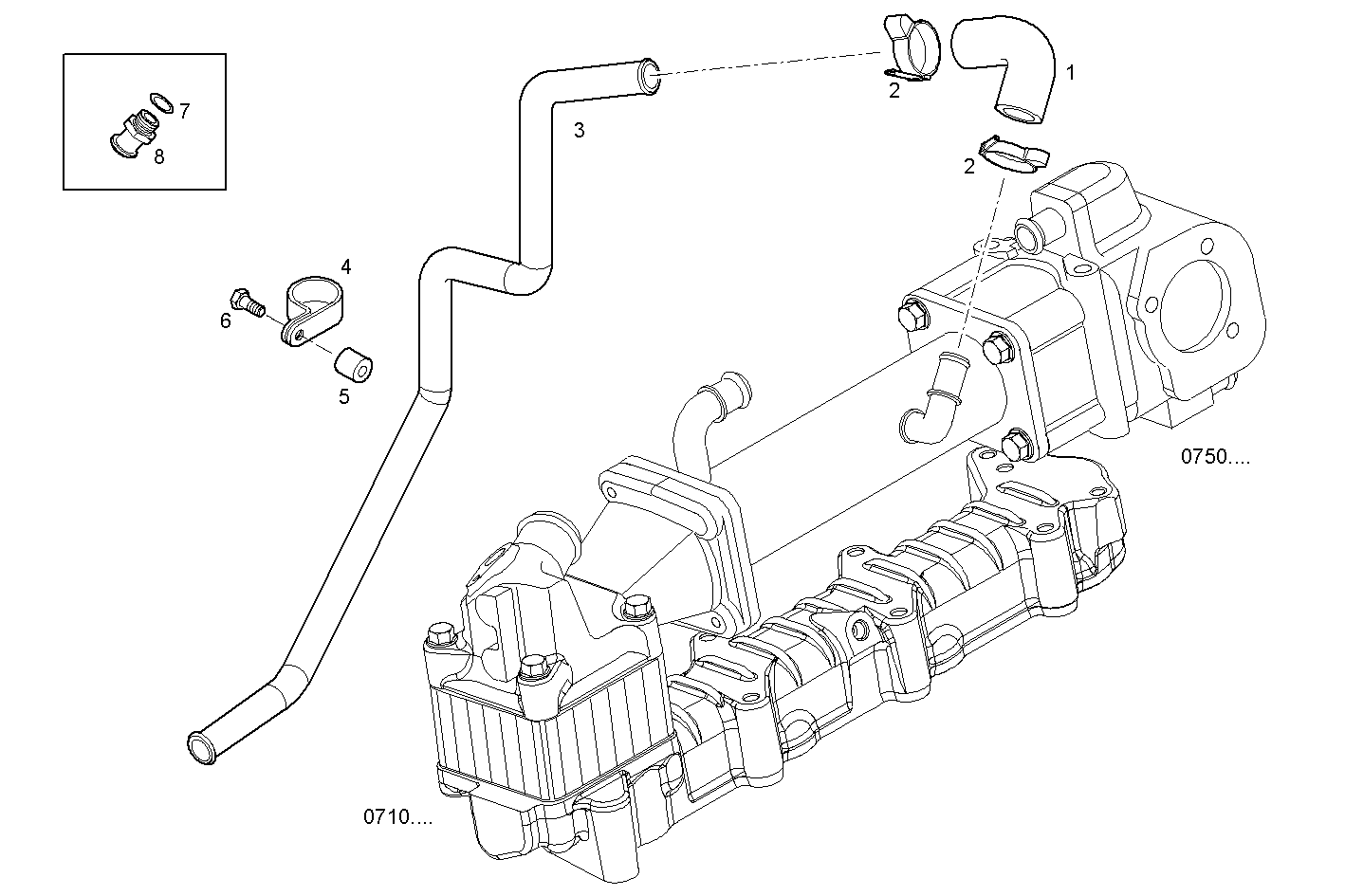

0750.004 EGR
| Item | Part number | Description |
|---|---|---|
| 1 | 8049847 | RUBBER SLEEVE |
| 2 | 17764594 | HOSE CLIP |
| 3 | 8049815 | WATER PIPE |
| 4 | 8049850 | FASTENING BRACKET |
| 5 | 17816514 | SPACING BAR Ø8,5X18 MM SP=25 MM |
| 6 | 16586725 | HEXAGON BOLT M8X1.25X40 MM |
| 7 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 8 | 8049822 | SCREW CONNECTOR |
