F32MNSX01.00A800

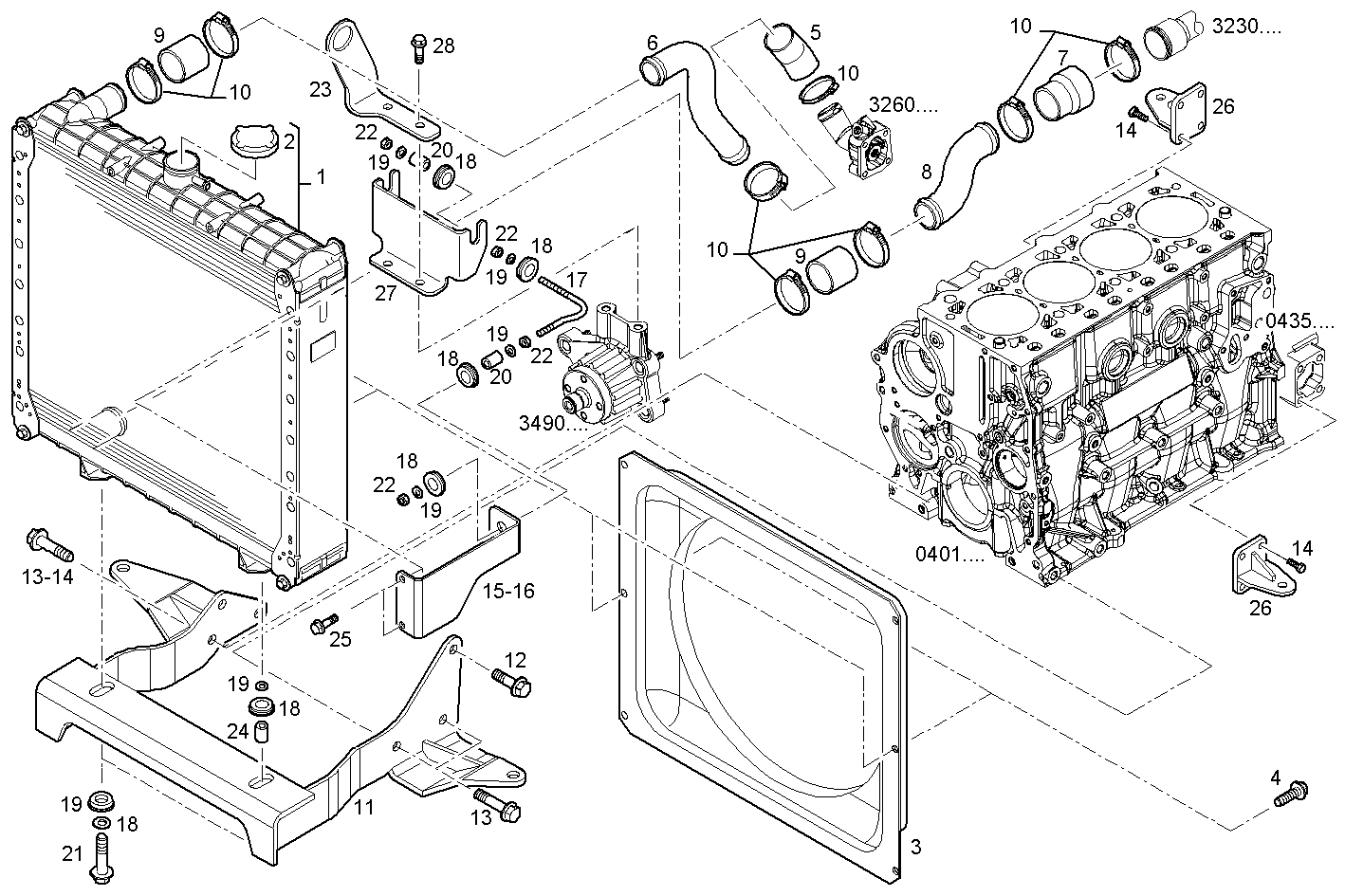

A22040502 RADIATOR [FROM 06/04/09] [FROM 06/04/09]
| Item | Part number | Description |
|---|---|---|
| 1 | 8049316 | WATER RADIATOR ASSY |
| 2 | 87558952 | RADIATOR PLUG |
| 3 | 8037087 | AIR HOOD |
| 4 | 16597925 | HEXAGON BOLT M8X14 MM |
| 5 | 8049516 | WATER HOSE |
| 6 | 8049719 | WATER PIPE |
| 7 | 98447313 | WATER HOSE Ø45 MM/Ø38 MM |
| 8 | 8049733 | WATER PIPE |
| 9 | 8110724 | RUBBER SLEEVE |
| 10 | 17764892 | PIPE CLIP Ø40-60 MM |
| 11 | 8051377 | SUPPORT |
| 12 | 16588225 | HEXAGON BOLT M12X40 MM |
| 13 | 16678135 | HEXAGON BOLT M12X45 MM |
| 14 | 16588025 | HEXAGON BOLT M12X30 MM |
| 15 | 8049381 | FASTENING BRACKET |
| 16 | 8049382 | FASTENING BRACKET |
| 17 | 8051952 | TIE ROD |
| 18 | 741569 | RUBBER LUG |
| 19 | 741570 | WASHER Ø10X17 MM SP=2,3 |
| 20 | 741571 | SPACING BAR Ø10X17 MM SP=2,3 |
| 21 | 11343721 | HEXAGON BOLT M10X65 MM |
| 22 | 17044921 | HEXAGON NUT M12 |
| 23 | 8051950 | HOOK |
| 24 | 8108634 | SPACING BAR |
| 25 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
| 26 | 8050757 | REAR ENG. MOUNT |
| 27 | 8051951 | SUPPORT |
| 28 | 16675835 | HEXAGON BOLT M10X30 MM |
