F32MNTX20.00

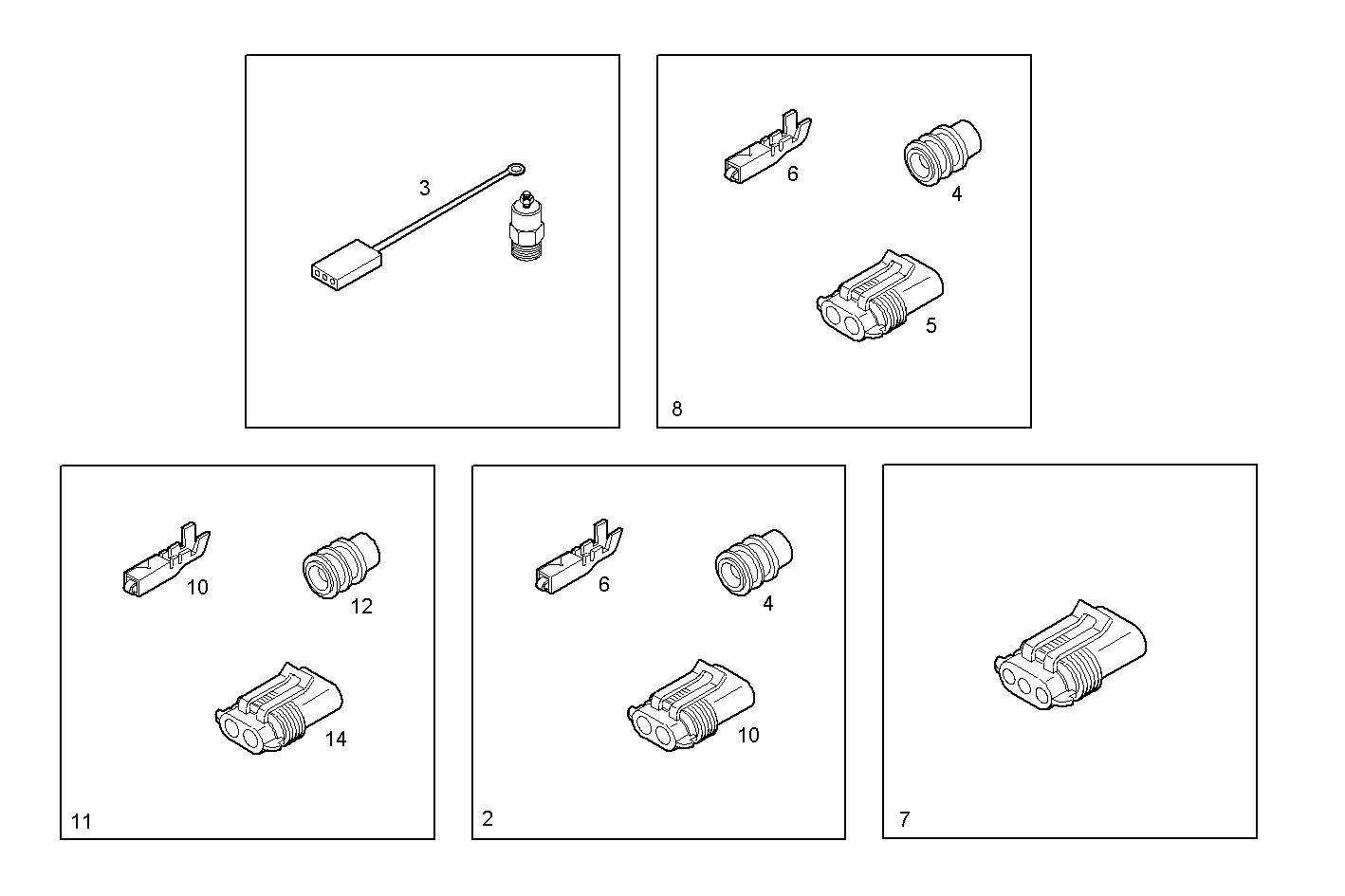

8328.010 ELECTRIC WIRING [FROM 26/03/09] [FROM 26/03/09]

Iveco/FPT ELECTRIC WIRING

Item Part number Description
1 98435344 WIRE CONNECTOR 3 pin female
2 8042343 CONNECTION assy for stop engine electrovalve
3 8038028 WIRE/CABLE electrovalve
4 4861936 RUBBER BUSH YELLOW
5 98435345 WIRE CONNECTOR 1 pin female
6 98435372 TERMINAL
7 8033231 CONNECTION ASSY
8 8033709 CONNECTION ASSY
9 12489887 WIRE CONNECTOR
11 8033710 CONNECTION ASSY
