F32MNTX20.00

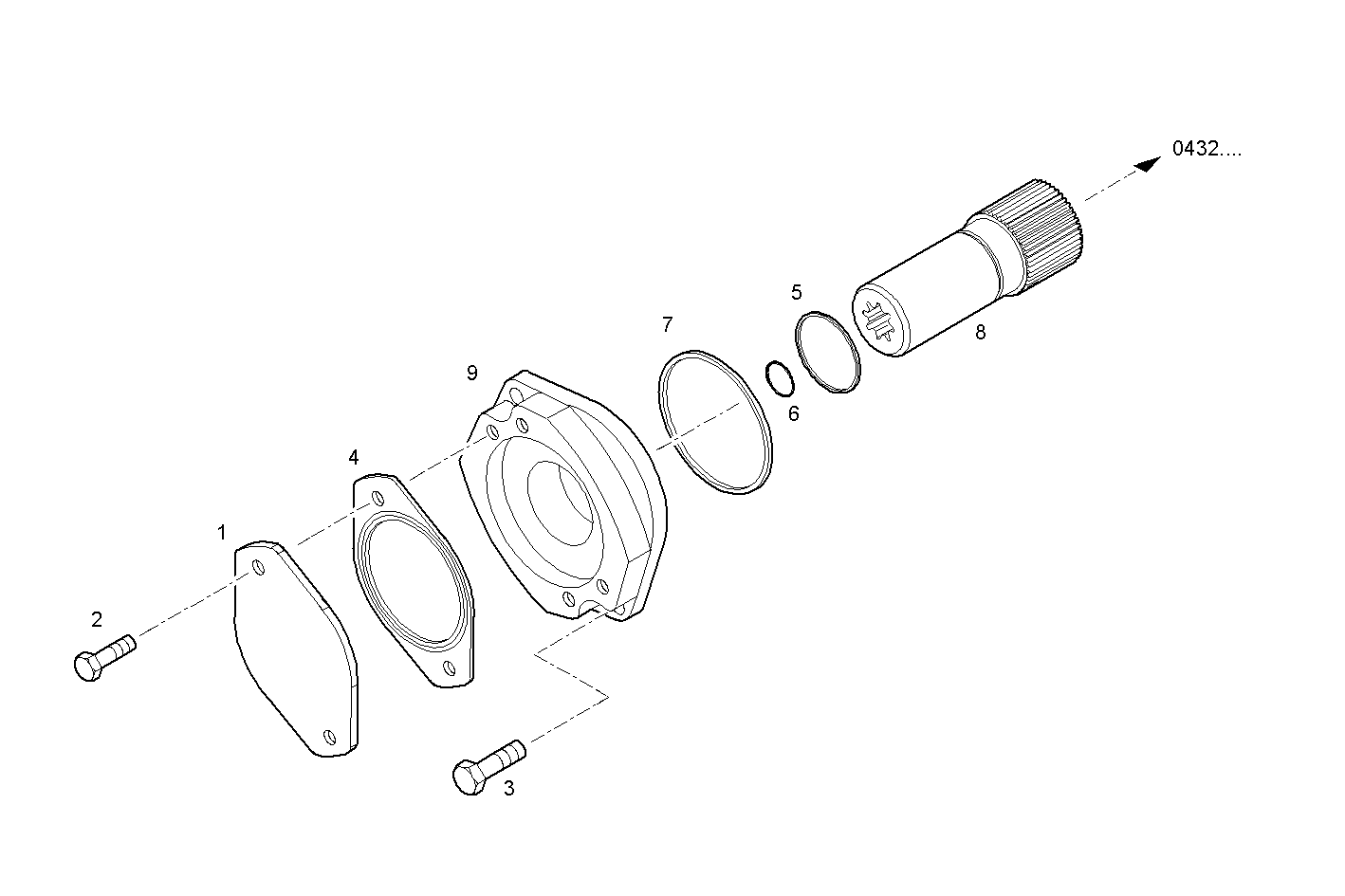

A09080505 PREARRANGEMENT DRIVE REAR HYDRAULIC PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504024782 | COVER |
| 2 | 18139424 | HEXAGON BOLT M10X20 MM |
| 3 | 16677735 | HEXAGON BOLT M12X25 MM |
| 4 | 504024783 | FLAT ENGINE GASKET |
| 5 | 17082976 | SPRING LOCKWASHER |
| 6 | 17084476 | CIRCLIP Ø14 MM |
| 7 | 17283681 | O-RING Ø45,6 MM SP=2,62 MM |
| 8 | 8051464 | POWER TAKE OFF SHAFT |
| 9 | 8051460 | SUPPORT |
