F32MNTX20.00

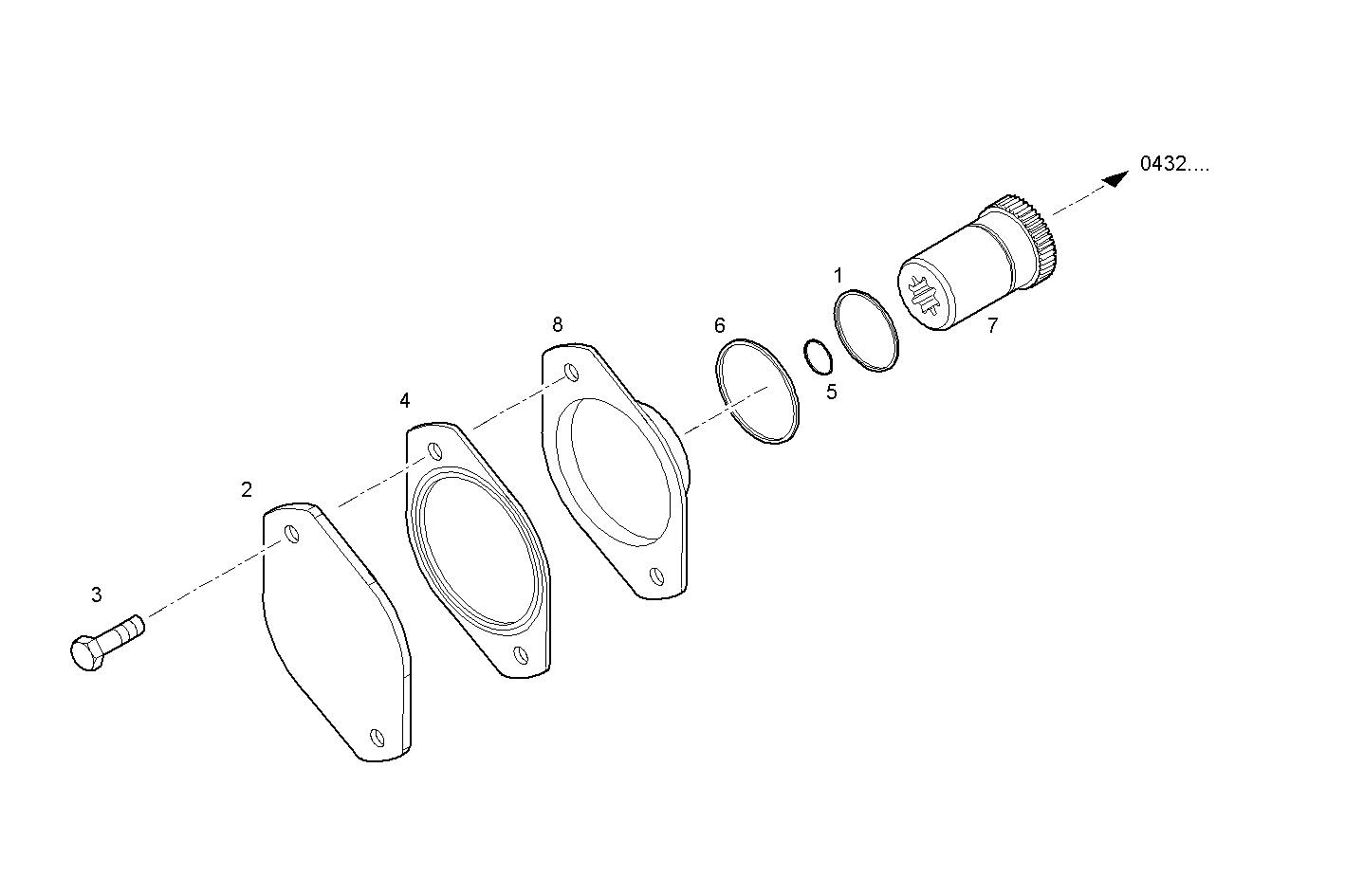

A09080506 PREARRANGEMENT DRIVE REAR HYDRAULIC PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 17084876 | SPRING LOCKWASHER |
| 2 | 504049033 | COVER |
| 3 | 16588025 | HEXAGON BOLT M12X30 MM |
| 4 | 4895329 | FLAT ENGINE GASKET |
| 5 | 17082976 | SPRING LOCKWASHER |
| 6 | 17283681 | O-RING Ø45,6 MM SP=2,62 MM |
| 7 | 8051538 | POWER TAKE OFF SHAFT |
| 8 | 8051537 | SUPPORT |
