F32MNTX20.00

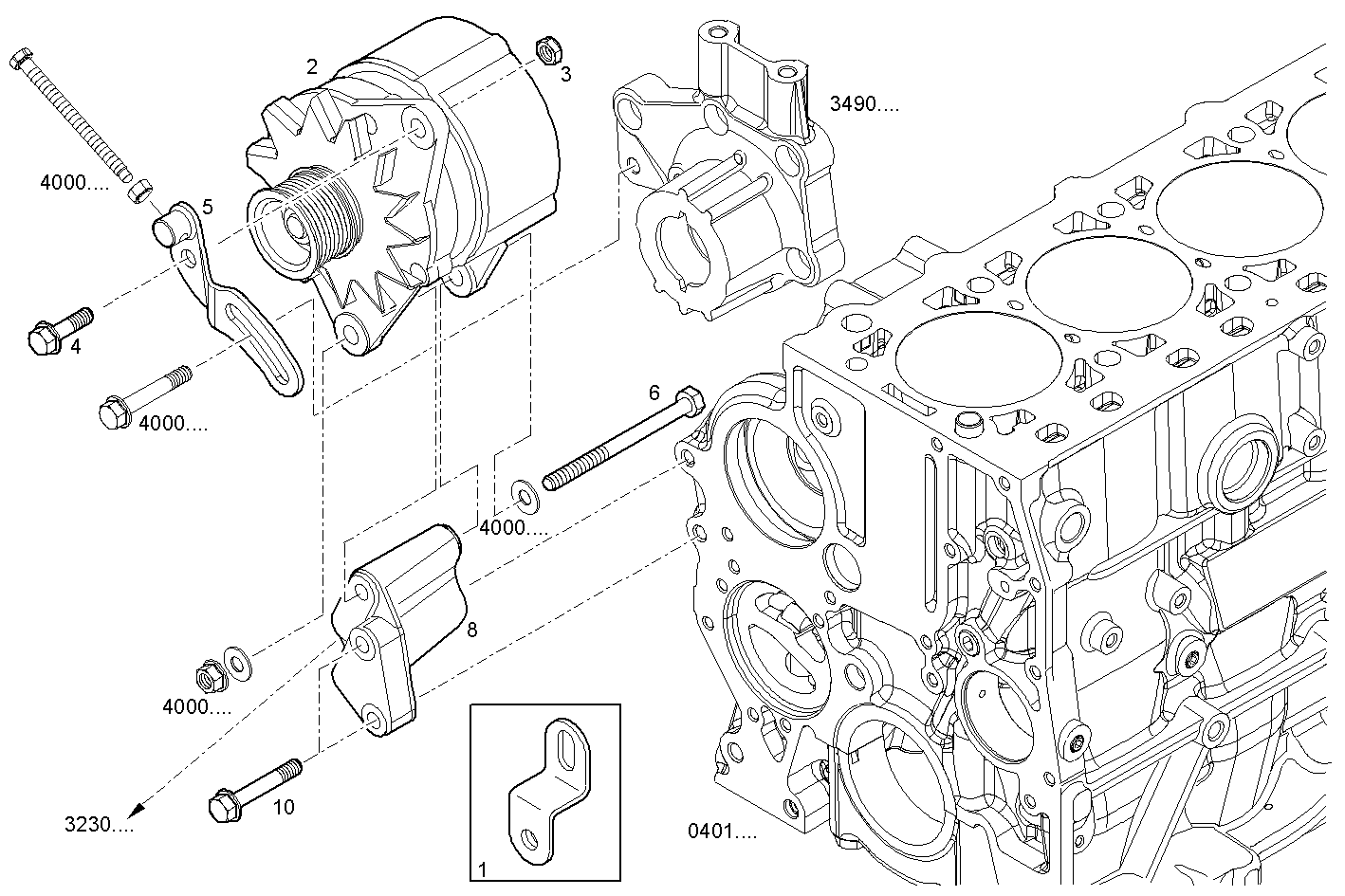

A14170509 ALTERNATOR - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8050792 | FASTENING BRACKET |
| 2 | 504271462 | ALTERNATOR ASSY |
| 3 | 17971835 | HEXAGON NUT M10 |
| 4 | 16675835 | HEXAGON BOLT M10X30 MM |
| 5 | 504248786 | BELT TENSIONER |
| 6 | 11108821 | HEXAGON BOLT M10X130 MM |
| 7 | 16587625 | HEXAGON BOLT M10X50 MM |
| 8 | 8050815 | GENERATOR SUPPORT |
