F32TM1X.A008

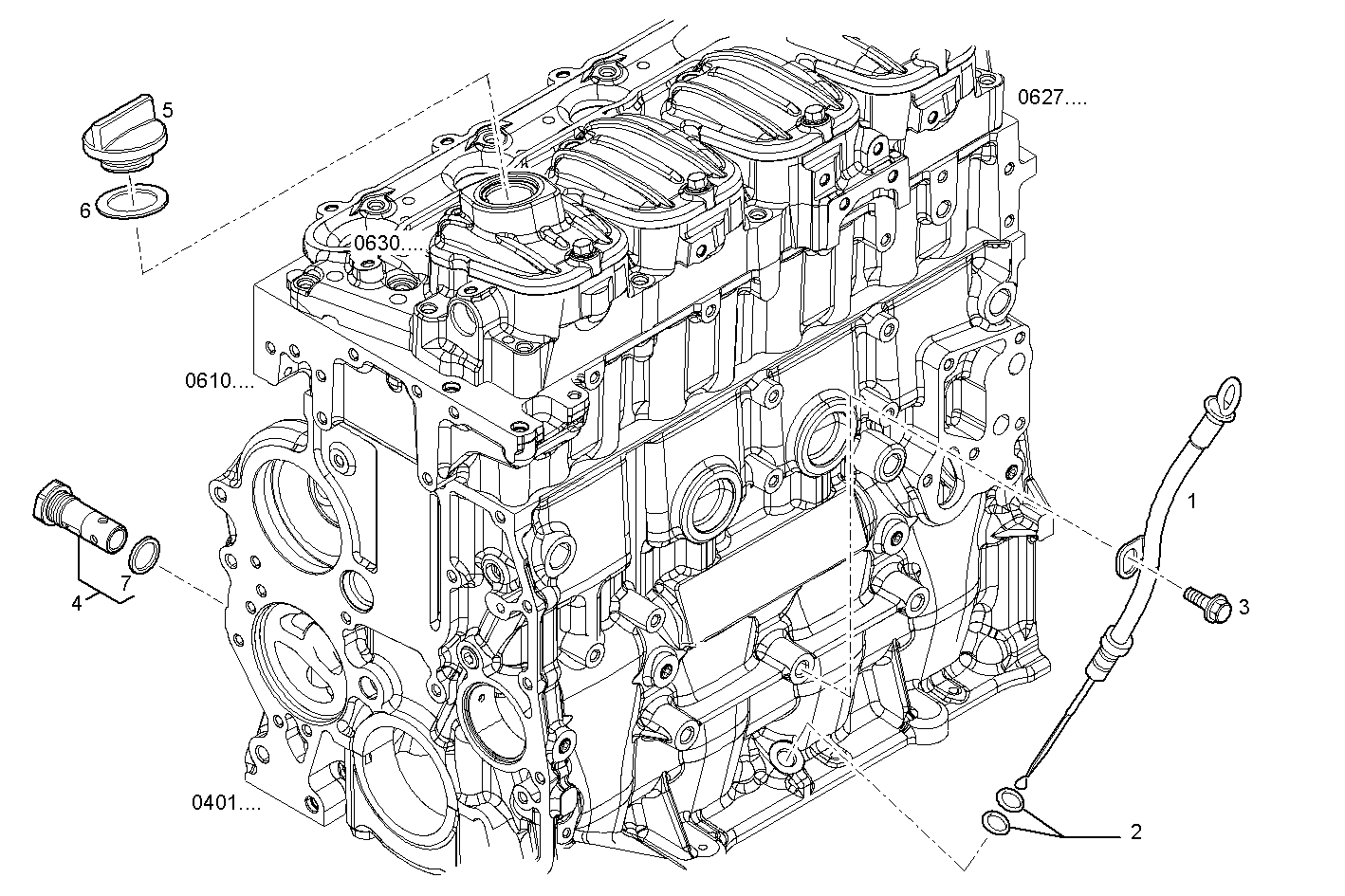

2700.036 OIL DIPSTICK & FILLER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504226579 | OIL DIPSTICK |
| 2 | 17277981 | O-RING 1,78x9,25 |
| 3 | 16588225 | HEXAGON BOLT M12X40 MM |
| 4 | 504357733 | VALVE |
| 5 | 4895202 | OIL FILLER PLUG |
| 6 | 4895296 | SEAL GASKET |
| 7 | 99489022 | SEAL GASKET Ø22X30 MM SP=1,5 MM |
