F32TM1X.A008

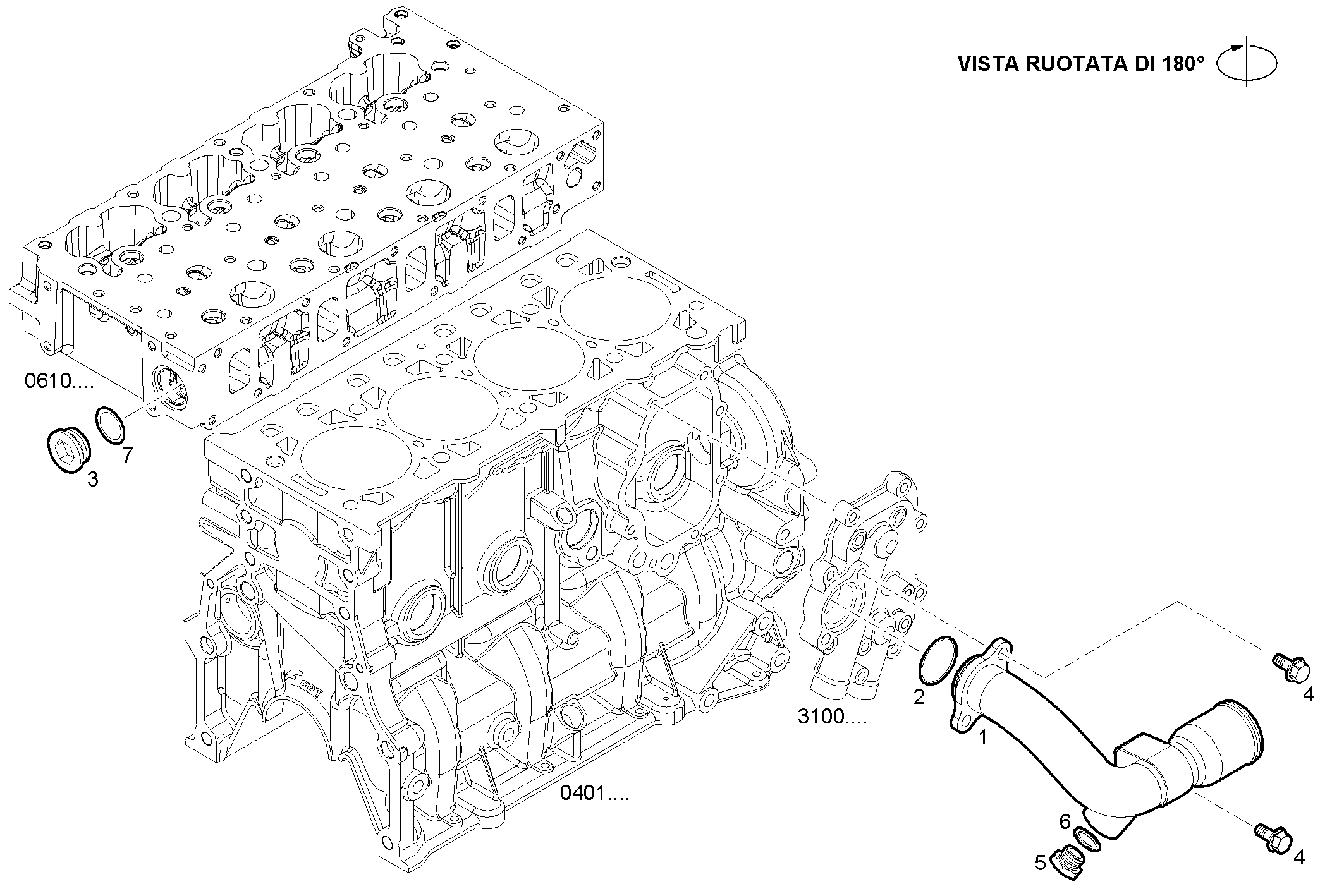

3230.045 WATER PIPE
Item | Part number | Description |
---|---|---|
1 | 504182961 | WATER PIPE |
2 | 17289081 | O-RING Ø31,34X3,53 MM |
3 | 16993711 | THREADED PLUG M35X1,5 |
4 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
5 | 16992411 | THREADED PLUG M16X1,5 |
6 | 10257060 | SEAL GASKET Ø16X22 MM SP=1,5 MM |
7 | 10265160 | SEAL GASKET Ø35,3 MM |
