F32TM1X.A008

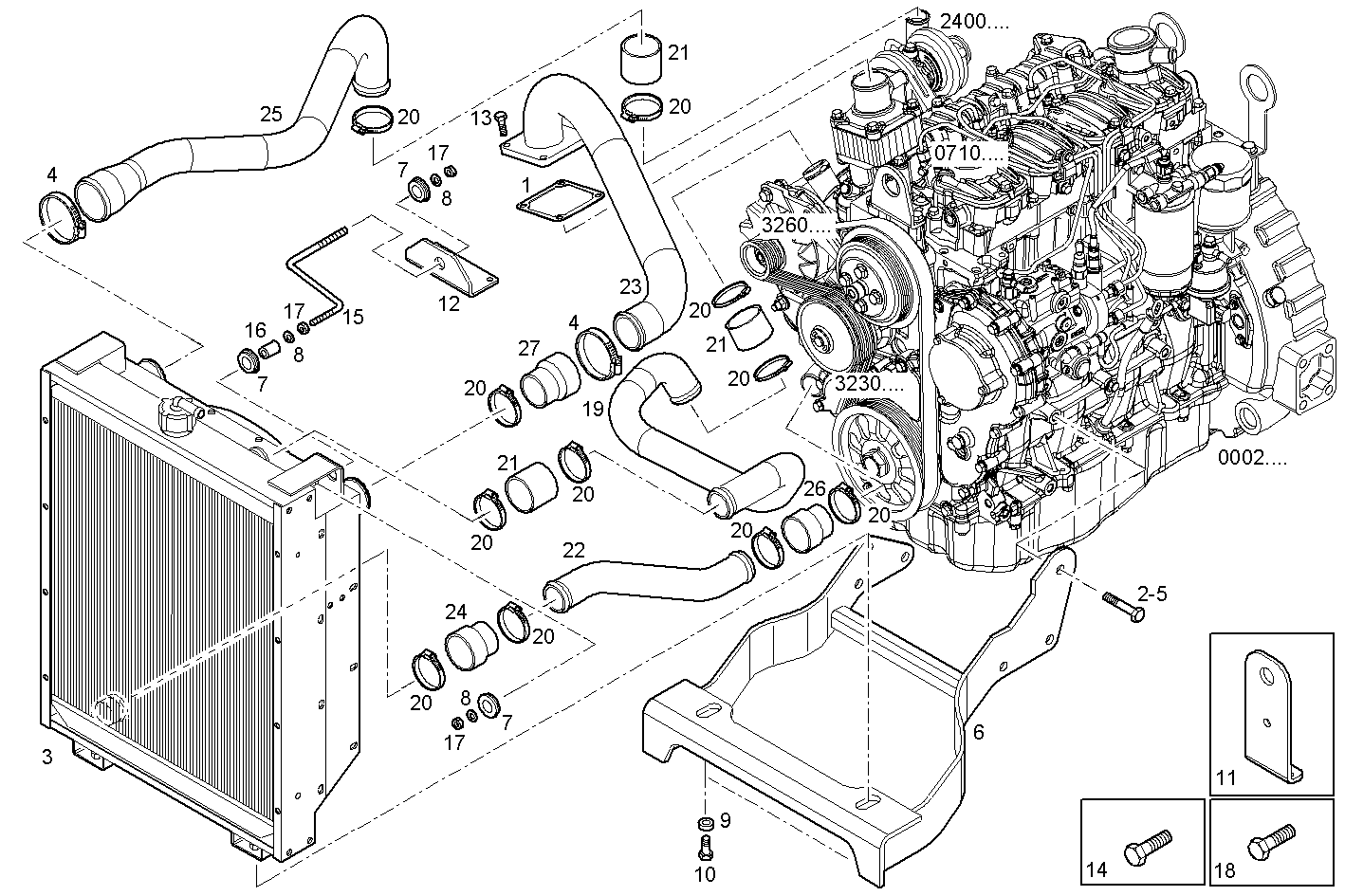

A22010533 RADIATOR 2 CIRCUITS AIR/WATER
| Item | Part number | Description |
|---|---|---|
| 1 | 4899921 | FLAT ENGINE GASKET |
| 2 | 16678135 | HEXAGON BOLT M12X45 MM |
| 3 | 8049995 | WATER RADIATOR ASSY |
| 4 | 17764991 | CLIP Ø50/70 MM |
| 5 | 16588125 | HEXAGON BOLT M12X35 MM |
| 6 | 8050610 | SUPPORT |
| 7 | 741569 | RUBBER LUG |
| 8 | 741570 | WASHER Ø10X17 MM SP=2,3 |
| 9 | 8108634 | SPACING BAR |
| 10 | 16676834 | HEXAGON BOLT M10X70 MM |
| 11 | 8050719 | HOOK |
| 12 | 8050740 | RETAINER |
| 13 | 16673735 | HEXAGON BOLT M8X25 MM |
| 14 | 16587525 | HEXAGON BOLT M10X45 MM |
| 15 | 8050741 | TIE ROD |
| 16 | 741571 | SPACING BAR Ø10X17 MM SP=2,3 |
| 17 | 17044921 | HEXAGON NUT M12 |
| 18 | 16678235 | HEXAGON BOLT M12X50 MM |
| 19 | 8050744 | WATER PIPE |
| 20 | 17764892 | PIPE CLIP Ø40-60 MM |
| 21 | 8040142 | RUBBER SLEEVE Ø45x70 MM |
| 22 | 8050745 | WATER PIPE |
| 23 | 8050743 | AIR PIPE/DUCT |
| 24 | 99444730 | WATER HOSE Ø 60 MM |
| 25 | 8050742 | AIR PIPE/DUCT |
| 26 | 98447313 | WATER HOSE Ø45 MM/Ø38 MM |
| 27 | 8050695 | RUBBER SLEEVE Ø50 MM/Ø 60 MM |
