F32TM1X.A008

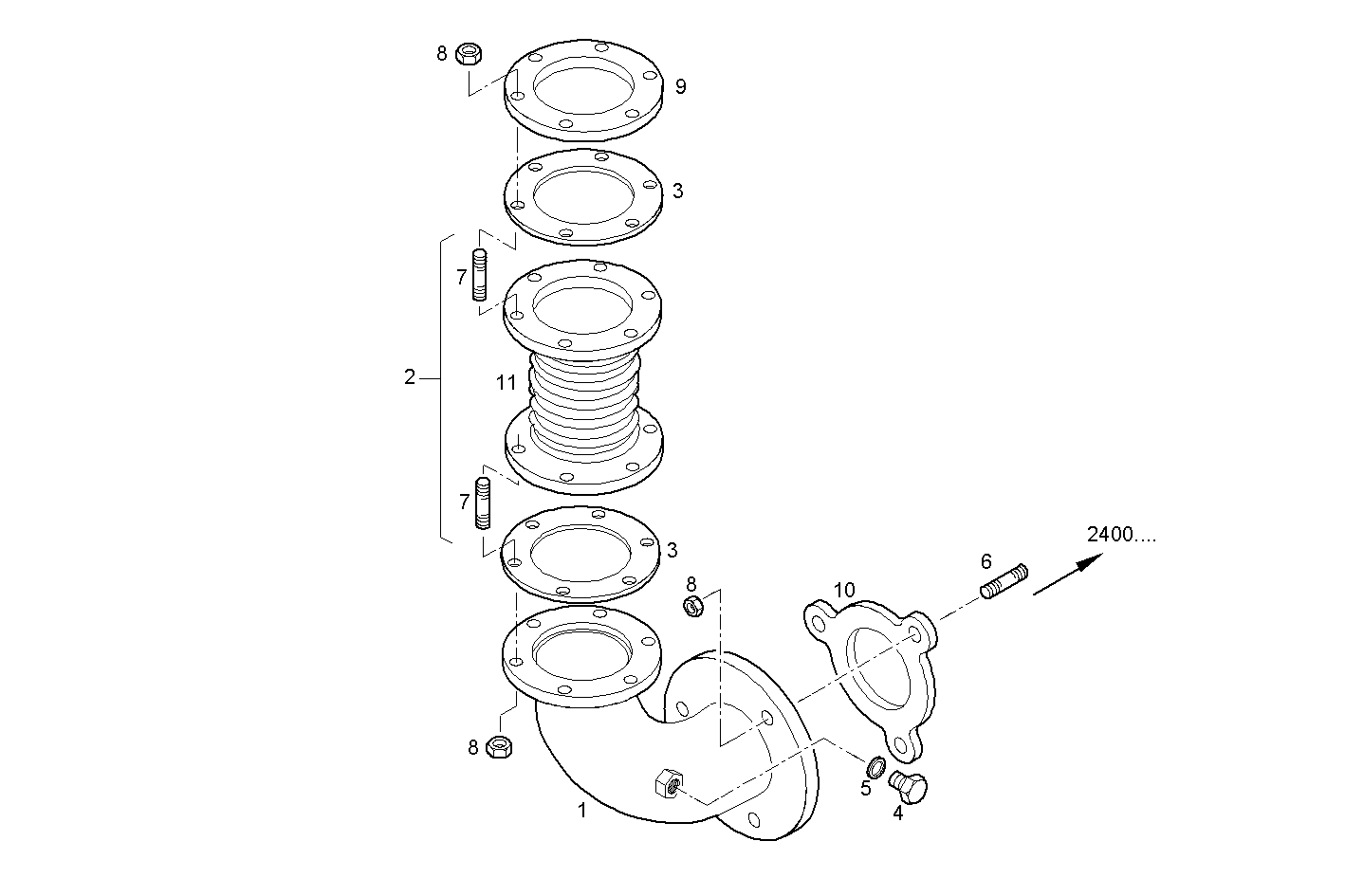

A40120503 TURNING EXHAUST ELBOW WITH FLEXIBLE
Item | Part number | Description |
---|---|---|
1 | 8049499 | EXHAUST ELBOW |
2 | 8010252 | EXHAUST BELLOWS ASSY |
3 | 8009606 | GASKET |
4 | 16992211 | THREADED PLUG M12X1,5 |
5 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
6 | 98492637 | STUD M8X12X27 MM |
7 | 13516921 | STUD M8X12X22 MM |
8 | 17044721 | HEXAGON NUT M8X1,25 |
9 | 4919183 | FLANGE |
10 | 504050114 | FLAT ENGINE GASKET |
11 | 4935378 | EXHAUST BELLOWS |
