F3AE0681D*B315

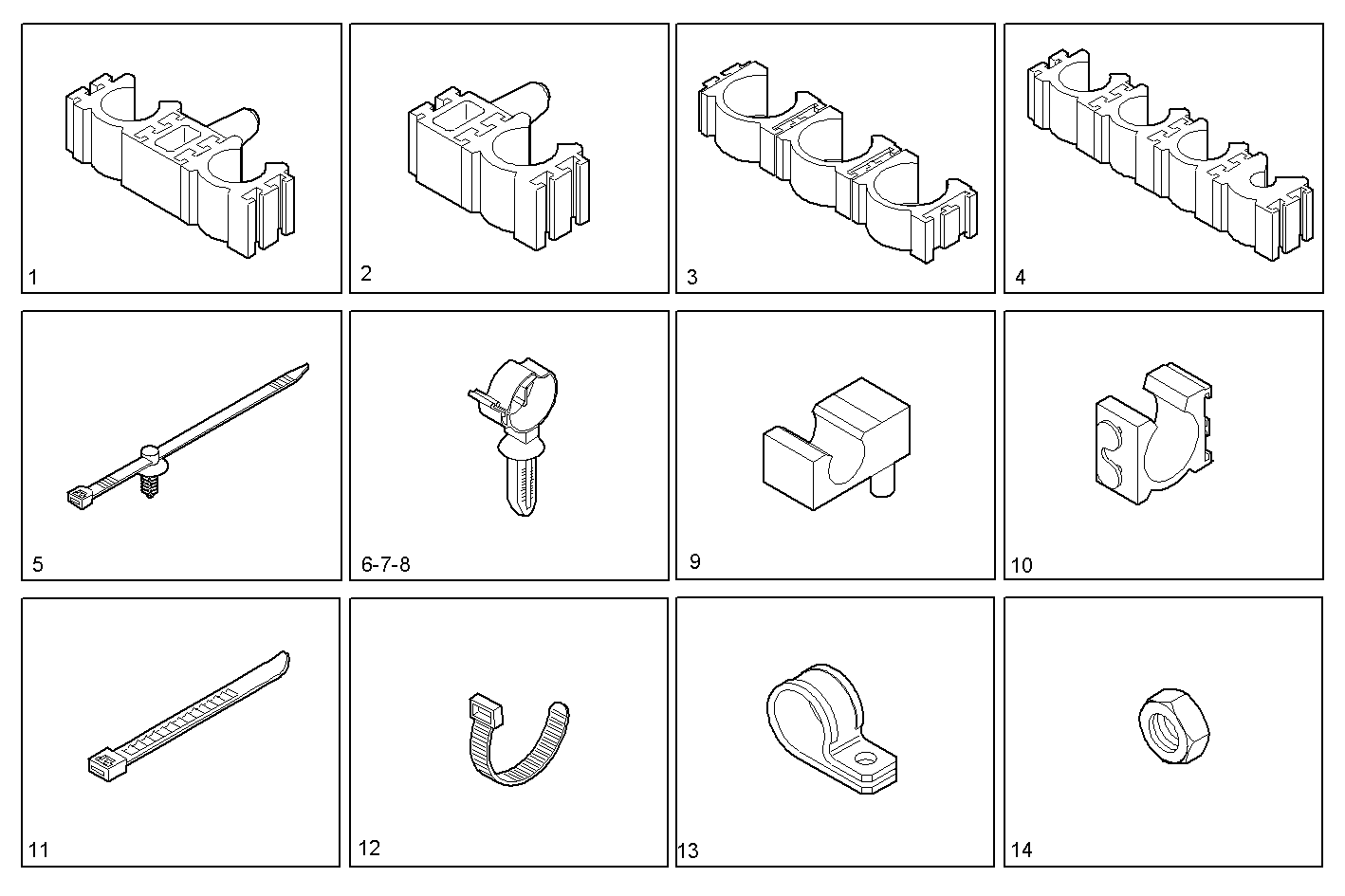

0407.012 FIXING EQUIPMENT
Item | Part number | Description |
---|---|---|
1 | 504068417 | LOCK |
2 | 504068418 | LOCK |
3 | 504056815 | HITCH ASSY. |
4 | 504056785 | SPRING CLAMP |
5 | 504023286 | CABLE STRAP |
6 | 504000063 | CLIP |
7 | 504000061 | CLIP |
8 | 504000058 | CLIP |
9 | 500346378 | SPRING CLAMP |
10 | 504052515 | RETAINER |
11 | 99455033 | CLIP |
12 | 42099097 | CABLE STRAP |
13 | 17314390 | PIPE CLIP |
14 | 17044625 | HEXAGON NUT M6 |
