F3AE0681D*B315

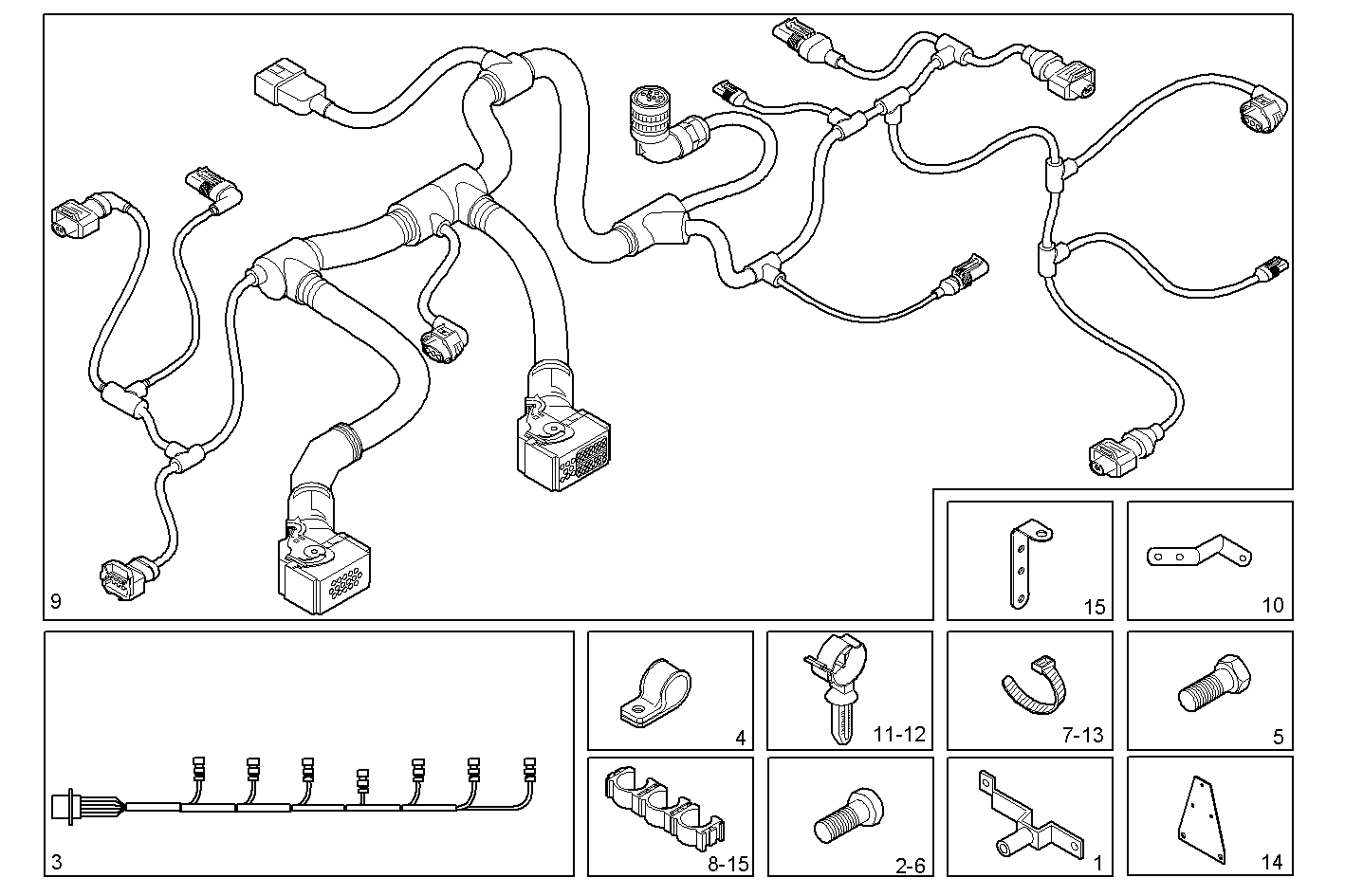

1730.096 ENGINE CABLE
| Item | Part number | Description |
|---|---|---|
| 1 | 500371778 | FASTENING BRACKET |
| 2 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
| 3 | 500347901 | WIRE/CABLE FOR INJECTORS |
| 4 | 10450990 | PIPE CLIP |
| 5 | 16592225 | HEXAGON BOLT M8X55 MM |
| 6 | 16596925 | HEXAGON BOLT |
| 7 | 42099097 | CABLE STRAP |
| 8 | 500320256 | RETAINER |
| 9 | 504091213 | ENGINE HARNESS |
| 10 | 500387097 | YOKE |
| 11 | 504000061 | CLIP |
| 12 | 504000063 | CLIP |
| 13 | 504023286 | CABLE STRAP |
| 14 | 504067009 | RETAINER |
| 15 | 500320255 | FASTENING BRACKET |
