F3AE0681D*B315

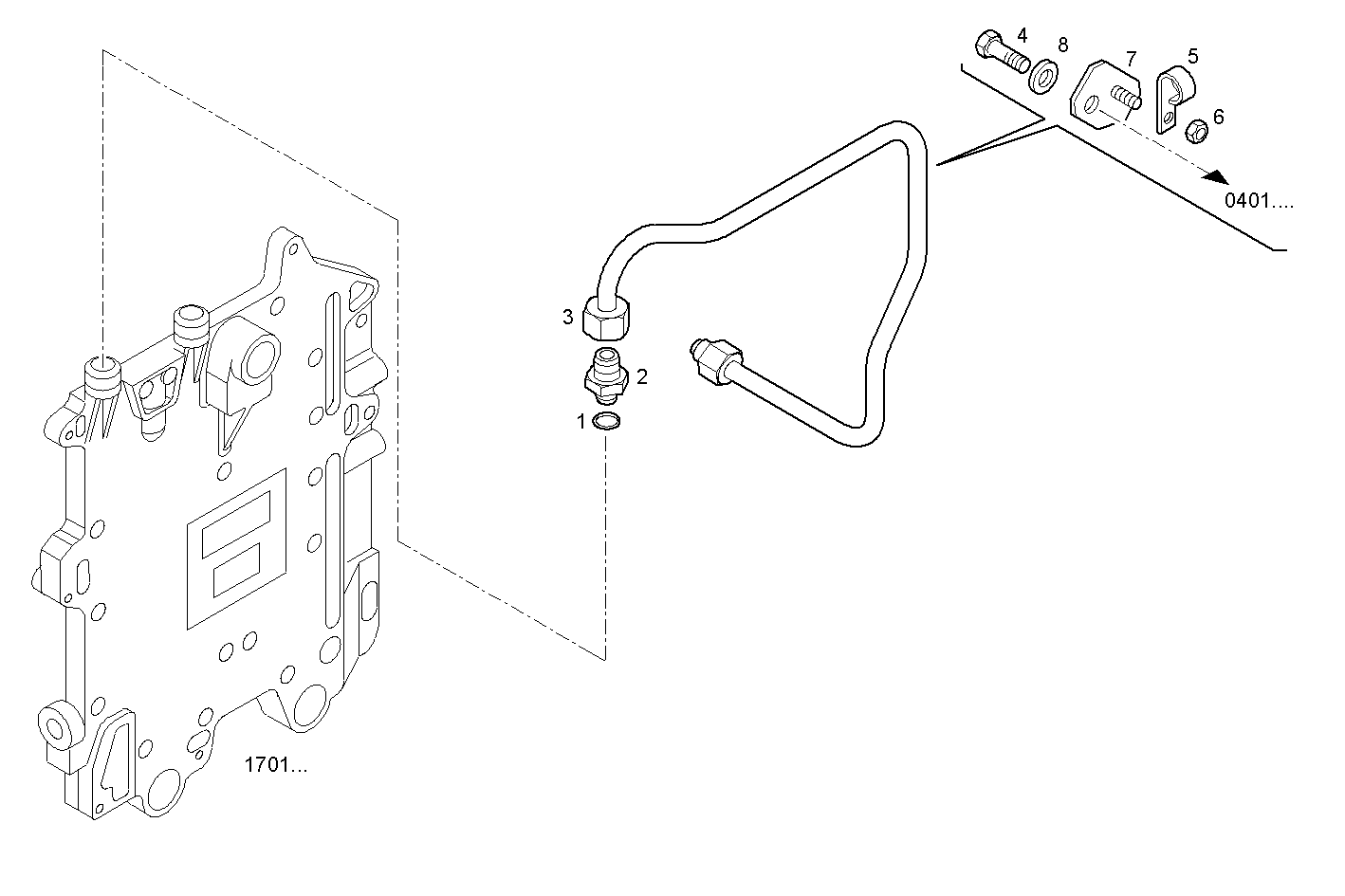

2032.009 FUEL LINES - INLET TO E.C.U.
| Item | Part number | Description |
|---|---|---|
| 1 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 2 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 3 | 504044861 | FUEL LINE |
| 4 | 1112655 | HEXAGON BOLT M16x20 MM |
| 5 | 17316592 | PIPE CLIP |
| 6 | 17044725 | HEXAGON NUT M8 |
| 7 | 41213491 | RETAINER |
| 8 | 17798674 | SPRING WASHER |
