F3AE0681D*B315

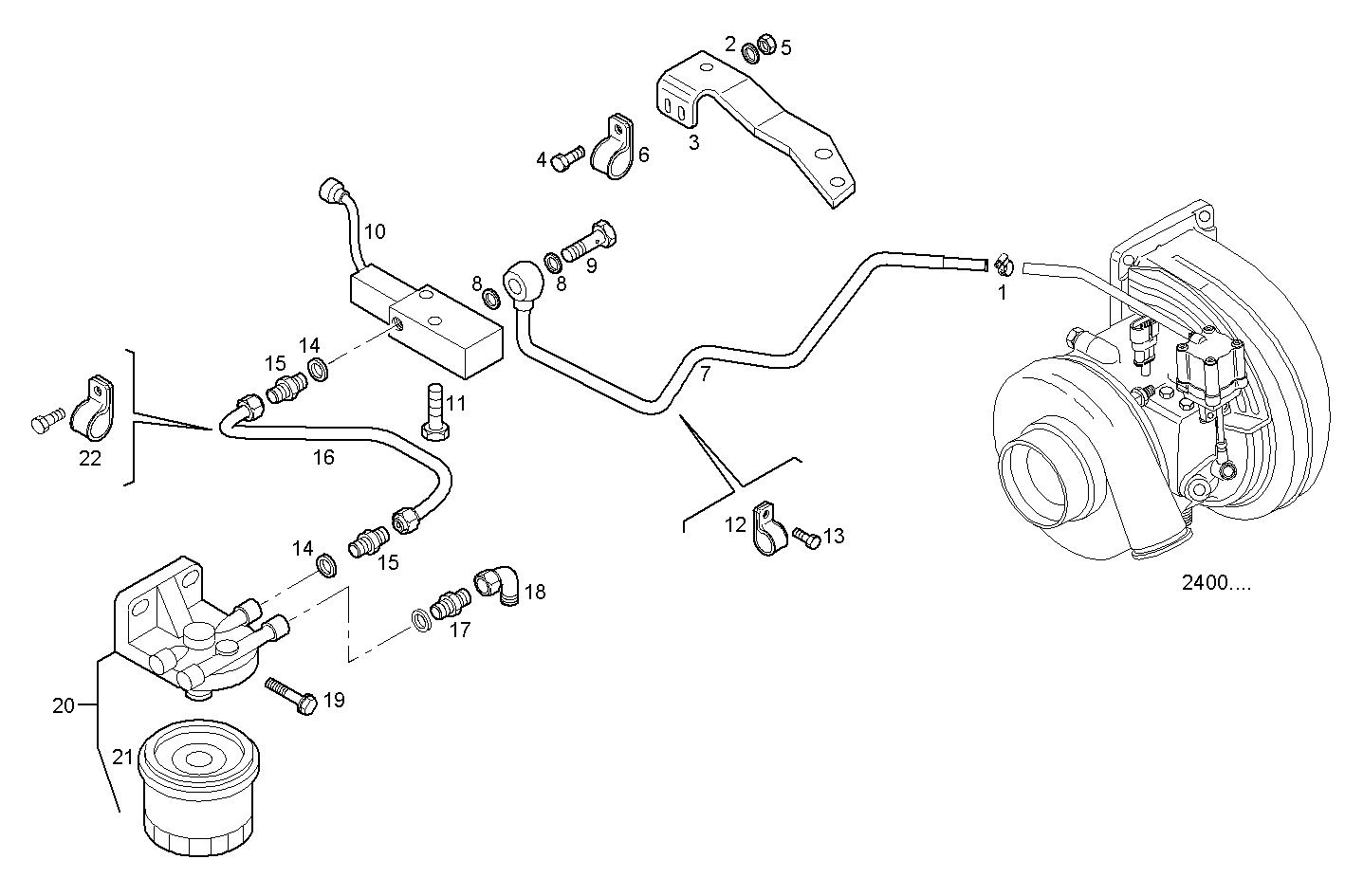

2406.010 CONTROL VALVE

Iveco/FPT CONTROL VALVE

Item Part number Description
1 500332605 CLIP
2 17088774 WASHER Ø6 MM
3 504056221 RETAINER
4 18137825 HEXAGON BOLT M6X16
5 17152725 NUT M6
6 17315699 FASTENING BRACKET
7 504045925 WATER PIPE
8 98474306 WASHER Ø12X20 MM SP=1,9 MM
9 504081281 SCREW CONNECTOR M12X1,5
10 504203275 VALVE
11 16591925 HEXAGON BOLT M6X50 MM
12 17316392 CLIP
13 16597925 HEXAGON BOLT M8X14 MM
14 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
15 504346101 THREADED UNION M14X1,5
16 500344424 PIPE
17 41285128 THREADED UNION M12X1,5
18 41029796 ELBOW COUPLING
19 16587125 HEXAGON BOLT M10X25 MM
20 500344293 FILTER AIR ASSY
21 2996238 FILTERING CARTRIDGE for VGT
22 500391414 FASTENING BRACKET
