F3AE0684D*B001

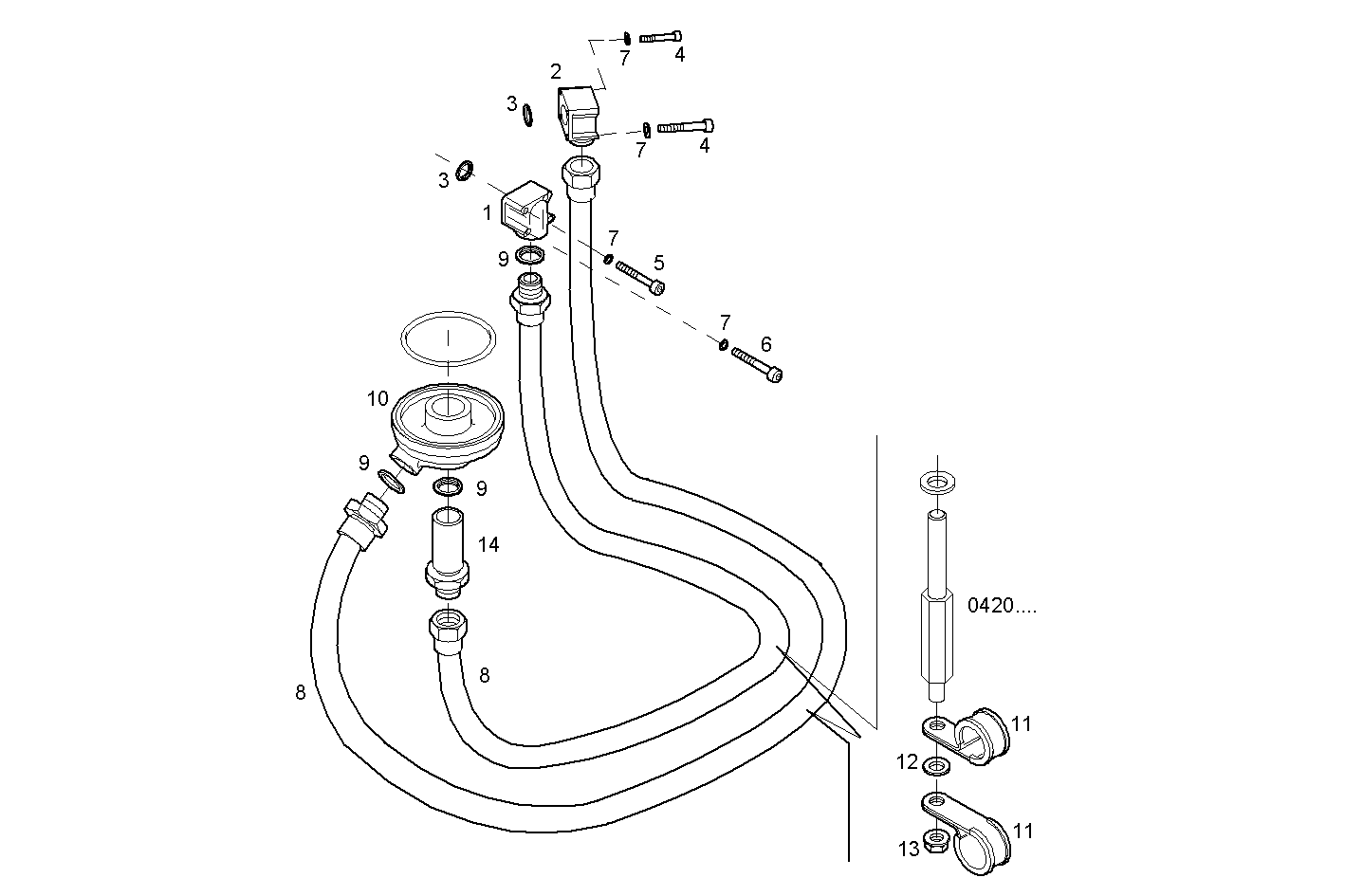

3026.001 LUBE OIL LINES
Item | Part number | Description |
---|---|---|
1 | 504005572 | PIPE SOCKET |
2 | 98481998 | ELBOW COUPLING |
3 | 17282281 | O-RING 2,62x23,47 |
4 | 16689724 | CYLIND-HEAD SCREW M6X45 MM |
5 | 16689824 | CYLIND-HEAD SCREW M6X50 MM |
6 | 16689924 | CYLIND-HEAD SCREW |
7 | 17088474 | WASHER Ø6X12 MM |
8 | 504002665 | HOSE |
9 | 99434480 | SEAL GASKET Ø30X40 MM |
10 | 504005569 | SUPPORT |
11 | 17317390 | FASTENING BRACKET Ø28 MM x M8 |
12 | 17094924 | WASHER Ø8X16 MM |
13 | 17044721 | HEXAGON NUT M8X1,25 |
14 | 500382730 | PIPE SOCKET |
