F3AE0684D*B001

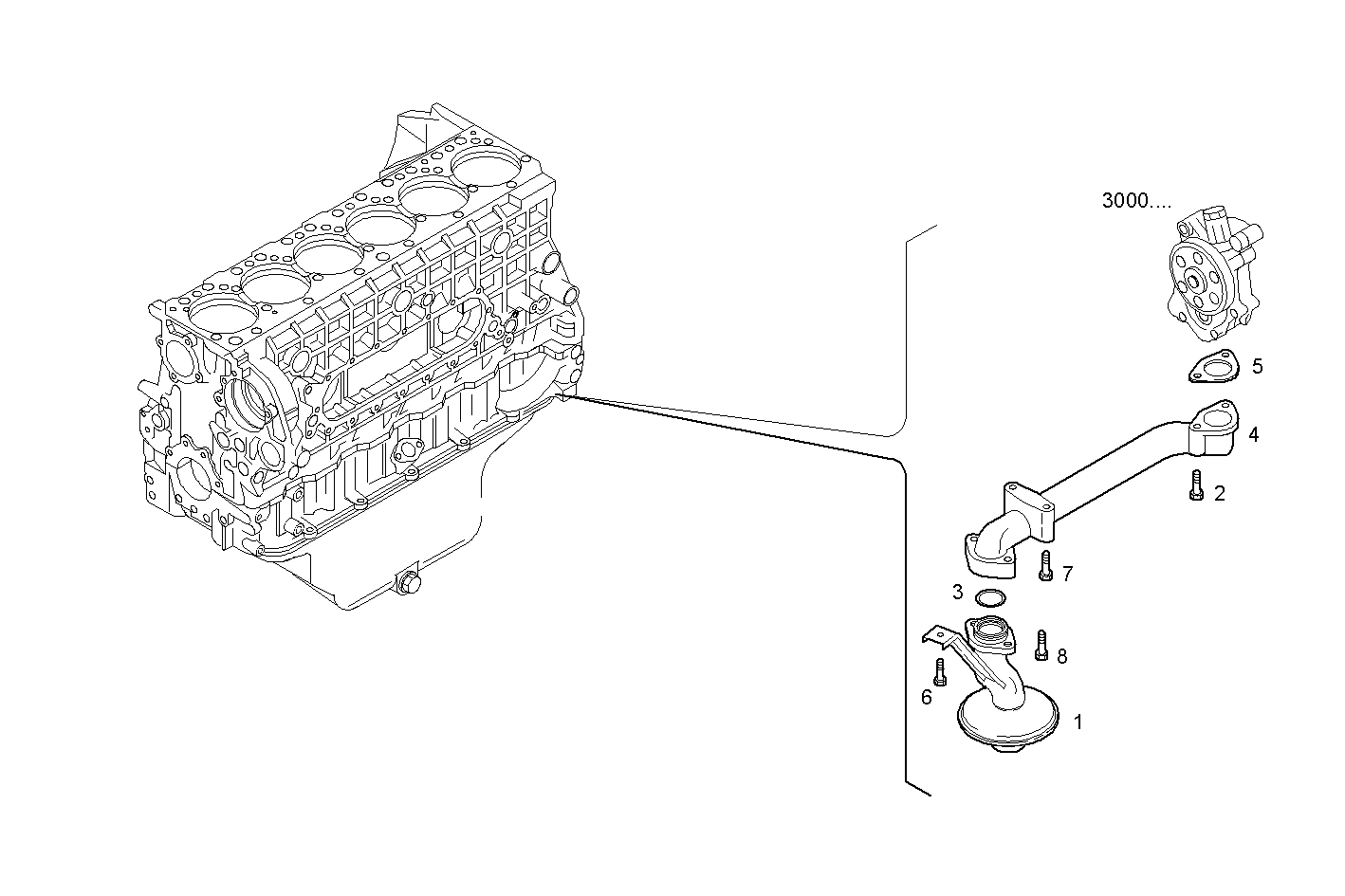

3050.005 SUCTION STRAINER
| Item | Part number | Description |
|---|---|---|
| 1 | 500361099 | SUCTION STRAINER |
| 2 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 3 | 17289481 | O-RING Ø37,69 MM SP=3,53 MM |
| 4 | 99468495 | OIL LINE |
| 5 | 500343518 | FLAT ENGINE GASKET |
| 6 | 16592225 | HEXAGON BOLT M8X55 MM |
| 7 | 16592324 | HEXAGON BOLT M8X60 MM |
| 8 | 16673835 | HEXAGON BOLT M8X30 MM |
