F3AE0684D*B005

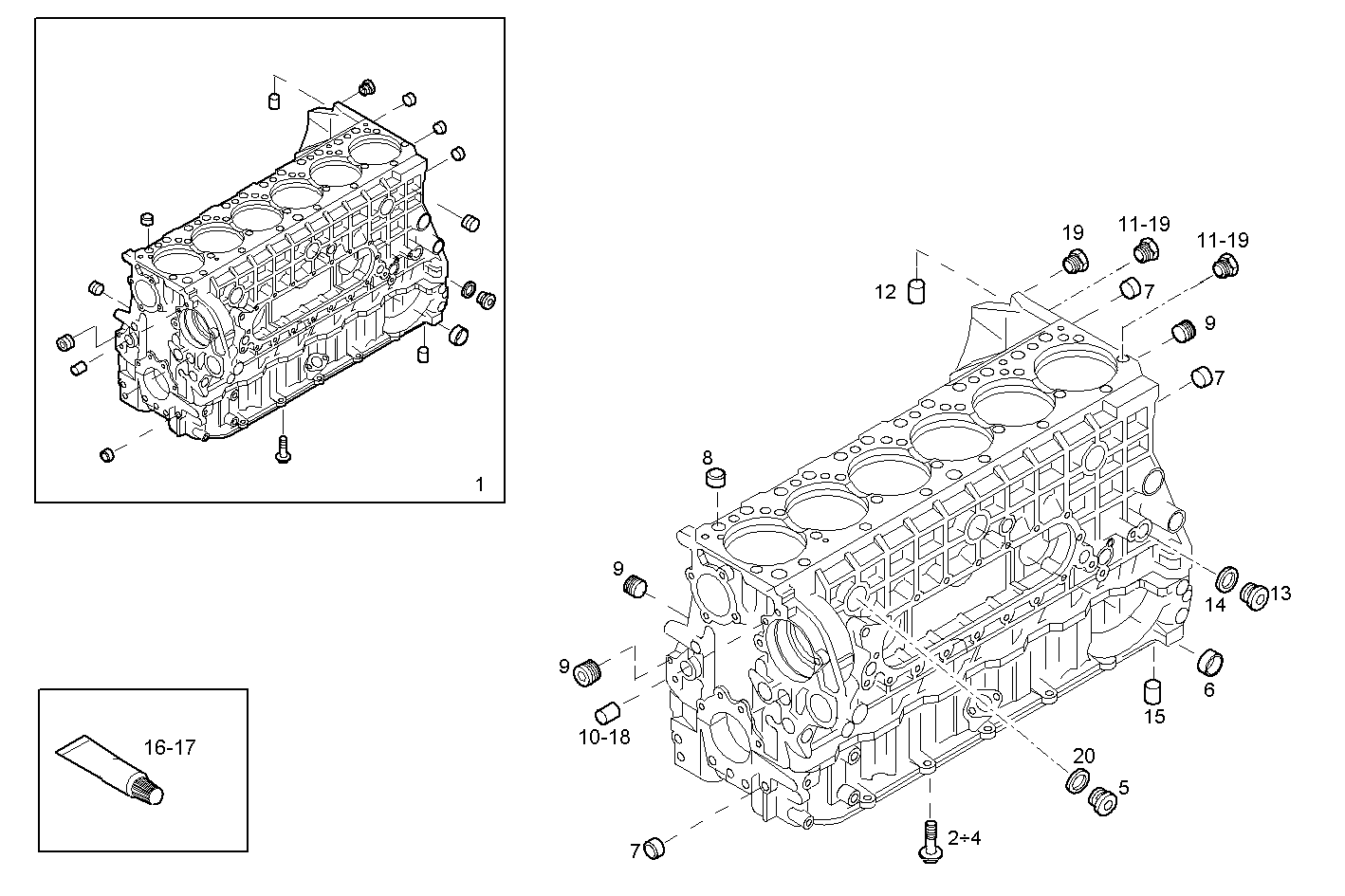

0401.016 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 504105807 CRANKCASE ASSY
2 504108191 HEXAGON BOLT
3 99432869 HEXAGON BOLT M12X125 MM
4 99433863 HEXAGON BOLT M12X58 MM
5 4665029 LOCK PLUG M42X1,5
6 16991370 LOCK PLUG Ø45 MM
7 16990870 LOCK PLUG Ø28 MM
8 16990670 LOCK PLUG Ø22 MM
9 504051238 THREADED PLUG DIAM=3/8"
10 98475100 THREADED PLUG R3/4x12
11 504051237 THREADED PLUG DIAM=1/4"
12 500368916 OIL NOZZLE
13 16992415 THREADED PLUG M16X1,5
14 99489019 WASHER Ø16X24 MM SP=1,5 MM
15 99467554 DOWEL PIN Ø14 MM
16 2995644 ADHESIVE/STICKER
17 2992695 ADHESIVE/STICKER LOCTITE
18 504120669 LOCK PLUG M24X1,5 [FROM # 44746]
19 500356932 LOCK PLUG Ø12 MM
20 99469382 SEAL GASKET D=42x50x2
