F3AE0684D*B005

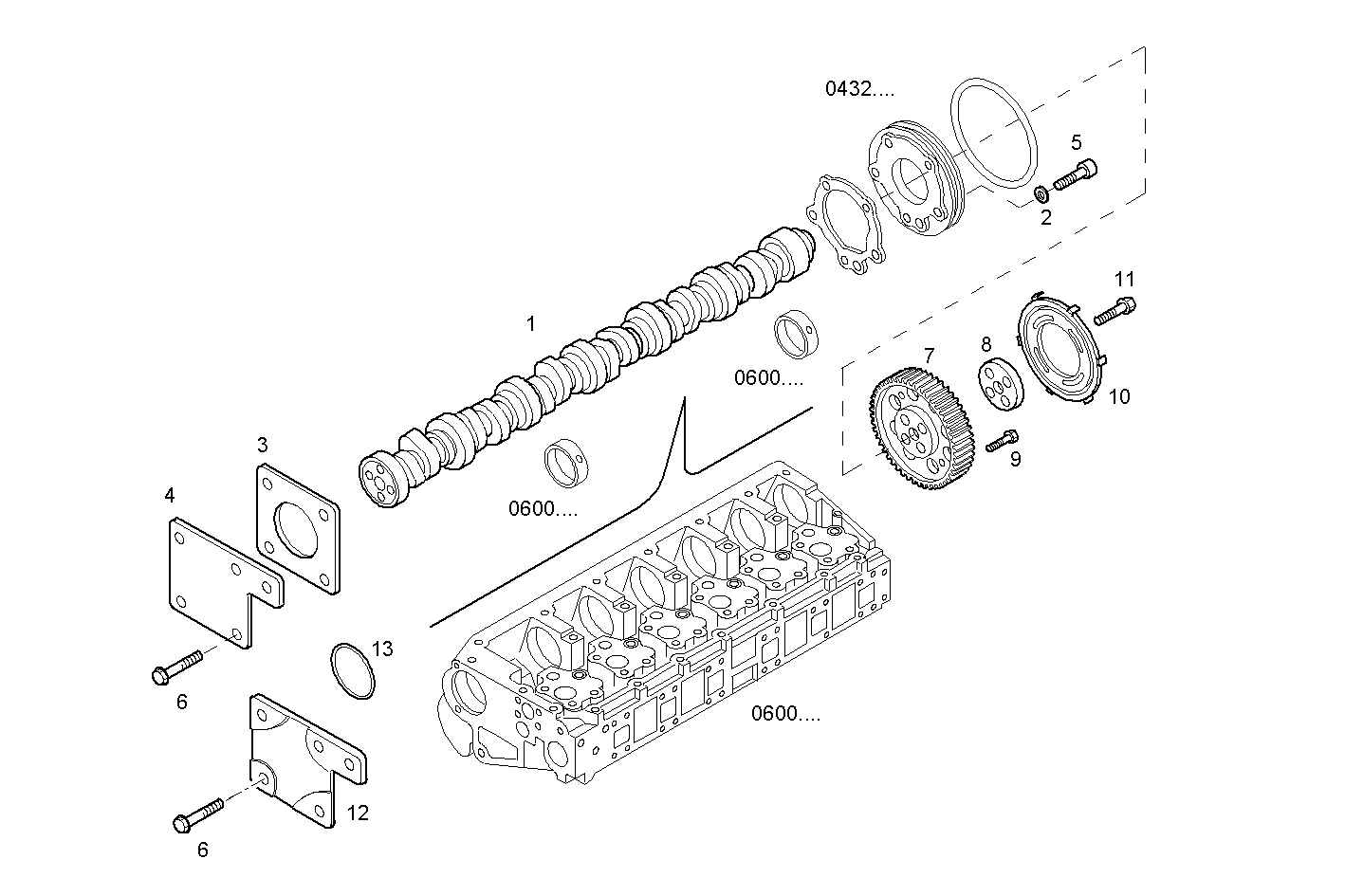

1250.096 TIMING PARTS
Item | Part number | Description |
---|---|---|
1 | 500333869 | CAMSHAFT |
2 | 17096824 | WASHER Ø8,40X15 MM |
3 | 500370033 | FLAT ENGINE GASKET [UP TO # 73308] |
4 | 500370032 | COVER [UP TO # 73308] |
5 | 16690625 | CYLIND-HEAD SCREW M8X25 MM |
6 | 16587125 | HEXAGON BOLT M10X25 MM |
7 | 99450035 | CAMSHAFT PINION |
8 | 98496024 | SPACING BAR |
9 | 99431774 | BIG-END BOLT |
10 | 500336396 | PLATE |
11 | 500397562 | HEXAGON BOLT M6X1X22 MM |
12 | 504204255 | COVER [FROM # 73309] |
13 | 17290781 | O-RING Ø78,97X3,53 MM |
