F3AE0684D*B006

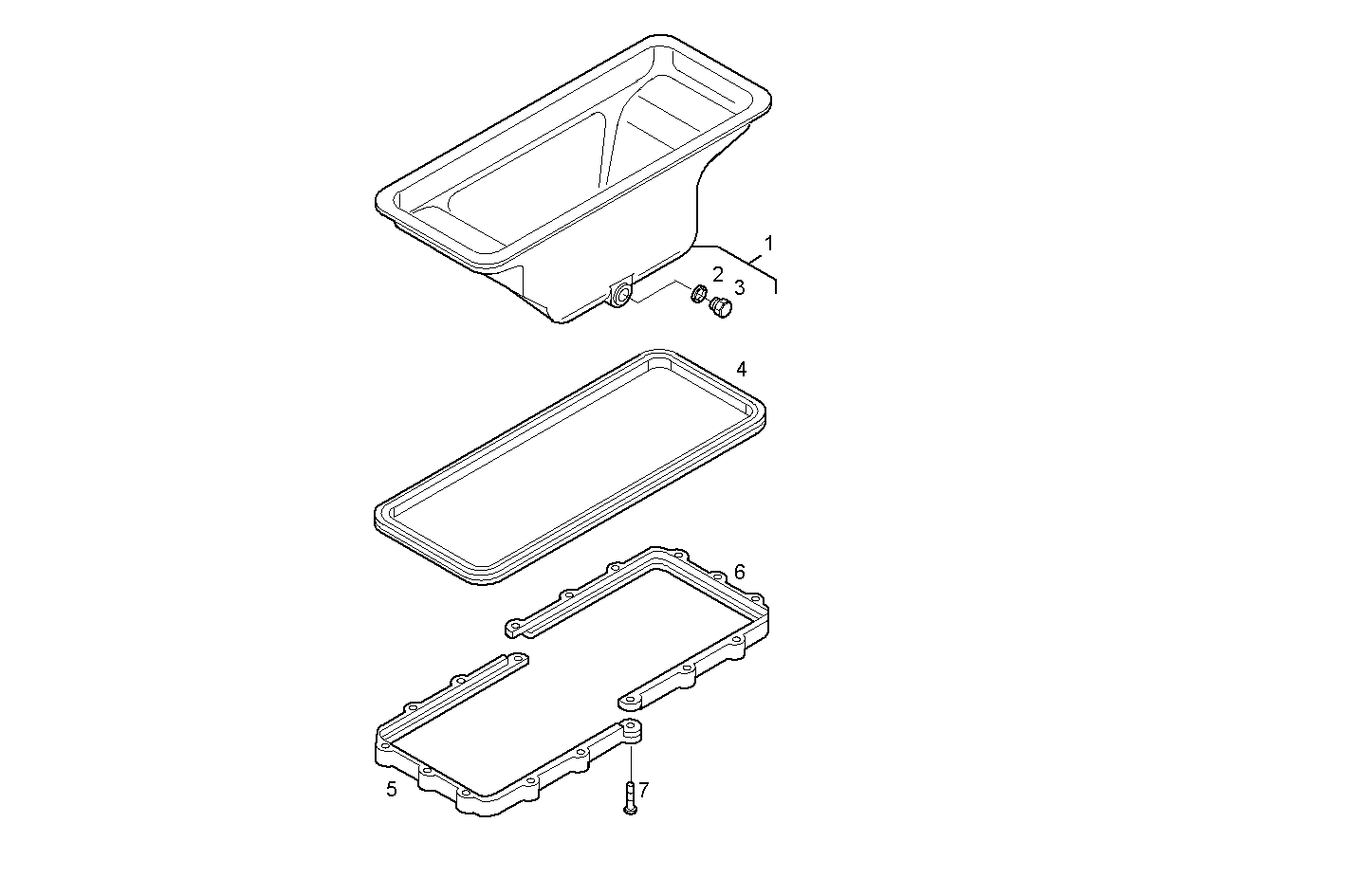

0420.193 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 500348787 OIL SUMP ASSY
2 99489022 SEAL GASKET Ø22X30 MM SP=1,5 MM
3 16992611 THREADED PLUG M22X1,5
4 504028001 OIL SUMP GASKET
5 99468498 SPACING BAR
6 99468497 SPACING BAR
7 16587525 HEXAGON BOLT M10X45 MM
