F3AE0684D*B102

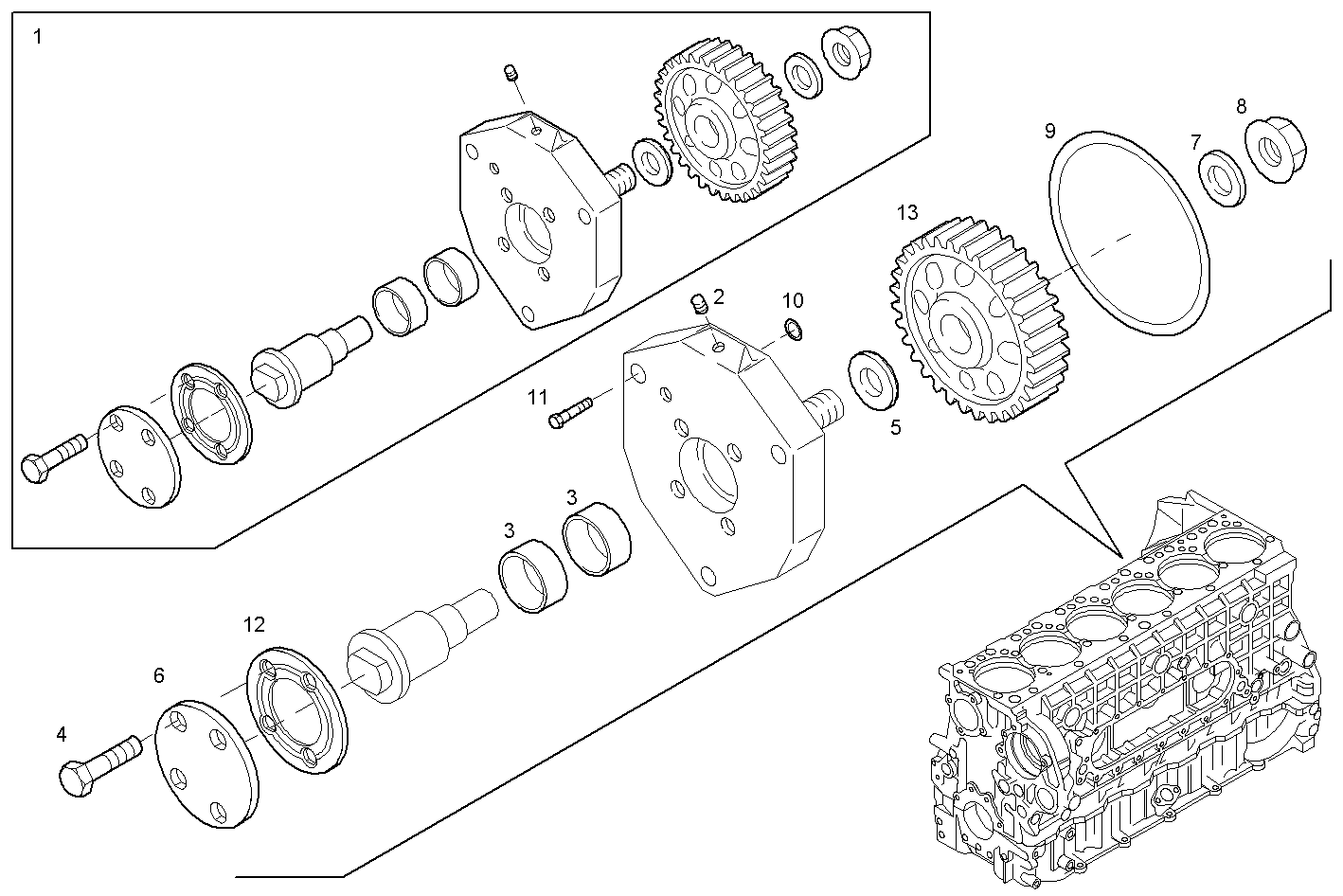

3500.063 POWER TAKE OFF
Item | Part number | Description |
---|---|---|
1 | 504057522 | POWER TAKE OFF ASSY |
2 | 504051236 | THREADED PLUG DIAM=1/8" |
3 | 4788087 | BUSH VANDERVELL |
4 | 18139424 | HEXAGON BOLT M10X20 MM |
5 | 500351319 | WASHER |
6 | 500355019 | COVER |
7 | 500382574 | WASHER |
8 | 17046231 | NUT M20 |
9 | 17292281 | O-RING Ø126,59 MM SP=3,53 MM |
10 | 17281381 | O-RING Ø9,19 MM [FROM TO # 62977] |
11 | 16588324 | HEXAGON BOLT |
12 | 500355018 | FLAT ENGINE GASKET |
13 | 500382573 | PTO GEAR |
