F3AE0684D*B102

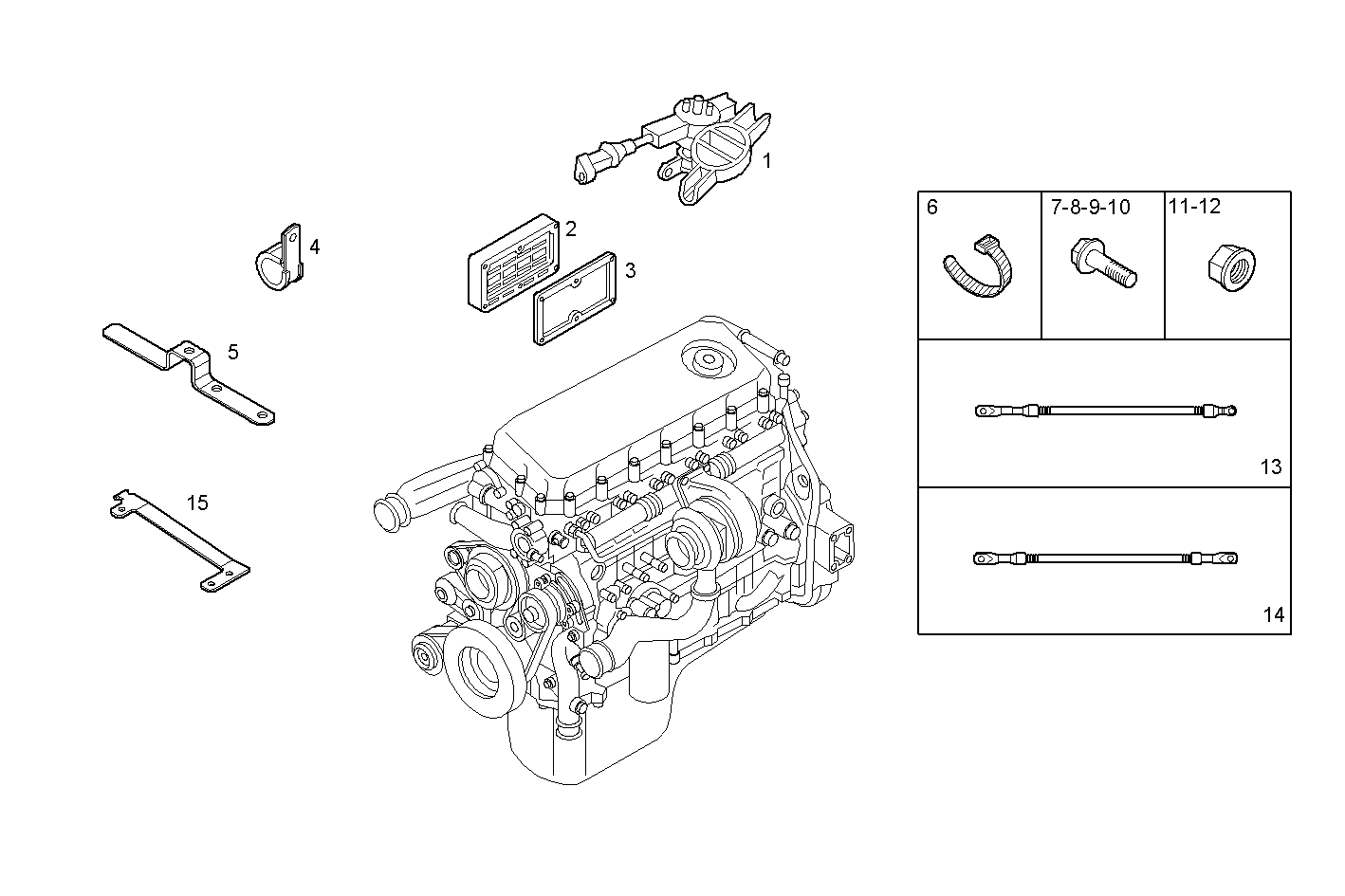

3650.002 THERMO-STARTER
| Item | Part number | Description |
|---|---|---|
| 1 | 99449300 | RELAY 24v-150a |
| 2 | 99437042 | RESISTOR |
| 3 | 504026624 | FLAT ENGINE GASKET |
| 4 | 10450990 | PIPE CLIP |
| 5 | 41207689 | SUPPORT |
| 6 | 99455033 | CLIP |
| 7 | 16592225 | HEXAGON BOLT M8X55 MM |
| 8 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 9 | 16585625 | HEXAGON BOLT M6X12 |
| 10 | 16597925 | HEXAGON BOLT M8X14 MM |
| 11 | 17044625 | HEXAGON NUT M6 |
| 12 | 16750225 | HEXAGON NUT M8 |
| 13 | 504119997 | WIRE/CABLE |
| 14 | 504206835 | WIRE/CABLE |
| 15 | 41207815 | SUPPORT |
