F3AE0684E*B002

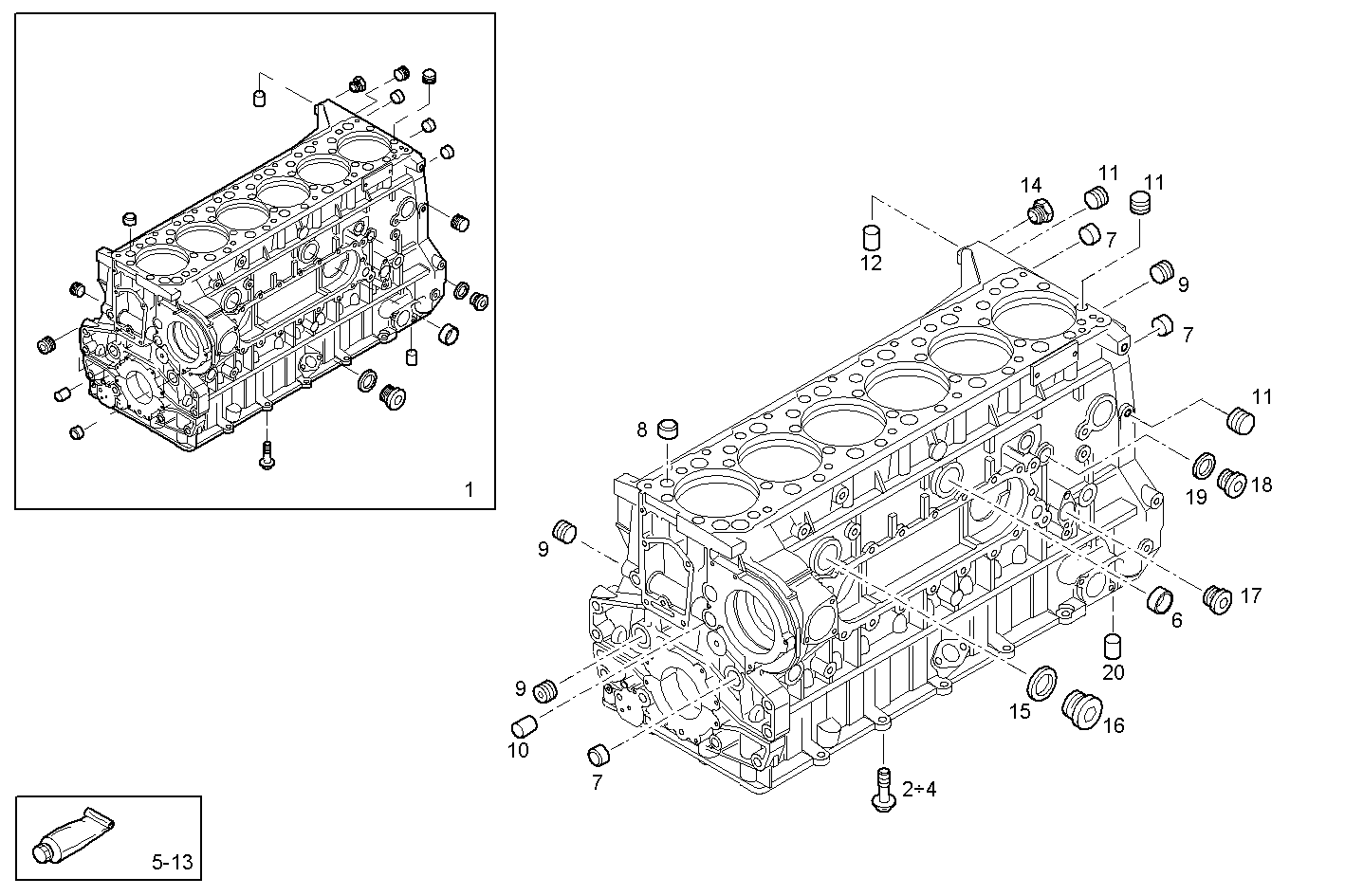

0401.050 CRANKCASE
| Item | Part number | Description |
|---|---|---|
| 1 | 504034507 | CRANKCASE ASSY |
| 2 | 99430335 | HEXAGON BOLT |
| 3 | 99432869 | HEXAGON BOLT M12X125 MM |
| 4 | 99433863 | HEXAGON BOLT M12X58 MM |
| 5 | 1903673 | ADHESIVE/STICKER LOCTITE |
| 6 | 16991370 | LOCK PLUG Ø45 MM |
| 7 | 16990870 | LOCK PLUG Ø28 MM |
| 8 | 16990570 | LOCK PLUG Ø20 MM |
| 9 | 98474481 | THREADED PLUG |
| 10 | 98475100 | THREADED PLUG R3/4x12 |
| 11 | 98472271 | THREADED PLUG |
| 12 | 500368916 | OIL NOZZLE |
| 13 | 93162429 | ADHESIVE/STICKER LOCTITE |
| 14 | 99433597 | THREADED PLUG M12X16 MM |
| 15 | 99469382 | SEAL GASKET D=42x50x2 |
| 16 | 4665029 | LOCK PLUG M42X1,5 |
| 17 | 99430692 | THREADED PLUG 1/2'' |
| 18 | 16992411 | THREADED PLUG M16X1,5 |
| 19 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 20 | 99467554 | DOWEL PIN Ø14 MM |
