F3AE0684E*B002

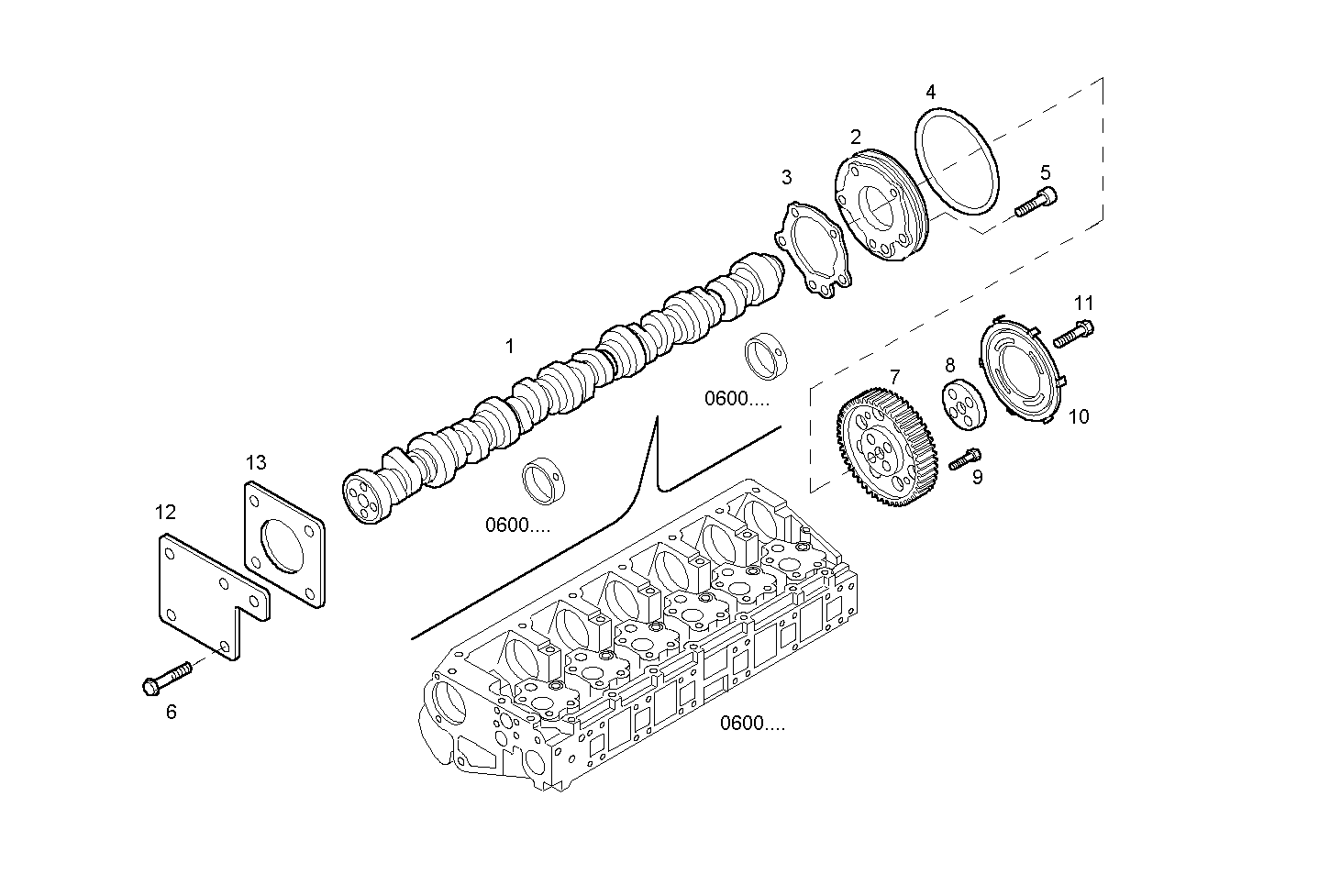

1250.080 TIMING PARTS

Iveco/FPT TIMING PARTS

Item Part number Description
1 500333869 CAMSHAFT
2 500322294 SPACER RING
3 99448739 FLAT ENGINE GASKET
4 17292381 O-RING Ø129,8 MM SP=3,53 MM
5 16690625 CYLIND-HEAD SCREW M8X25 MM
6 16587125 HEXAGON BOLT M10X25 MM
7 99450035 CAMSHAFT PINION
8 98496024 SPACING BAR
9 99431774 BIG-END BOLT
10 500336396 PLATE
11 500397562 HEXAGON BOLT M6X1X22 MM
12 500370032 COVER [UP TO # 73308]
13 500370033 FLAT ENGINE GASKET [UP TO # 73308]
14 17096824 WASHER Ø8,40X15 MM
