F3AE0684E*B002

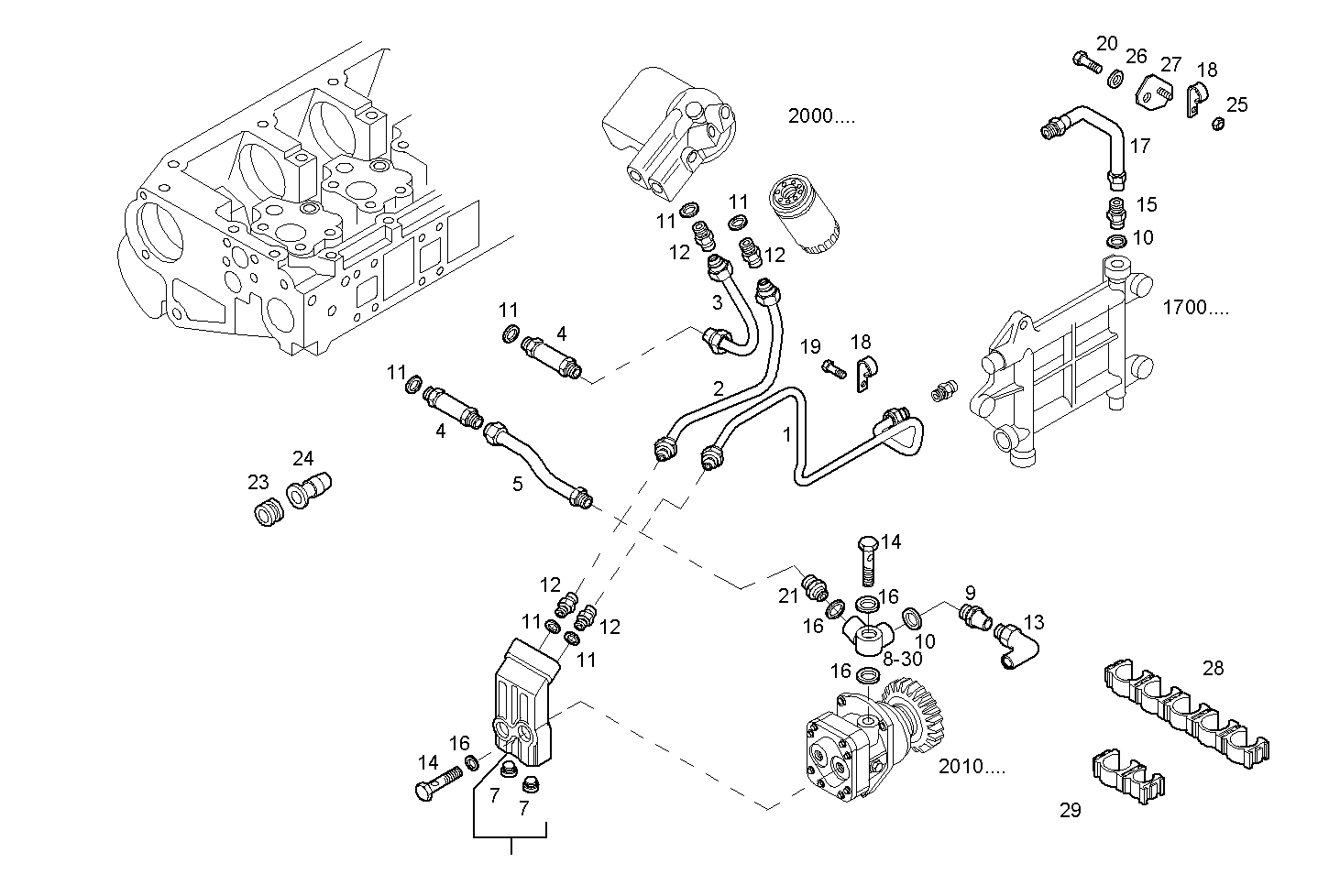

2030.187 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 504043312 FUEL LINE
2 500348310 FUEL LINE
3 500348313 FUEL LINE
4 500310076 PIPE SOCKET M16X1,5 - M18X1,5
5 500348301 FUEL LINE
6 500314313 PIPE SOCKET ASSY
7 504051237 THREADED PLUG DIAM=1/4"
8 500348306 PIPE SOCKET
9 500328251 VALVE 0,2-0,3 BAR
10 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
11 99489019 WASHER Ø16X24 MM SP=1,5 MM
12 41031569 THREADED UNION M16X1,5 - M18X1,5 MM"
13 500350162 ELBOW COUPLING
14 4864084 BANJO BOLT M16X1,5
15 1244661 THREADED UNION M14X1,5 - M18X1,5
16 98474309 WASHER Ø16X24 MM SP=1,9 MM
17 500390069 FUEL LINE
18 17316592 PIPE CLIP
19 16597925 HEXAGON BOLT M8X14 MM
20 1112655 HEXAGON BOLT M16x20 MM
21 16500315 THREADED UNION M16X1,5 - M18X1,5
22 16507614 WASHER
23 16510240 WASHER Ø12 MM
24 16512540 BUSH
25 17044725 HEXAGON NUT M8
26 17798674 SPRING WASHER
27 41213491 RETAINER
28 500306941 SPRING CLAMP
29 500373006 SPRING CLAMP
30 504040951 PIPE SOCKET [UP TO # 38208]
