F3AE0684E*B002

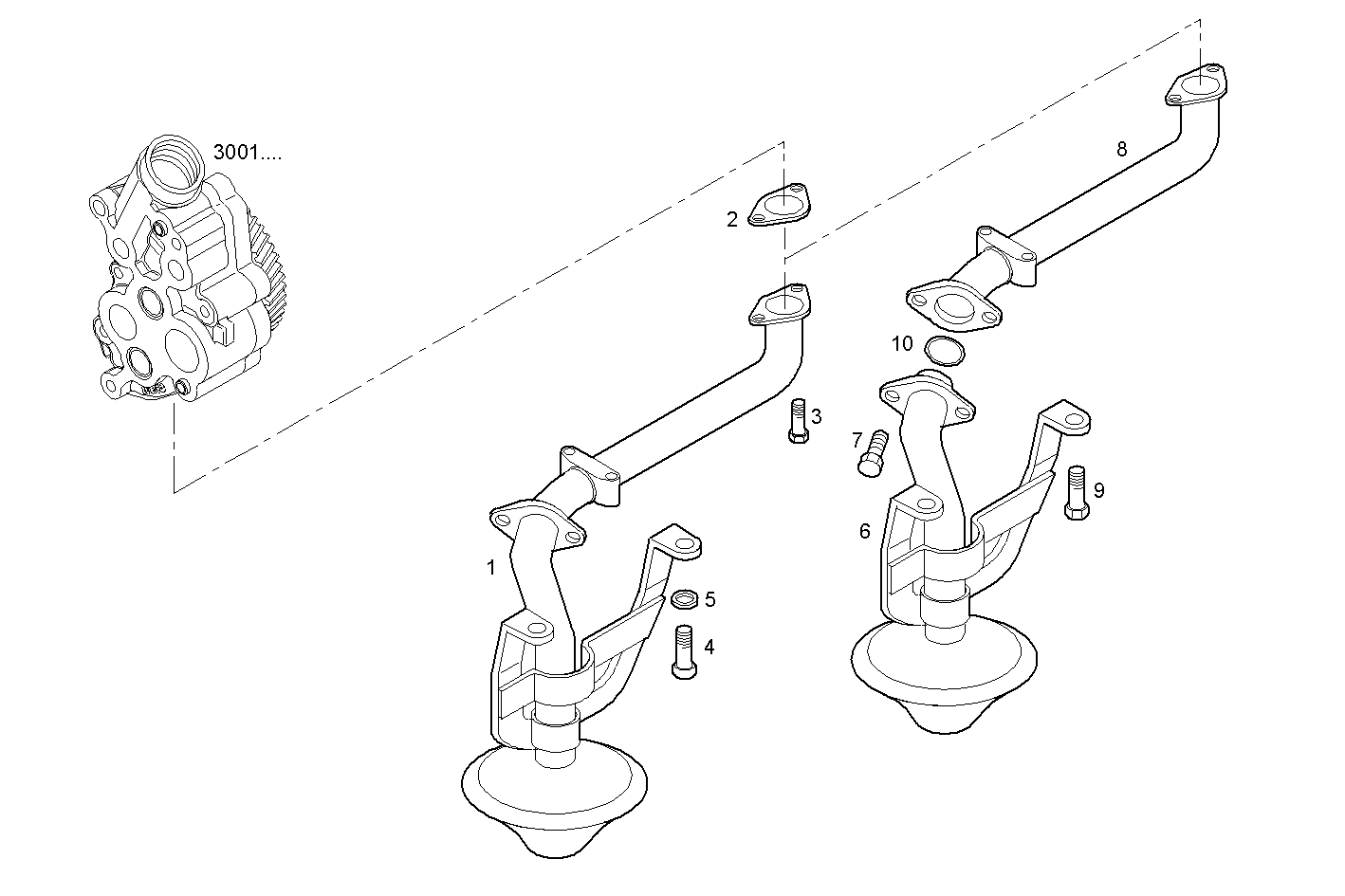

3050.021 SUCTION STRAINER
| Item | Part number | Description |
|---|---|---|
| 1 | 504021761 | OIL SUCTION PIPE [FROM # 76288] |
| 2 | 500343518 | FLAT ENGINE GASKET |
| 3 | 16592225 | HEXAGON BOLT M8X55 MM |
| 4 | 16690424 | CYLIND-HEAD SCREW M8X1,25X16 MM |
| 5 | 17096824 | WASHER Ø8,40X15 MM |
| 6 | 500382437 | OIL SUCTION PIPE [UP TO # 76287] |
| 7 | 18138325 | HEXAGON BOLT M8X16 MM |
| 8 | 99485384 | OIL LINE [UP TO # 76287] |
| 9 | 16592324 | HEXAGON BOLT M8X60 MM |
| 10 | 17289481 | O-RING Ø37,69 MM SP=3,53 MM |
