F3AE0684E*B002

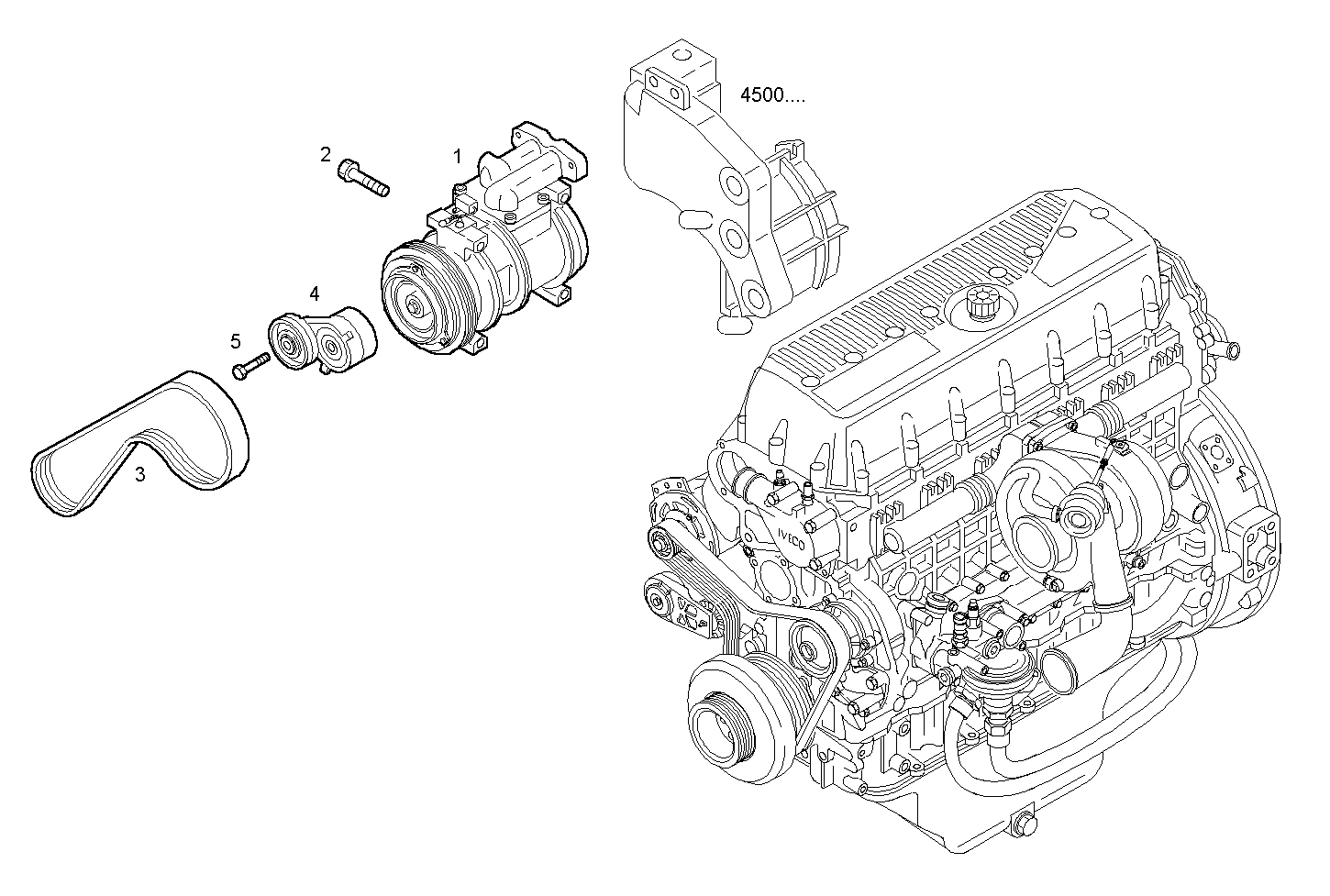

3900.007 COMPRESSOR AIR CONDITIONING
| Item | Part number | Description |
|---|---|---|
| 1 | 504078610 | AIR COND.COMPRESS. ASSY |
| 2 | 16598224 | HEXAGON BOLT M8X90 MM |
| 3 | 504020489 | BELT |
| 4 | 500350419 | BELT TENSIONER |
| 5 | 16592424 | HEXAGON BOLT M8X65 MM |
