F3AE0684E*B006

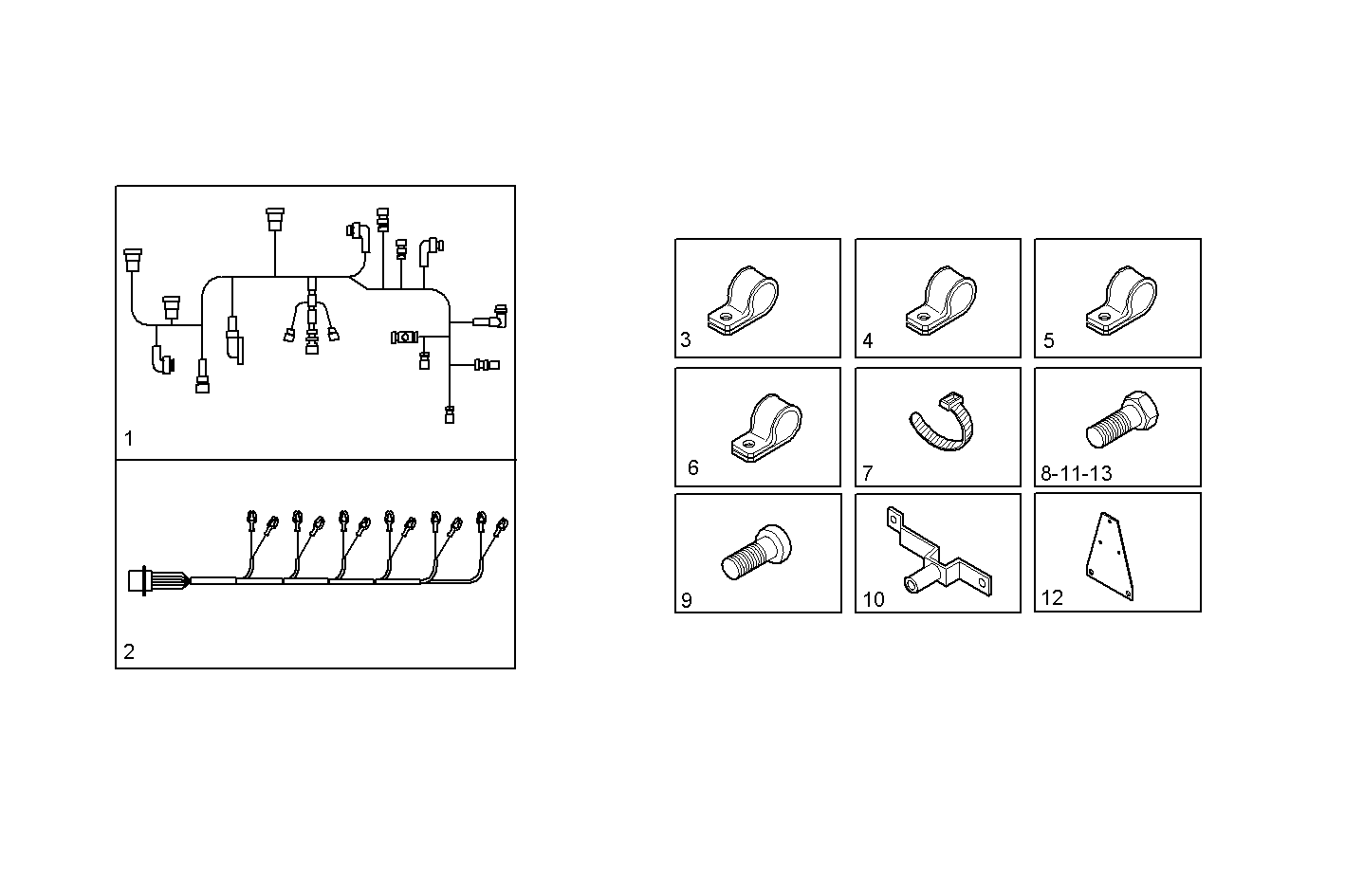

1730.036 ENGINE CABLE
| Item | Part number | Description |
|---|---|---|
| 1 | 504074629 | SET OF WIRING [FROM # 51405] |
| 2 | 504009221 | WIRE/CABLE FOR INJECTORS |
| 3 | 10450990 | PIPE CLIP |
| 4 | 17310001 | FASTENING BRACKET Ø4 MM |
| 5 | 17310401 | FASTENING BRACKET Ø8 MM |
| 6 | 17310501 | FASTENING BRACKET Ø10 MM |
| 7 | 42099097 | CABLE STRAP |
| 8 | 11612224 | HEXAGON BOLT M6X12 MM |
| 9 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
| 10 | 500371778 | FASTENING BRACKET |
| 11 | 16592225 | HEXAGON BOLT M8X55 MM |
| 12 | 504067009 | RETAINER |
| 13 | 16596924 | HEXAGON BOLT M6X10 MM |
| 14 | 504056458 | SET OF WIRING |
