F3AE0684G*B003

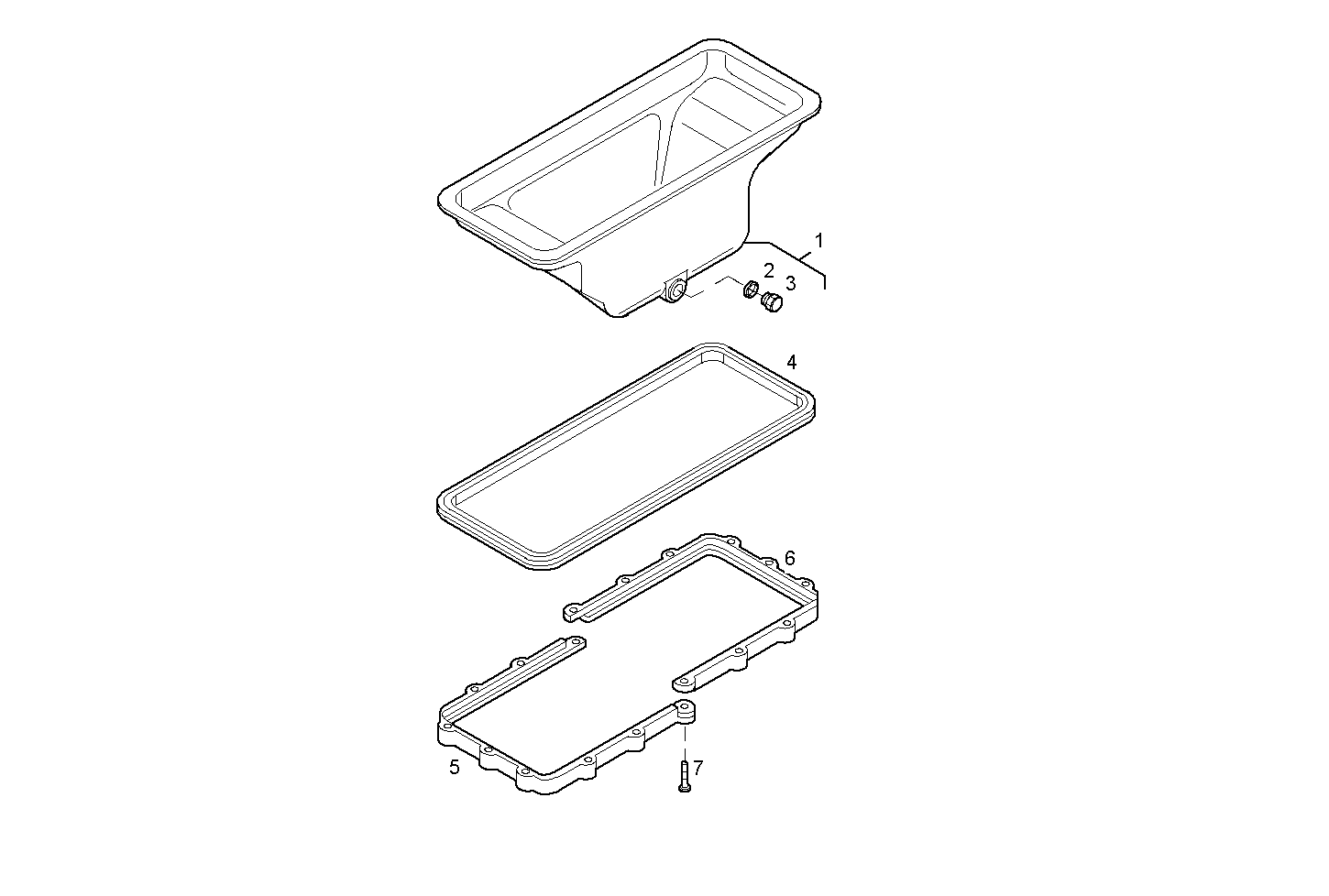

0420.179 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 500348787 | OIL SUMP ASSY |
| 2 | 99489022 | SEAL GASKET Ø22X30 MM SP=1,5 MM |
| 3 | 16992611 | THREADED PLUG M22X1,5 |
| 4 | 504028001 | OIL SUMP GASKET |
| 5 | 99468498 | SPACING BAR |
| 6 | 99468497 | SPACING BAR |
| 7 | 16587525 | HEXAGON BOLT M10X45 MM |
