F3AE0684G*B003

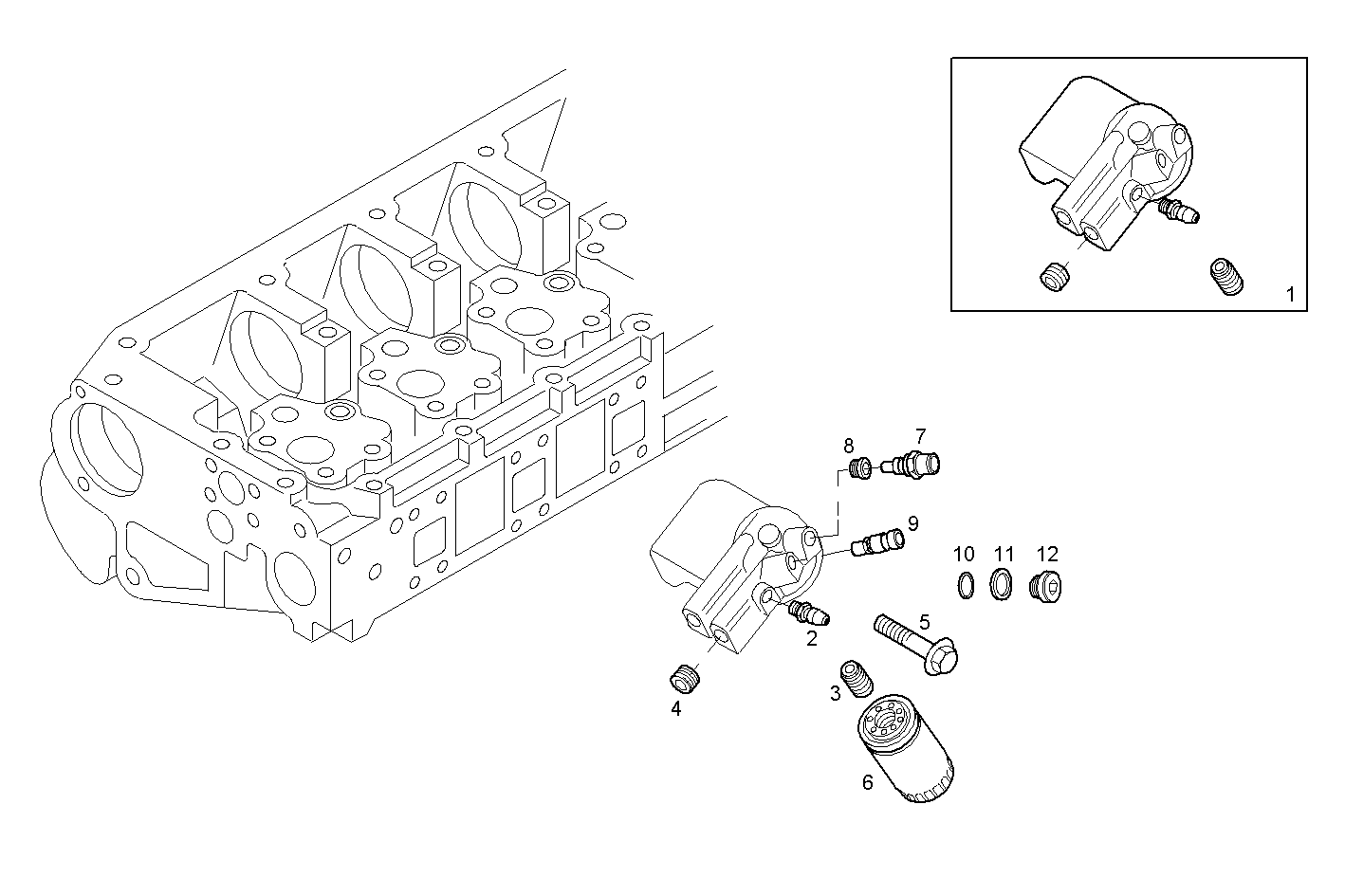

2000.121 FUEL FILTER
Item | Part number | Description |
---|---|---|
1 | 504046809 | FUEL FILT.SUPPORT ASSY |
2 | 500304562 | BREATHER PLUG |
3 | 98498837 | THREADED UNION M14X1,5 - M16X1,5 |
4 | 504051237 | THREADED PLUG DIAM=1/4" |
5 | 16675835 | HEXAGON BOLT M10X30 MM |
6 | 2994048 | FUEL FILTER ELEM. |
7 | 500382599 | TEMP. TRANSMITTER PRESS. & TEMPER. |
8 | 504035912 | THREADED UNION |
9 | 500346074 | TRANSMITTER Pressure |
10 | 17281381 | O-RING Ø9,19 MM [FROM TO # 62977] |
11 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
12 | 504084571 | THREADED PLUG |
