F3AE0684G*B003

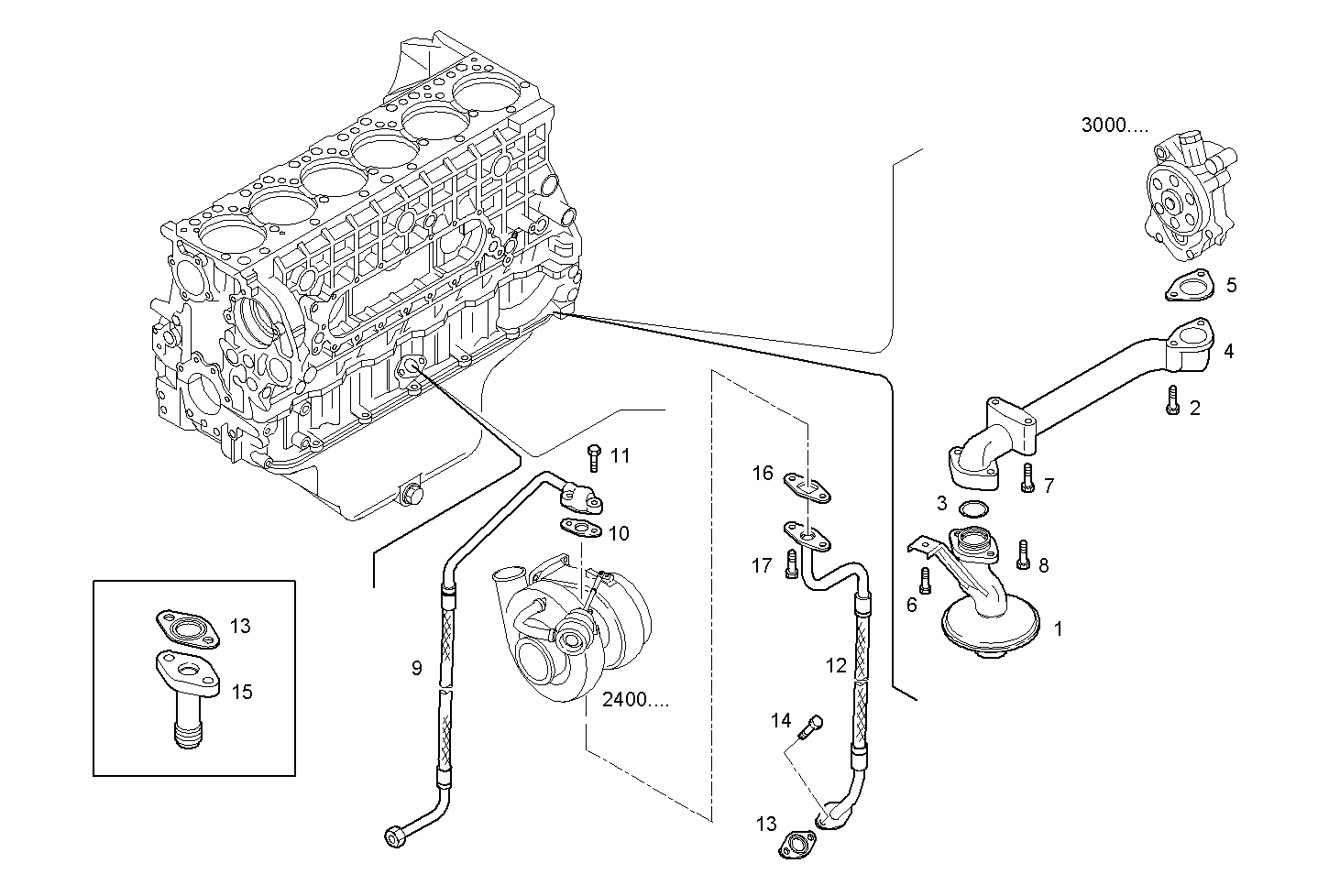

3010.183 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 500361099 | SUCTION STRAINER |
| 2 | 18138325 | HEXAGON BOLT M8X16 MM |
| 3 | 17289481 | O-RING Ø37,69 MM SP=3,53 MM |
| 4 | 99468495 | OIL LINE |
| 5 | 500343518 | FLAT ENGINE GASKET |
| 6 | 16592225 | HEXAGON BOLT M8X55 MM |
| 7 | 16592324 | HEXAGON BOLT M8X60 MM |
| 8 | 16673835 | HEXAGON BOLT M8X30 MM |
| 9 | 504037360 | OIL LINE |
| 10 | 61318303 | GASKET |
| 11 | 16586625 | HEXAGON BOLT M8X35 MM |
| 12 | 504013539 | OIL LINE |
| 13 | 99475979 | FLAT ENGINE GASKET |
| 14 | 16586325 | HEXAGON BOLT M8X20 MM |
| 15 | 500333923 | FLANGED SOCKET |
| 16 | 98412509 | FLAT ENGINE GASKET |
| 17 | 16673735 | HEXAGON BOLT M8X25 MM |
