F3AE0684J*B901

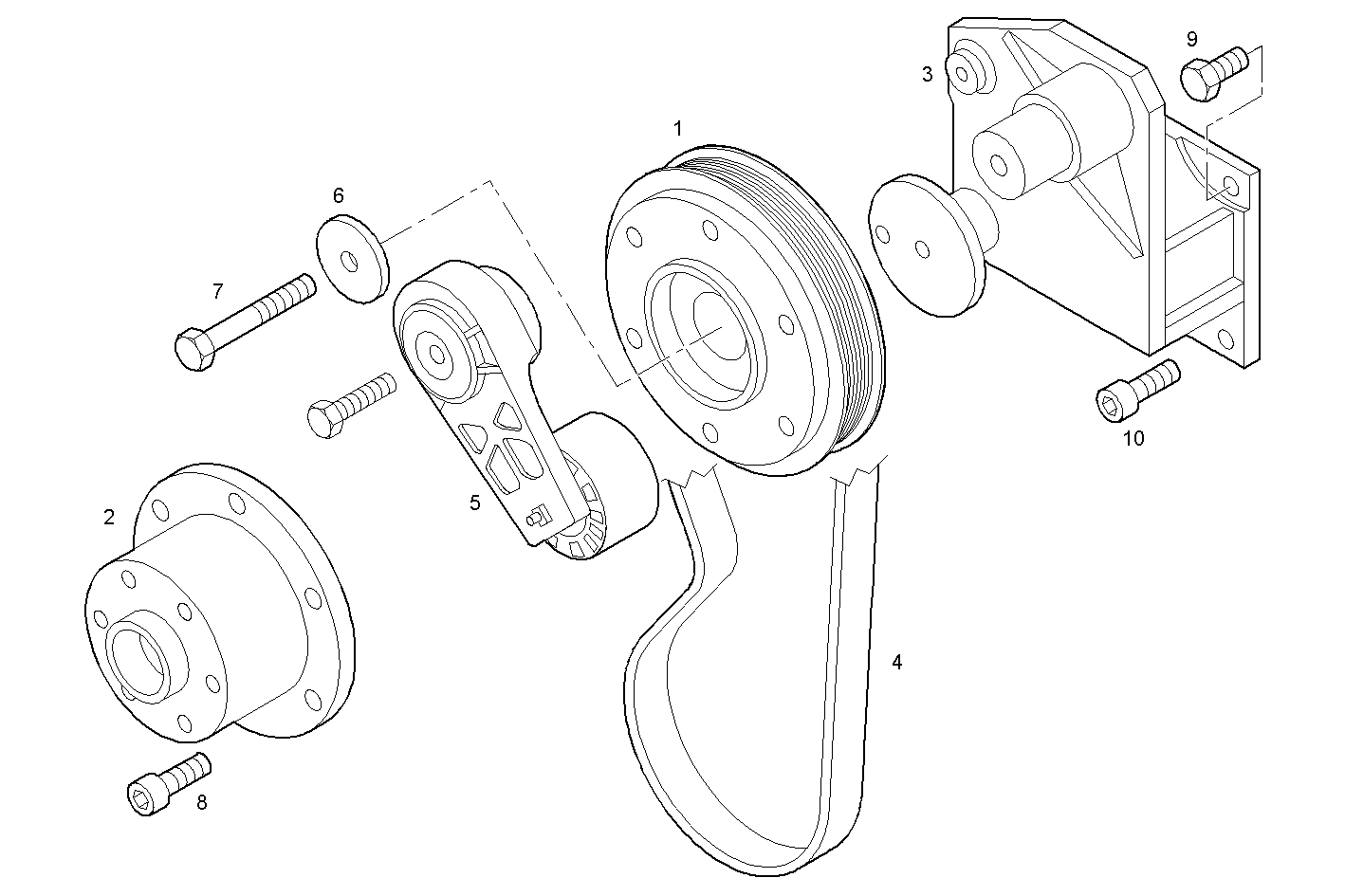

3240.144/02 PULLEYS AND BELTS
Item | Part number | Description |
---|---|---|
1 | 504061279 | PULLEY |
2 | 504068502 | SPACING BAR |
3 | 504068503 | SUPPORT |
4 | 4898546 | V-BELT |
5 | 504028028 | BELT TENSIONER |
6 | 98427590 | WASHER |
7 | 16678834 | HEXAGON BOLT M12X70 MM |
8 | 16710434 | SOCKET-HEAD SCREW M12X1,75X30 MM |
9 | 16629734 | HEXAGON BOLT M12X1,75X25 MM |
