F3AE0684J*B902

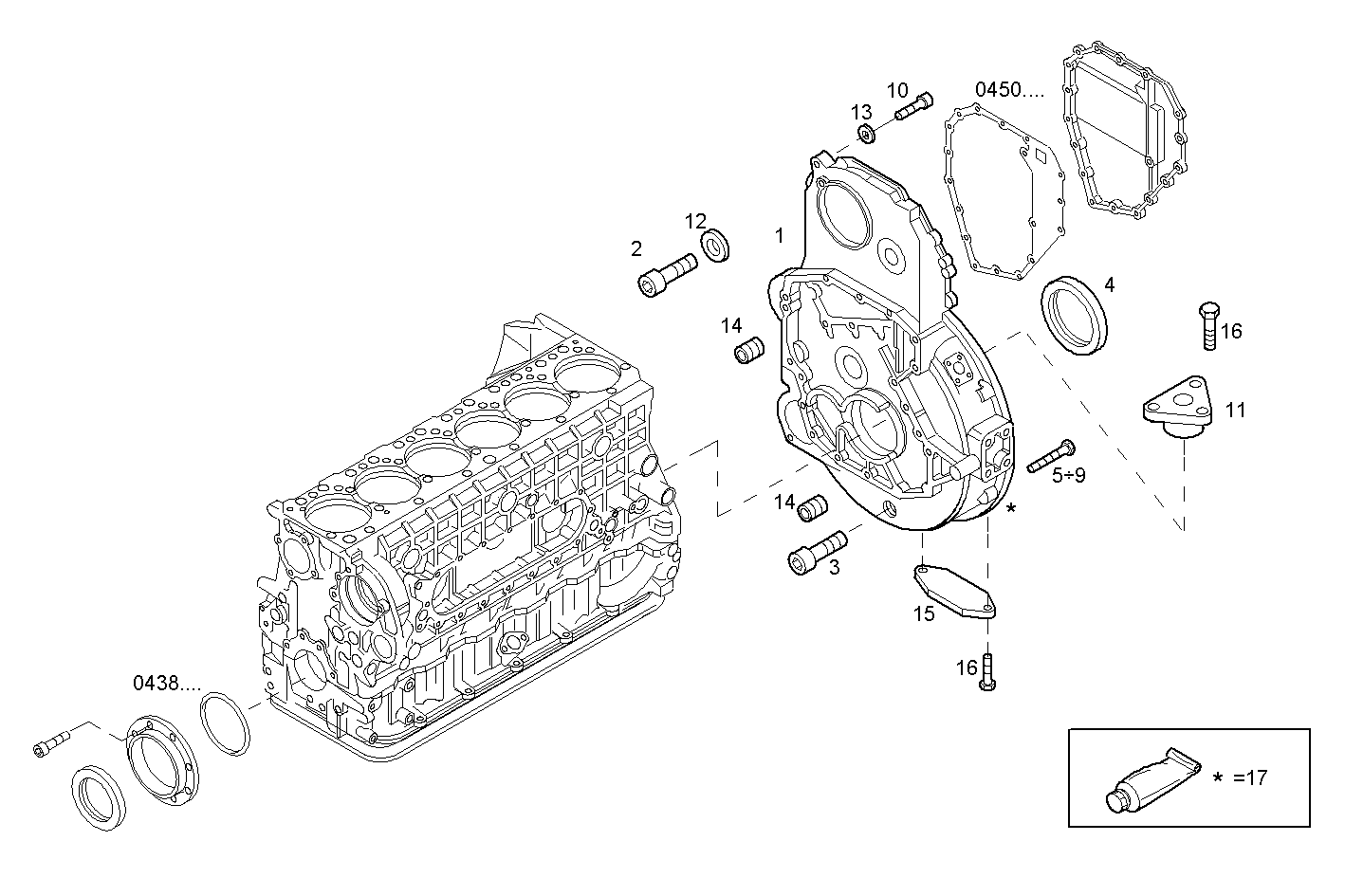

0432.008 REAR C.CASE COVER
| Item | Part number | Description |
|---|---|---|
| 1 | 500310414 | TIMINGGEAR HOUSIN |
| 2 | 61315661 | HEXAGON BOLT M8X30 |
| 3 | 16992911 | THREADED PLUG M 52X2 |
| 4 | 40102693 | SHAFT SEAL |
| 5 | 16593425 | HEXAGON BOLT M12X100 MM |
| 6 | 16677934 | HEXAGON BOLT M12X35 MM |
| 7 | 16593625 | HEXAGON BOLT M12X120 MM |
| 8 | 99475978 | HEXAGON BOLT |
| 9 | 16588825 | HEXAGON BOLT M12X1,25X70 MM |
| 10 | 18139524 | HEXAGON BOLT M10X1,5X30 MM |
| 11 | 99472521 | CONNECTING PLATE |
| 12 | 14496524 | WASHER Ø8X17 MM |
| 13 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 14 | 17275610 | DOWEL PIN |
| 15 | 4851842 | COVER |
| 16 | 16597924 | HEXAGON BOLT M8X14 MM |
| 17 | 1903673 | ADHESIVE/STICKER LOCTITE |
