F3AE0684M*B903

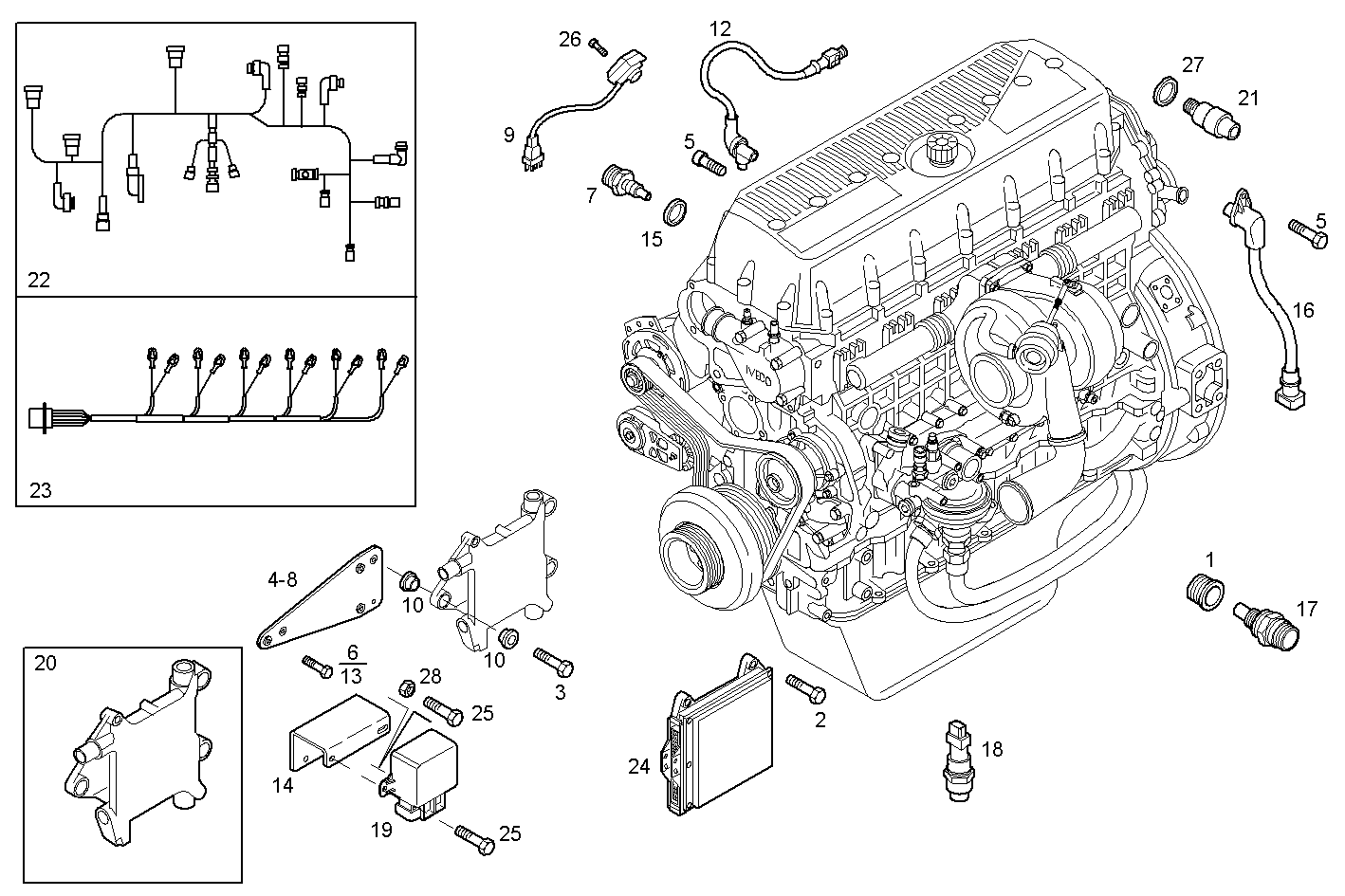

1700.019 ELECTRONIC CONTROL UNIT

Iveco/FPT ELECTRONIC CONTROL UNIT

Item Part number Description
1 504035912 THREADED UNION
2 16673934 HEXAGON BOLT M8X35 MM
3 16586624 HEXAGON BOLT M8X35 MM
4 500398687 SUPPORT [UP TO # 86373]
5 16688924 CYLIND-HEAD SCREW M6X10 MM
6 16600224 HEXAGON BOLT M8X1,25X18 MM
7 98412656 TEMP. TRANSMITTER
8 504079747 RETAINER [FROM # 86374]
9 500360579 SENSOR Pressure
10 98498817 DOWEL
12 99450797 SENSOR camshaft.
13 16586824 HEXAGON BOLT M8X1,25X45 MM
14 504036533 SUPPORT
15 99489019 WASHER Ø16X24 MM SP=1,5 MM
16 500306772 SENSOR crankshaft.
17 500382599 TEMP. TRANSMITTER PRESS. & TEMPER.
18 500386057 TEMP. TRANSMITTER
19 500343161 RELAY
20 500371990 SUPPORT ASSY
21 500346371 CHOCKED FILTER INDIC. FILTRO BLOW-BY
22 504066998 SET OF WIRING
23 500347901 WIRE/CABLE FOR INJECTORS
24 8093994 ELECTR.CONTR.UNIT E.C.U.
25 16585724 HEXAGON BOLT M6X16 MM
26 16597224 HEXAGON BOLT M6X18 MM
27 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
28 17044621 HEXAGON NUT M6
